I8-PC2 Pet Cremator
Contact us for more information
i8-PC2
Download
Data Sheet

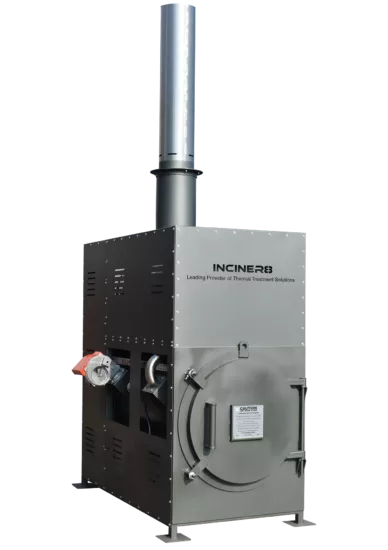

I8-PC2 incinerator is our flagship model for pet cremation services and has been designed to incorporate features specifically for this sector.
The compact design boasts a large diameter front-loading door allowing clear, unimpeded access for the operator.
Overview
The high-capacity cylindrical chamber provides exceptional combustion and is suitable for both communal cremations and the cremation of large-breed pets individually. Advanced control systems regulate a steady air supply to the chamber ensuring optimum fuel and efficiency.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2-VFD Advanced control panel
- Compact design
- Large front loading door
Applications
- Pet Cremation
- Kennels & Catteries
- Cats & Small Dogs
- Veterinary Laboratories
- Dog Waste
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.57m3
Burn Rate*: up to 50kg per hour
Average Fuel Consumption: 15 – 20 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 2080mm
External Width (mm): 1100mm
External Height (mm): 3840mm
Door Size (mm): 0.57 diametermm
Shipping Weight: 2500kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
