I8-55A Agricultural Incinerator
Contact us for more information
i8-55A
Download
Data Sheet

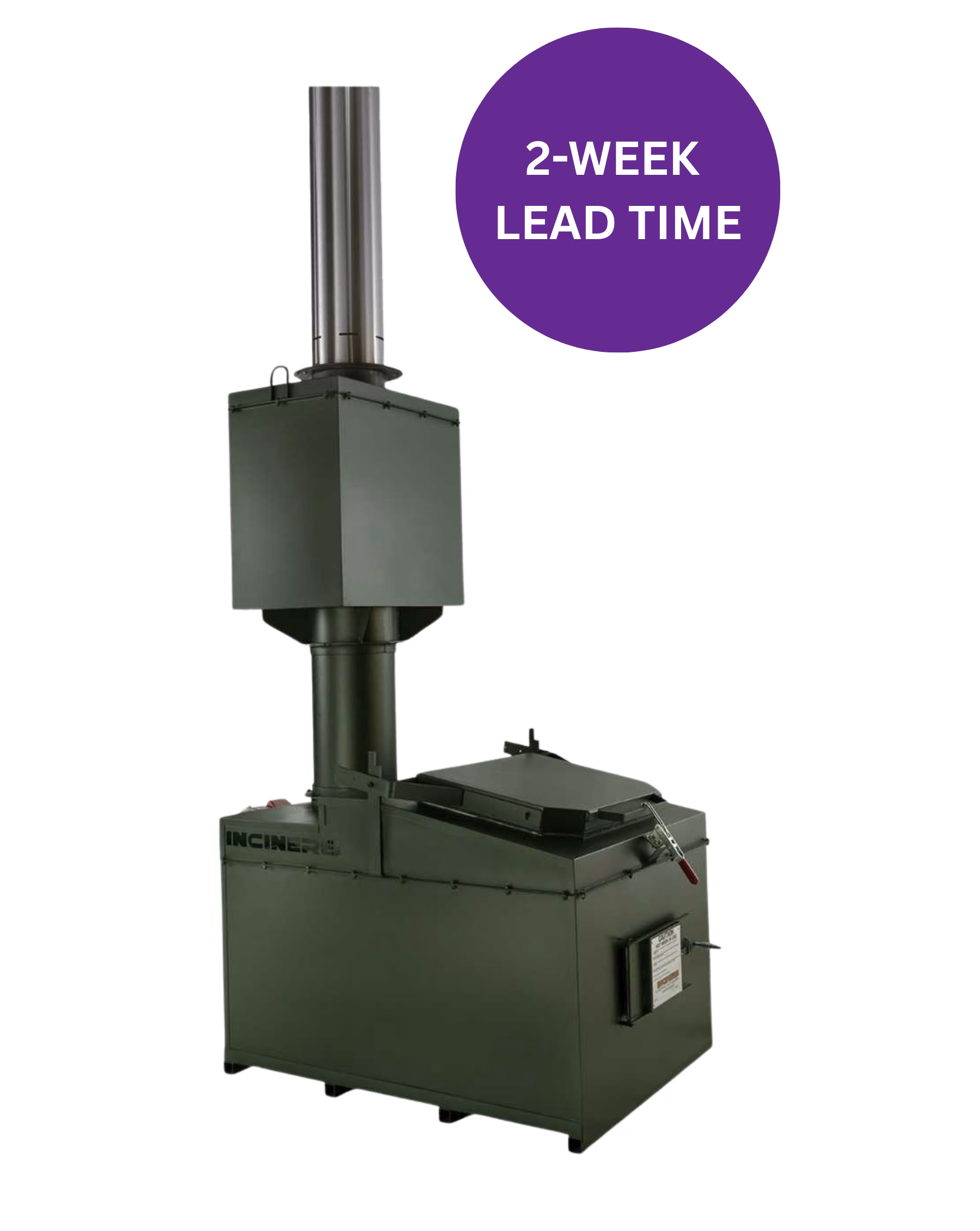

The i8-55A is a medium-capacity animal incinerator from our range of ‘DEFRA Approved’ models, it is suitable for disposing of birds, poultry and large domestic animals with dual function as a pet cremation system.

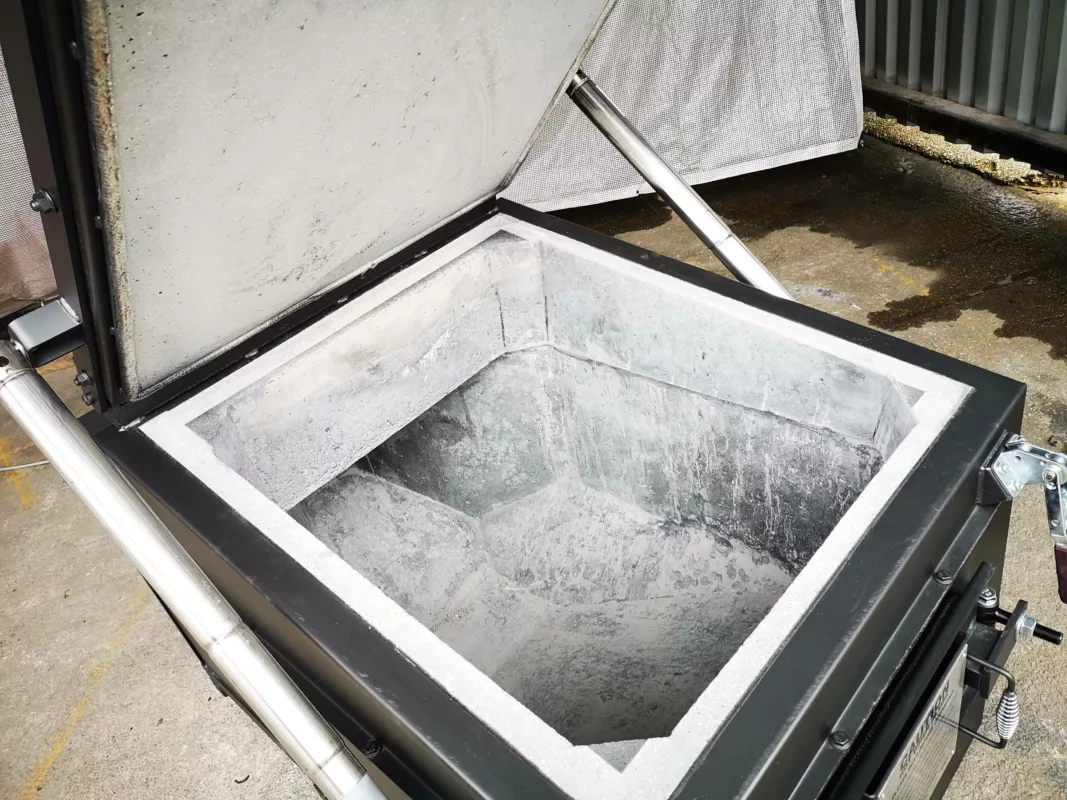

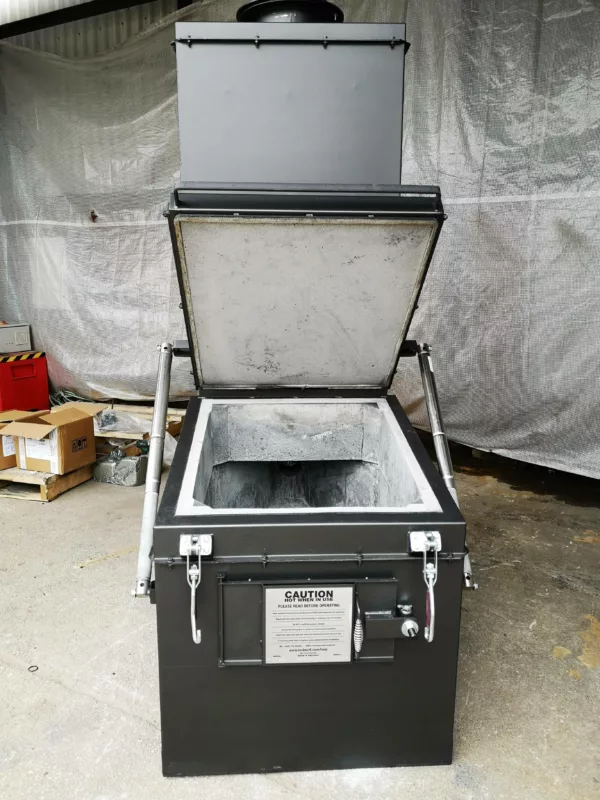

This machine benefits from a simple top-loading door and advanced secondary chamber technology with 2 second retention times that meet DEFRA guidelines. The top-loading design is the perfect choice if you need liquid retention making this machine ideal for incineration for almost all types of animal waste.
Overview
The i8-55A is one of our most popular models due to its complete flexibility and customisable options. we describe it as our most versatile agricultural incinerator and lends itself to a wide variety of uses. The top-loading design allows for easy waste disposal and means liquids are well retained during combustion.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Modular refractory lining
Applications
- Poultry Farms
- Butcheries
- Veterinary Laboratories
- Animal Research Centers
- Slaughterhouse < 500 kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.54m3
Burn Rate*: up to 50kg per hour
Average Fuel Consumption: 11 – 13 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1520mm
External Width (mm): 920mm
External Height (mm): 4480mm
Door Size (mm): 720 x 830
Shipping Weight: 2100kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Optional Extras
Configuration Choices
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
