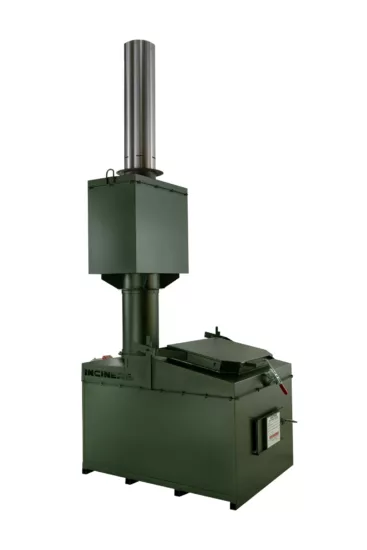

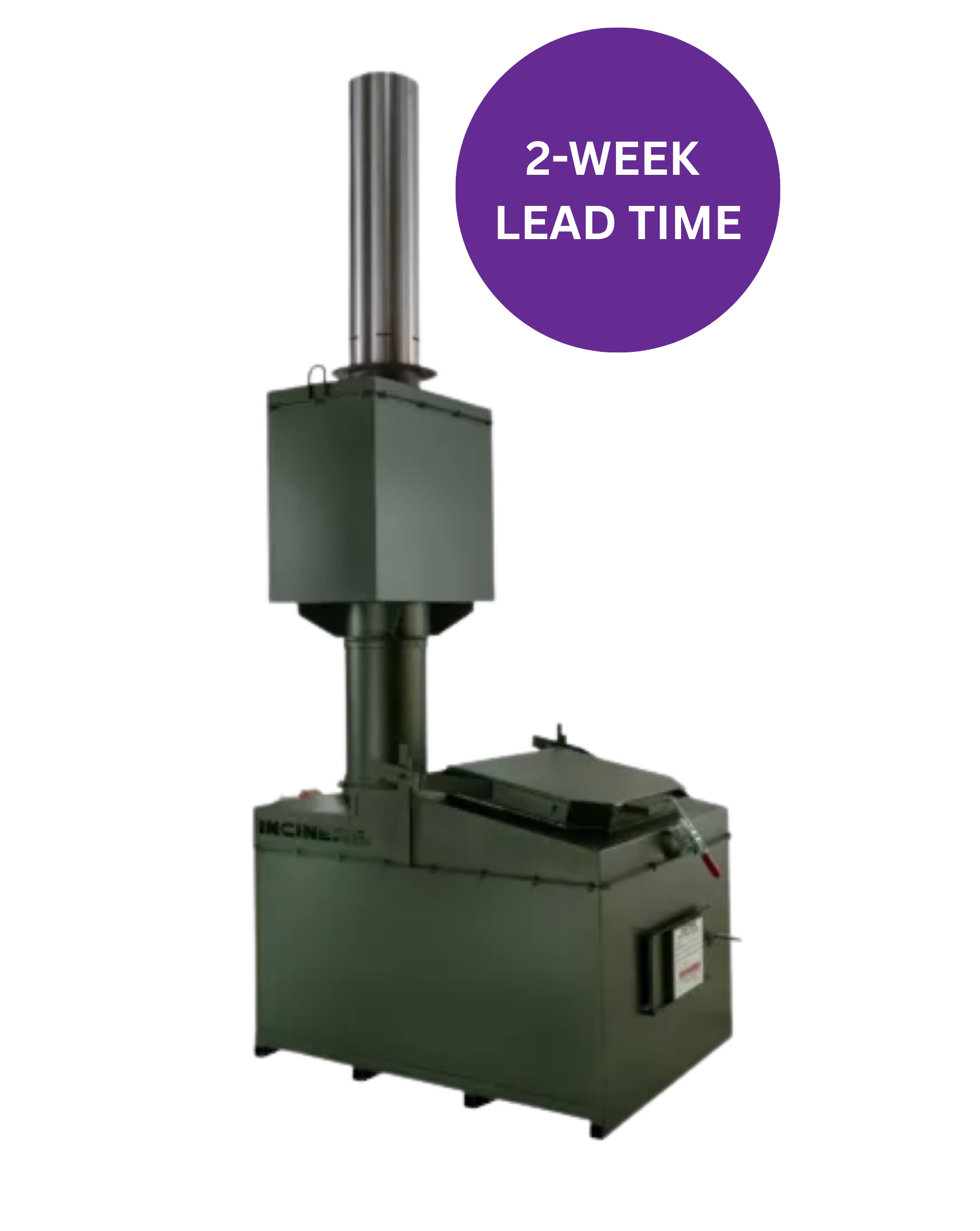

The i8-75A is a medium capacity animal incinerator from our range of ‘DEFRA Approved’ models and is suitable for disposing of game, deer, poultry, sheep and the largest breeds of domestic animals with dual function as a pet cremation system.



Using the same successful format as the i8-55A the i8-75A increases the capacity of the primary chamber allowing for greater burn rates and the capacity to load larger waste streams. It features all the same great benefits whilst managing to deal with your agricultural waste even more efficiently.

Overview

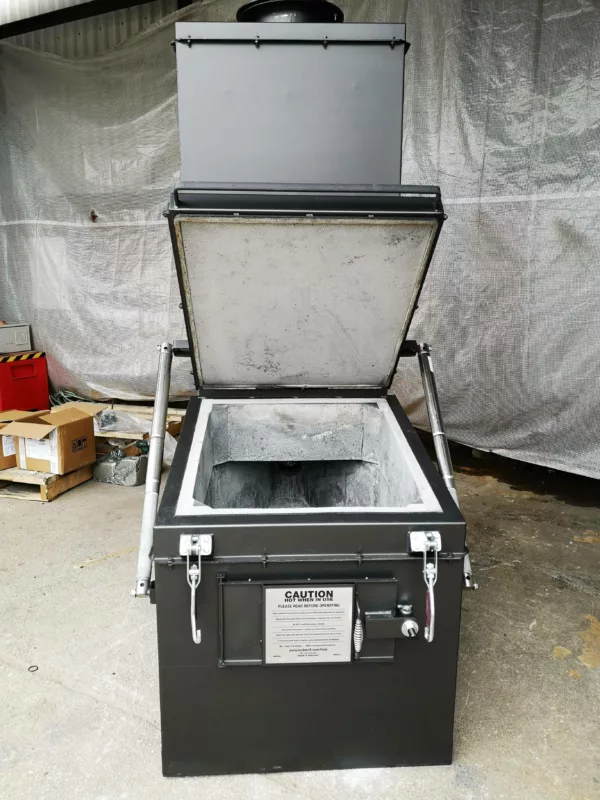

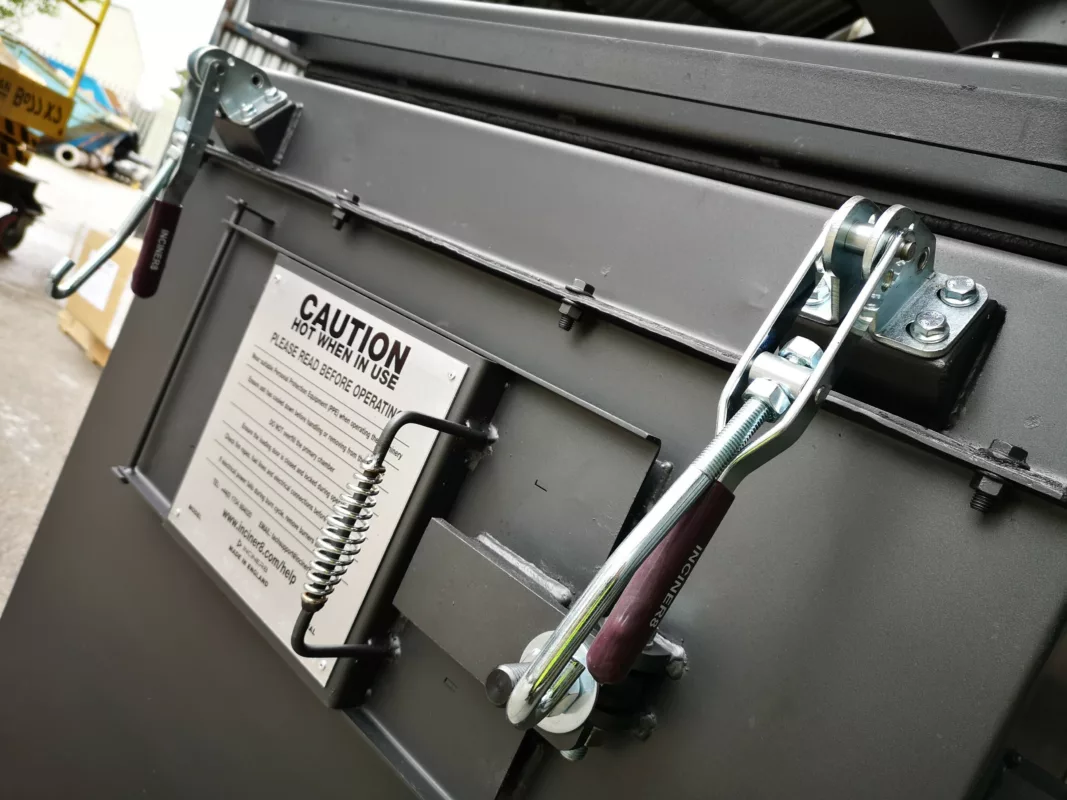

I8-75A model is a mid range incinerator, giving you quality design and engineering. It benefits from a simple top loading door and utilises advanced secondary chamber technology to provide an environmentally friendly option for a variety of agricultural industries.

Features

  • Enhanced Coretex insulation
  • Multi-zone temperature control
  • Mobile options available
  • CE2 Advanced control panel

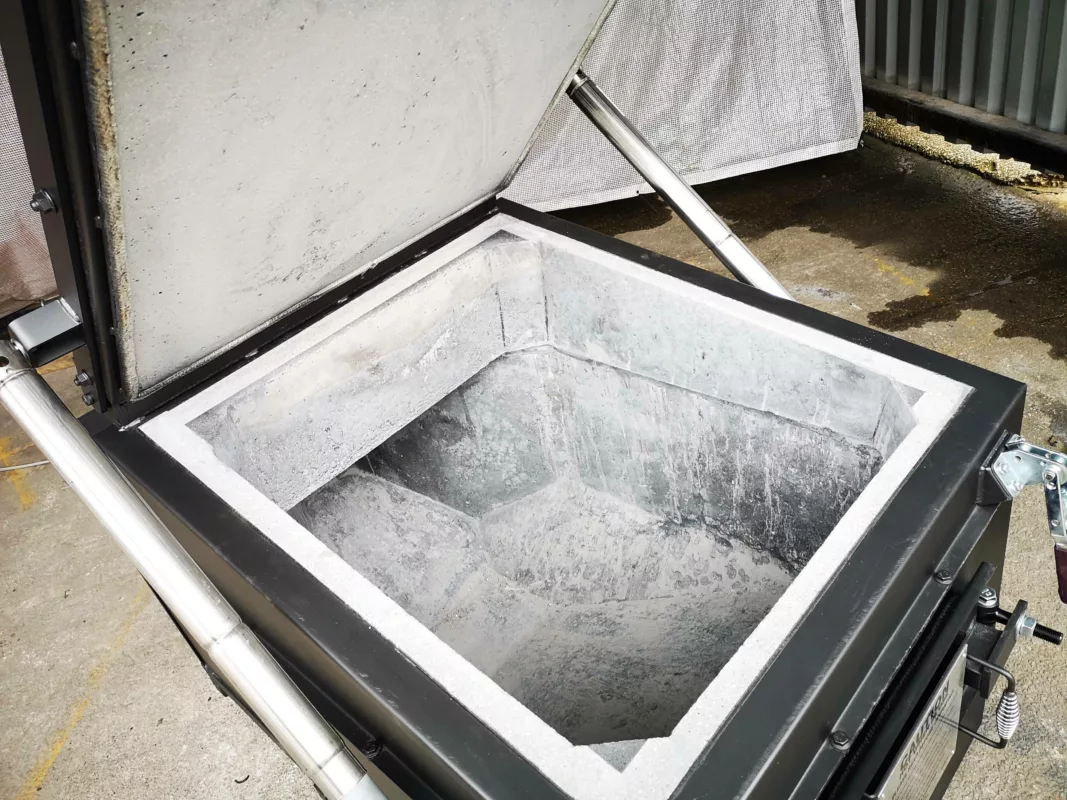

  • Modular refractory lining

Applications

  • Poultry Farms
  • Animal Waste Collection
  • Veterinary Laboratories
  • Animal Research Centers
  • Slaughterhouse < 600 kg day

Technical Specifictions

Operational Specifications

Combustion Chamber Volume (m3): 0.75m3
Burn Rate*: up to 50kg per hour
Average Fuel Consumption: 11 – 15 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes

Physical Specifications

External Length (mm): 1610mm
External Width (mm): 1190mm
External Height (mm): 4680mm
Door Size (mm): 0.99 x 0.92m
Shipping Weight: 2450kg

For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.

Optional Extras

Configuration Choices

Made in Britain

Hand-built in the UK

All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.

We can also assist you in the preparation for your planning or permit application where required.
