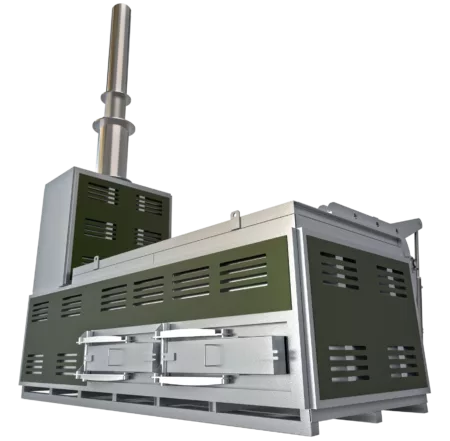

I8-500A Agricultural Incinerator
Contact us for more information
i8-500A
Download
Data Sheet
It is suitable for disposing of horses, cattle and other large or bulky agricultural waste streams. This system benefits from a wide opening door and high hourly burn rates which makes it a preferred disposal solution for farms, shooting practices, slaughterhouses, abattoirs, veterinary practices or similar facilities with high quantities of agricultural waste.
One of our newest designs is the i8-500A it uses groundbreaking design and user features found on our larger machines. Taking over two years to develop, the i8-500A was designed from the ground up to offer impressive burn rates and large batch sizes while still achieving some of the lowest emissions in its class. You also get one of the largest primary chambers around, controlled air incineration as standard, and a plethora of options in terms of pre-processing and post-combustion – all geared to increasing the performance and efficiency of this unit.
Overview
Top loading design provides liquid retention making this incinerator ideal for incineration of many different waste streams.
It gives you the size and flexibility you need, with unique value and high quality performance.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control

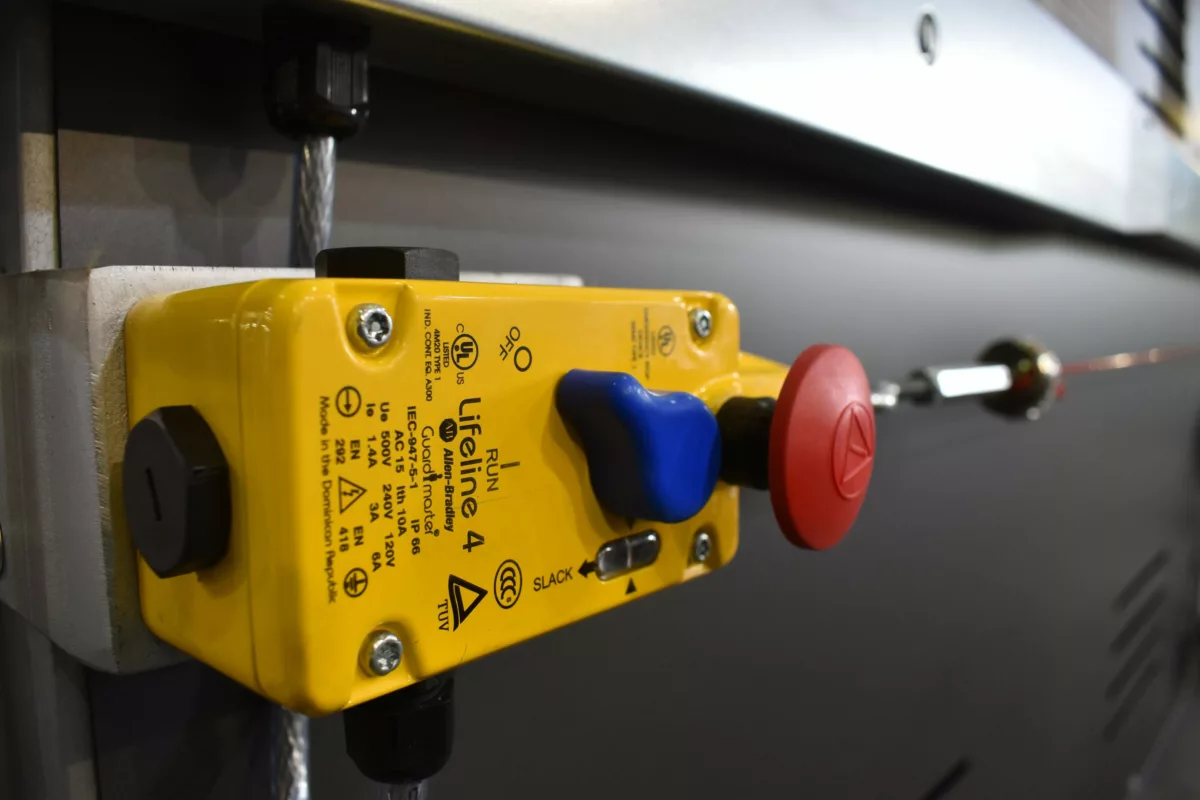

- Additional safety features
- CE4-VFD Advanced control panel
- Hydraulic doors
Applications
- Poultry Farms
- Animal Waste Collection
- Veterinary Laboratories
- Animal Research Centers
- Slaughterhouse < 15000 kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 5.00m3
Burn Rate*: up to 450kg per hour
Average Fuel Consumption: 30 – 40 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 4700mm
External Width (mm): 1910mm
External Height (mm): 5750mm
Door Size (mm): 3500 x 1500mm
Shipping Weight: 13000kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
