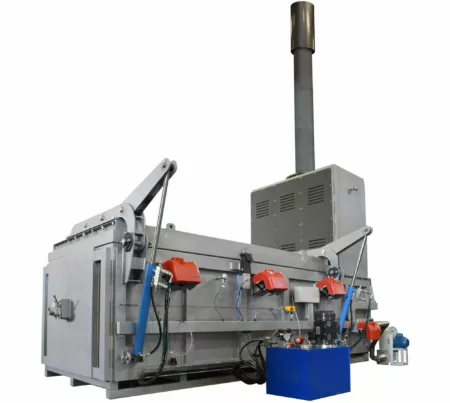

i8-500G General Incinerator
The i8-500G has the third largest capacity in our range of general waste incinerators and is capable of burning up to 300kg per hour. Suitable for various waste streams such as wood, paper, cardboard and medical waste, the i8-500G uses groundbreaking design and user features found on our much larger machines.
Taking over two years to develop the i8-500G was designed from the ground up to offer impressive burn rates and large batch sizes. The over-sized loading door makes this incinerator ideal for the incineration of many different size waste streams.
This model can be customised with external cladding and automatic loading to provide an effective and sustainable waste disposal solution for many different types of industries with large volumes of waste.
Downloads
- High-Capacity Chamber
- Ideal for Large Camps
- Modular Options Available
Features
Exceptional High-Volume Capacity
Our large-scale incinerators are engineered to handle high volumes of waste with ease, making them ideal for industries that require continuous, reliable waste management. With burn rates of up to 300kg per hour and chambers designed to accommodate bulky materials, our systems ensure efficient processing without compromising on performance or compliance.
Advanced Design with Premium Features

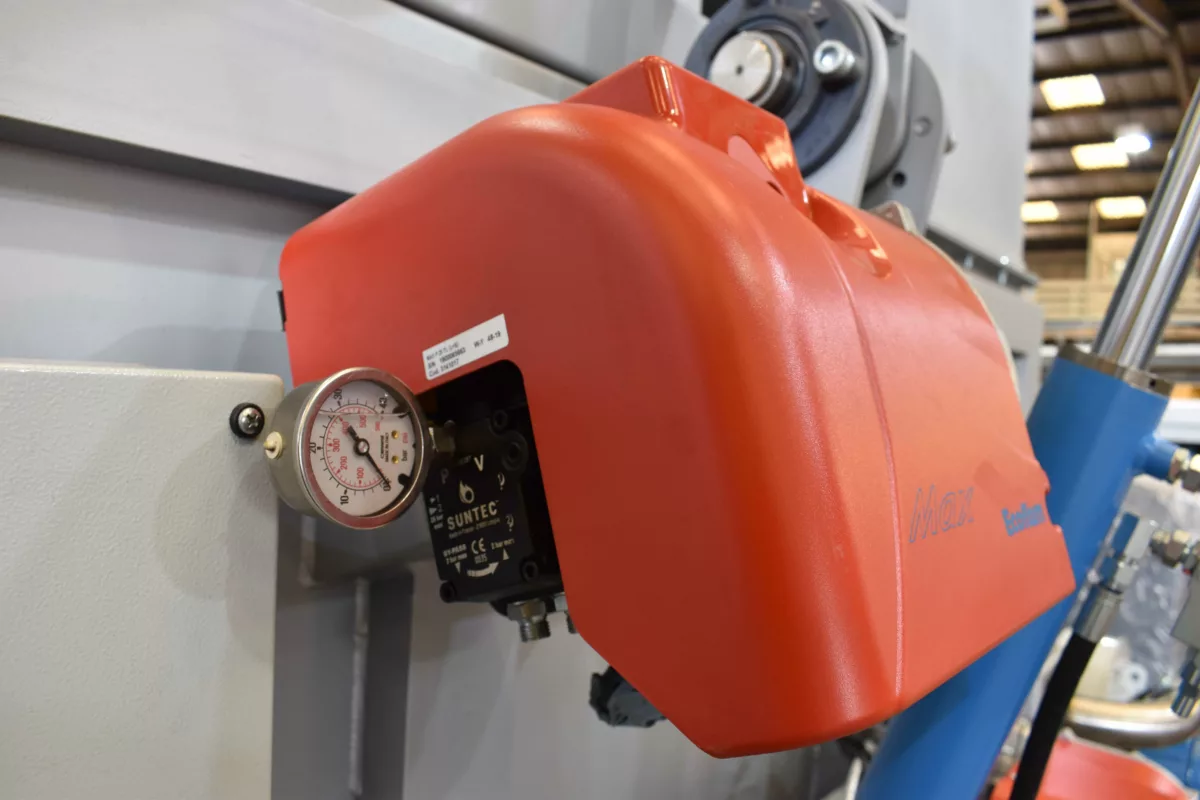

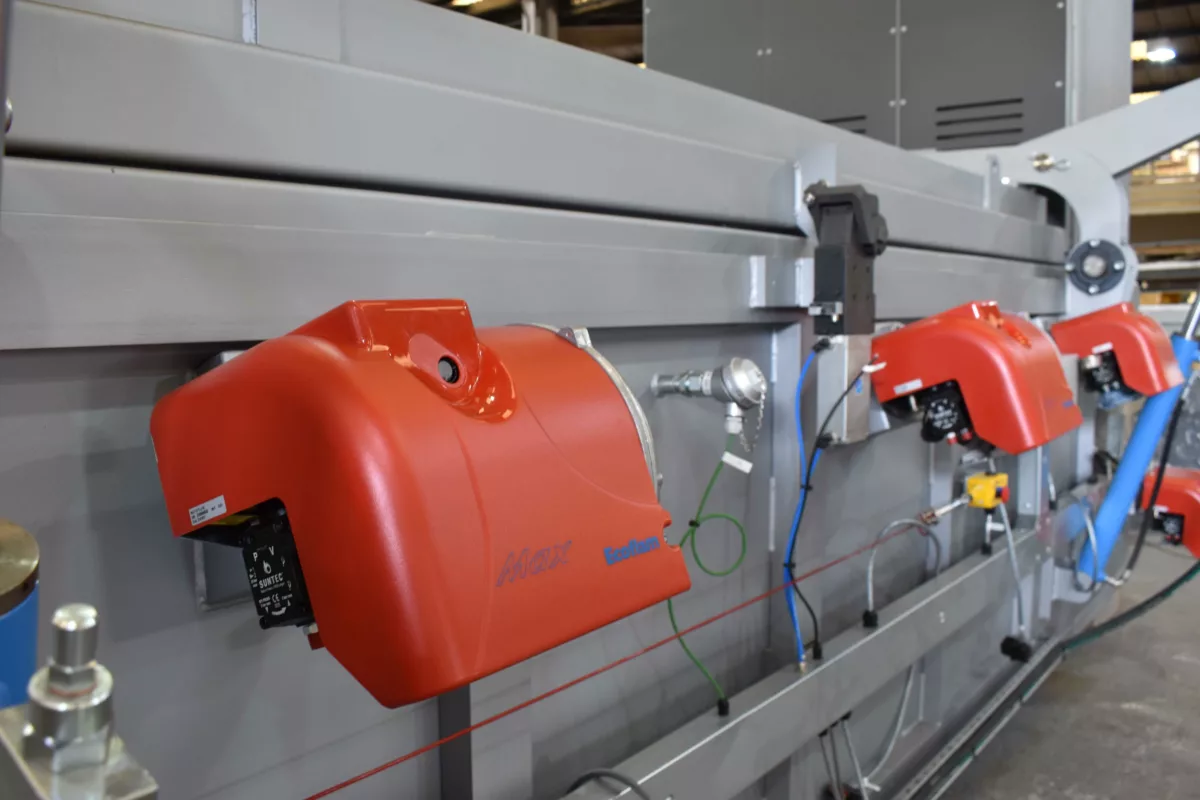

Every Inciner8 system is built with cutting-edge combustion technology and user-focused functionality. From fully insulated chambers and low-NOx burners to smart control panels and hydraulic loading doors, our machines are designed for maximum efficiency, operator safety, and long-term durability.
Other Features
- Dual-Chamber Technology – Ensures complete combustion while meeting environmental regulations.
- Intuitive Control Panel – Allows independent adjustment of temperature and burn time for efficient operation.

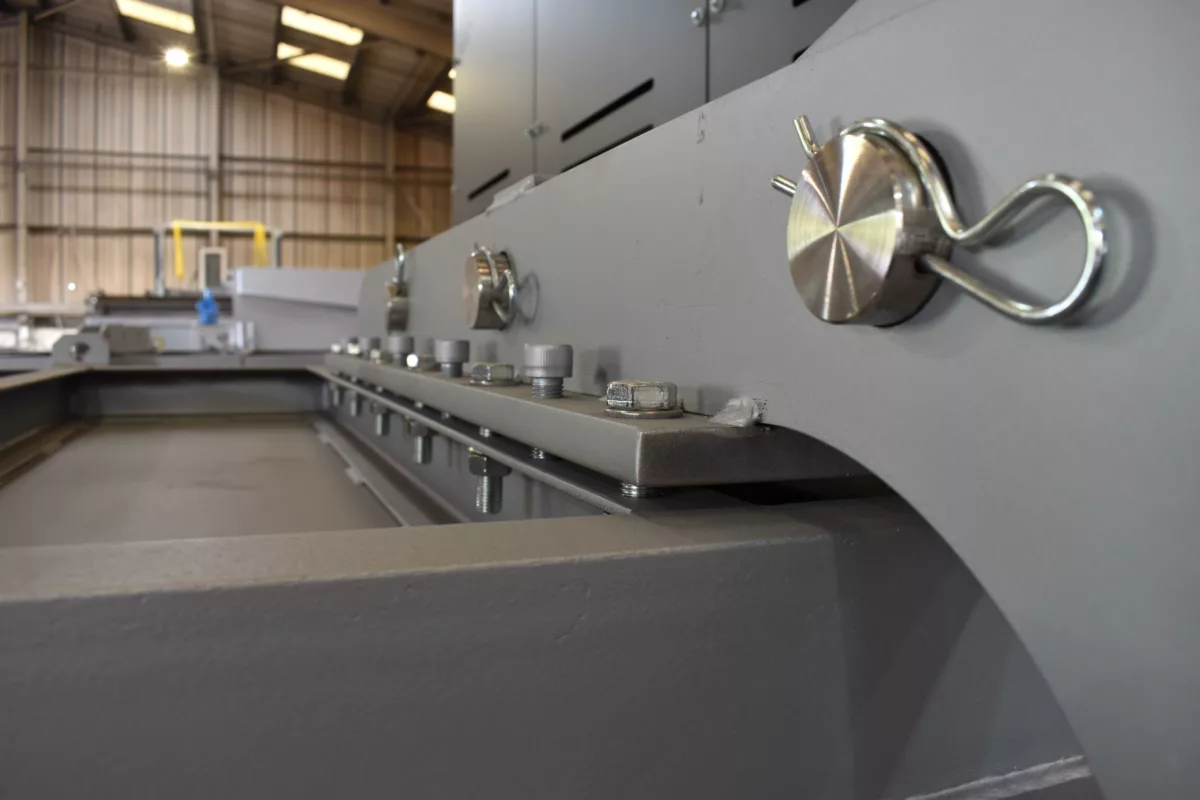

- Large Top-Loading Design – Simple and convenient waste loading system with large door for bulky waste items.

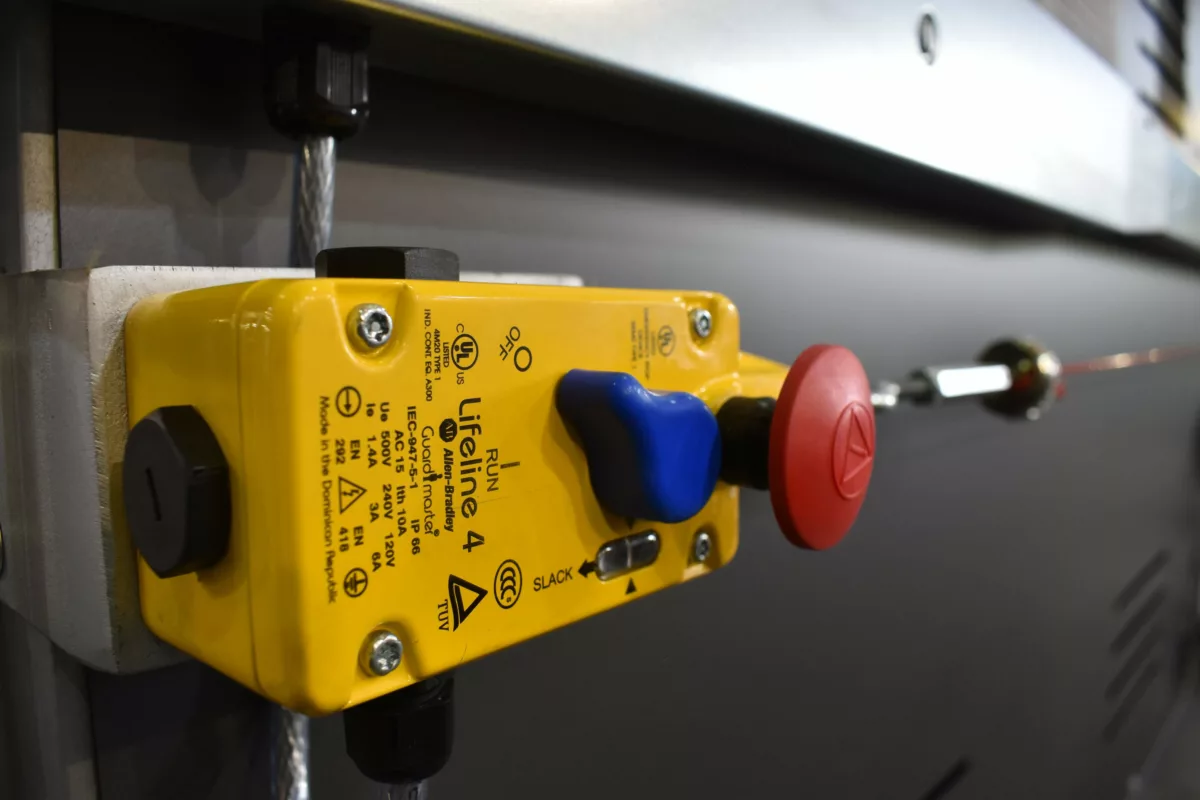

- Automatic Safety Shutoff – Protects operators by deactivating the primary chamber burner when the lid is open.
- Ash Removal Door – Allows safe and easy removal of ash after combustion.
- Modular Pollution Control Systems – Optional additions, such as scrubbers, reduce emissions further.
- Durable Stainless-Steel Flue – Ensures efficient exhaust gas removal and long service life.
Applications
This product can be used in a wide variety of locations and settings. Here are some of the most common places where it is used:
Facilities supporting armed forces during training, deployment, or tactical missions. These include forward operating bases, command posts, field hospitals, and logistics hubs equipped with communications gear, security measures, power generation, and basic living quarters.
Facilities that collect, process, and manage household and commercial non-hazardous waste.
Temporary or semi-permanent facilities established to provide essential services during emergencies or displacement situations.
Small towns or settlements with limited but established infrastructure. These communities typically include basic municipal services, small commercial areas, community gathering spaces, and essential public facilities.
Product Specification
Download data sheet
For more detailed information about this incinerator, including technical specifications, download our comprehensive product brochure.
Download Technical Specifications
Operational Specifications
| Combustion Chamber Volume (m3): | 5.00m3 |
| Burn Rate*: | up to 300kg per hour |
| Average Fuel Consumption: | 30 – 40 ltrs p/h |
| Operational Temperature: | > > 850°C |
| Gas Retention in Secondary Chamber: | Up to 2 secs |
| Temperature Monitoring: | Yes |
| Average ash residue (%): | 3% |
| Thermostatic Device: | Yes |
Physical Specifications
| External Length (mm) | 4700mm |
|---|---|
| External Width (mm) | 1910mm |
| External Height (mm) | 5750mm |
| Door Size (mm) | 3500 x 1500 |
| Shipping Weight | 13000kg |
For reference only, not to be used for installation purposes.
* All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Customisation options
Customisation
Containerised Incinerators
Our incinerators can be installed in 20ft or 40ft containers for easy relocation, with added security and integrated fuel tanks, generators, and control panels.
Learn MoreSkid-Mounted Incinerators
For larger models, our skid-mounted platforms accommodate incinerators and equipment, offering full mobility and options like hinged chimneys for quicker transport.
Learn MoreLoading Systems
We have a wide range of automatic and semi-automatic loading systems which help to simplify the loading process.
Learn MorePollution Control Sytems
Our range of pollution control systems are designed to safely process any harmful gases, heavy metal particles, dioxins and furans from your exhaust gases.
Learn MoreShelters
Weather protection for equipment and operator. Our shelters are designed for easy and quick installation on a standard reinforced concrete slab.
Learn MoreEnergy Back-up Systems
Additional energy back up systems are available with all of our incinerators, giving peace of mind where power can be inconsistent.
Learn More Need product advice? Speak to our specialist sales team.
Speak to an expert
Have any questions? Our experts are ready with answers. Contact us today and discover tailored solutions to your specific challenges. Our team brings years of industry experience to every conversation, ensuring you receive practical advice for your project.
Don’t navigate these decisions alone — click below to contact us.
- +44 1704 884020
- sales@inciner8.com
FAQs
Our advanced secondary chamber technology with a gas retention time of up to 2.0 seconds allows our incinerators to comply with environmental standards while processing volumes of waste. Additional pollution control systems such as a venturi wet scrubbers, can be added for volatile or hazardous waste.
Routine maintenance includes cleaning chambers, checking filters, and inspecting burners. Inciner8 can help with additional maintenance and training, providing annual servicing, spare parts kits and diagnostics if required.
Our award-winning engineering team is always on hand to offer advice and technical know-how to ensure projects get off the ground without delay. We can also assist with installation, maintenance and training.
We offer a wide range of support options depending on the level of assistance you require:
- Our technical support team is available via phone, email and WhatsApp
- Deployable technical representatives for major installations, training and servicing
- Web-based troubleshooting and remote diagnostics via video call
The complete range of Inciner8 incinerators are shippable to any sea-port in the world. A variety of additional mobile options are available to enable rapid development and simple installation.
- Trailer-mounted incinerator systems – rapid deployment and transfer to multiple locations
- ISO containerised systems (20ft/40ft) – complete set up, factory assembled, no installation or civil works required
- Skid-mounted systems – Factory assembled, minimal installation required, ideal for larger incinerators.
