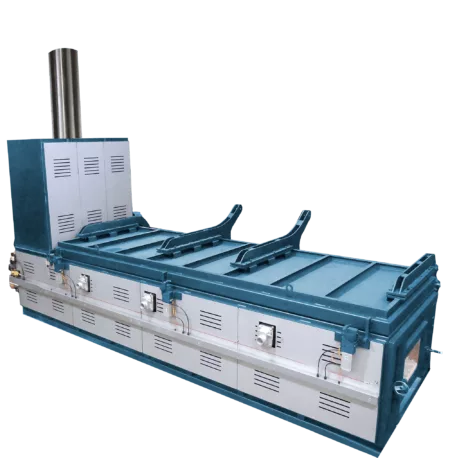

I8-M700 model is amongst our largest incinerators.
You get controlled air incineration as standard, providing optimal combustion conditions for different waste types, vital for seasonal and operational variations in your organisation. Top loading design provides liquid retention making this incinerator ideal for incineration of many different waste streams. Gives you the size, performance and flexibility. Unique value, high quality and total solutions.
All our incinerators are hand-built in the UK by time-served welders and fabricators.
Our award winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay. We can also assist you in the preparation for your planning or permit application where required.
|Operational Specs||Physical Specs|
|Combustion Chamber Volume (m3)||6.75m3||External Length (mm)||6230mm|
up to 300kg per hour
|External Width (mm)||1910mm|
|Average Fuel Consumption||40 - 50 ltrs p/h||External Height (mm)||5760mm|
|Operational Temperature||> 850°C||Door Size (mm)||mm|
|Gas Retention in Secondary Chamber||2 secs||Shipping Weight||16000kg|
|Average ash residue (%)||3%||For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.|
