Inciner8

I8-M80 Medical Incinerator

Download data sheet

I8-M80 incinerator is specifically designed to deal with all types of medical waste. This model is a controlled air incinerator, providing optimal combustion conditions for all different waste streams. The front-loading design provides excellent liquid retention.

IMG 20201015 111937 Recoveredcutout

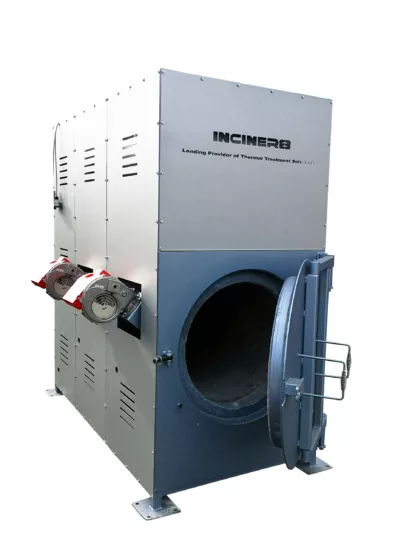

The i8-M80 is a medium capacity specialist "M" incinerator for medical waste disposal benefiting from cylindrical combustion chambers, integrated I.D. fan and clinical exterior design making it the ideal solution for hospitals and medical waste collection centres.

Overview

The M80 has the addition of an advanced control panel to allow the optimum burn setting according to your waste stream including medical, clinical, pharmaceutical, pathological and hazardous waste. This unit also benefits from a secondary chamber with a gas residence afterburner to eliminate harmful emissions.

Features

  • Enhanced Coretex insulation
  • Multi-zone temperature control
  • Mobile options available
  • CE2-VFD Advanced control panel

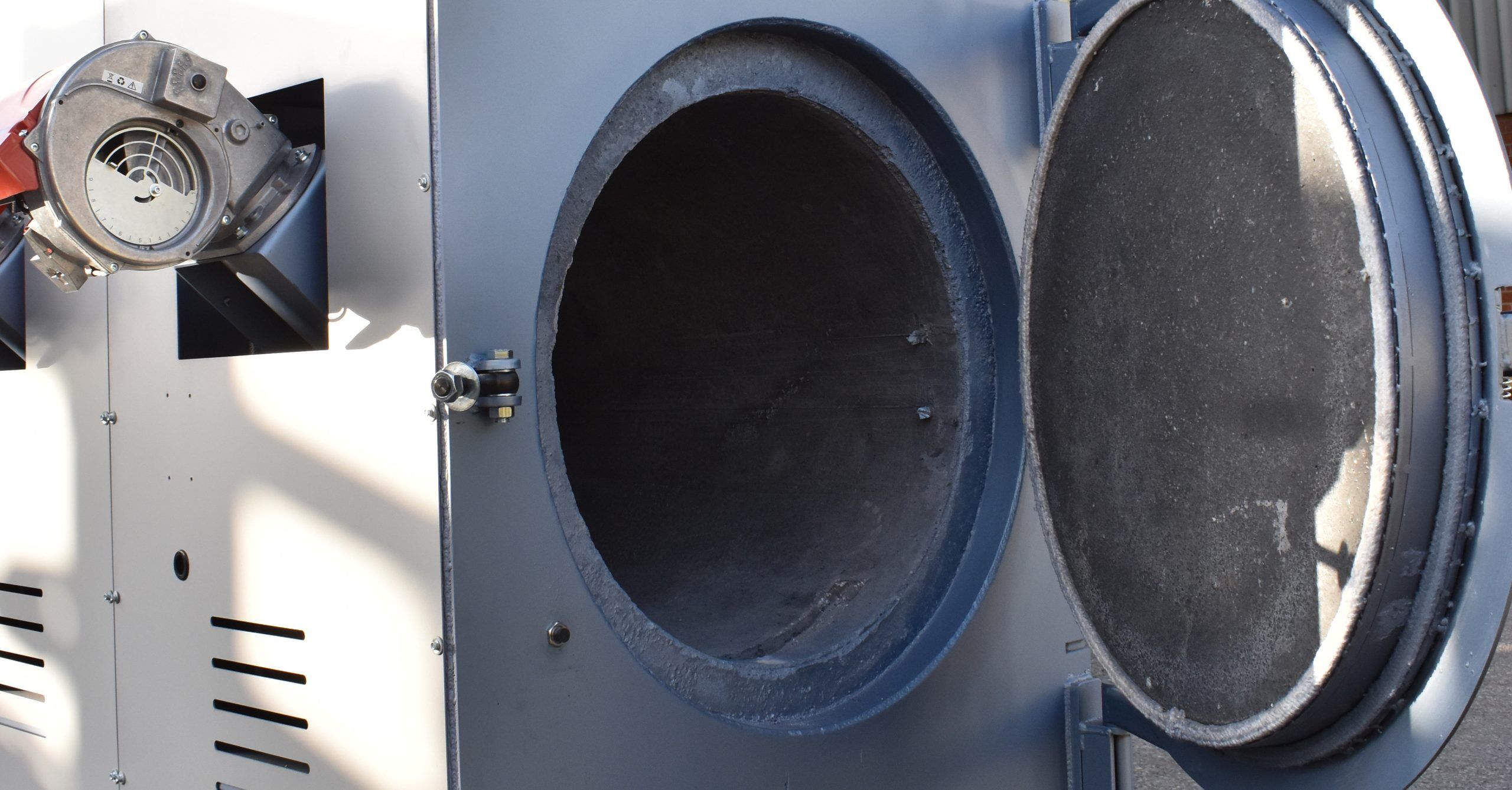

  • Front loading design
  • Rear access door

Applications

  • Medical Laboratories
  • Dental / Cosmetic Clinics
  • Blood Banks / Collection
  • Centers for Disease Control
  • <500 Bed Medical Facilities
  • 67
  • DSC 0108
  • IMG 20201015 111934
  • DSC 0130
  • DSC 0128
  • DSC 0116
Made in britain

Hand-built in the UK

All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.

We can also assist you in the preparation for your planning or permit application where required.

Technical specifications

Operational Specifications

Combustion Chamber Volume (m3)
0.57m3
Burn Rate*
up to 70kg per hour
Average Fuel Consumption
15 - 20 ltrs p/h
Operational Temperature
> 850°C
Gas Retention in Secondary Chamber
2 secs
Temperature Monitoring
Yes
Average ash residue (%)
3%
Thermostatic Device
Yes

Physical specifications

External Length (mm)
2080mm
External Width (mm)
1100mm
External Height (mm)
3840mm
Door Size (mm)
0.57 diametermm
Shipping Weight
2500kg

For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
