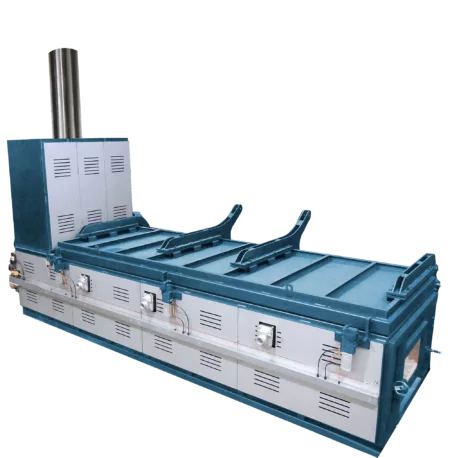

I8-M700 Medical Incinerator
Contact us for more information
i8-M700
Download
Data Sheet
The second biggest model in our medical range is the i8-M700. The machine was designed to outperform any other incinerator within its class. This model gives you the size, performance and flexibility to to expand if and when your waste stream does.
Proven in many demanding situations and climates, it is being used as the primary waste solution by large medical facilities, health clinics and hospitals. Its high capacity and impressive burn rates make this a sought-after product.
Overview
With controlled air incineration as standard, providing optimal combustion conditions for different waste types, which is vital for seasonal and operational variations in your organisation. It’s top loading design provides liquid retention making this incinerator ideal for incineration of many different waste streams.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Additional safety features
- CE6-VFD Advanced control panel
- Hydraulic doors
Applications
- Medical Laboratories
- General Medical Waste
- Infirmaries / Hospitals
- < 1000 Bed Medical Facilities
- Medical Waste Collection
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 6.75m3
Burn Rate*: up to 300kg per hour
Average Fuel Consumption: 40 – 50 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 6040mm
External Width (mm): 1910mm
External Height (mm): 5750mm
Door Size (mm): 4580 x 1500mm
Shipping Weight: 15000kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
