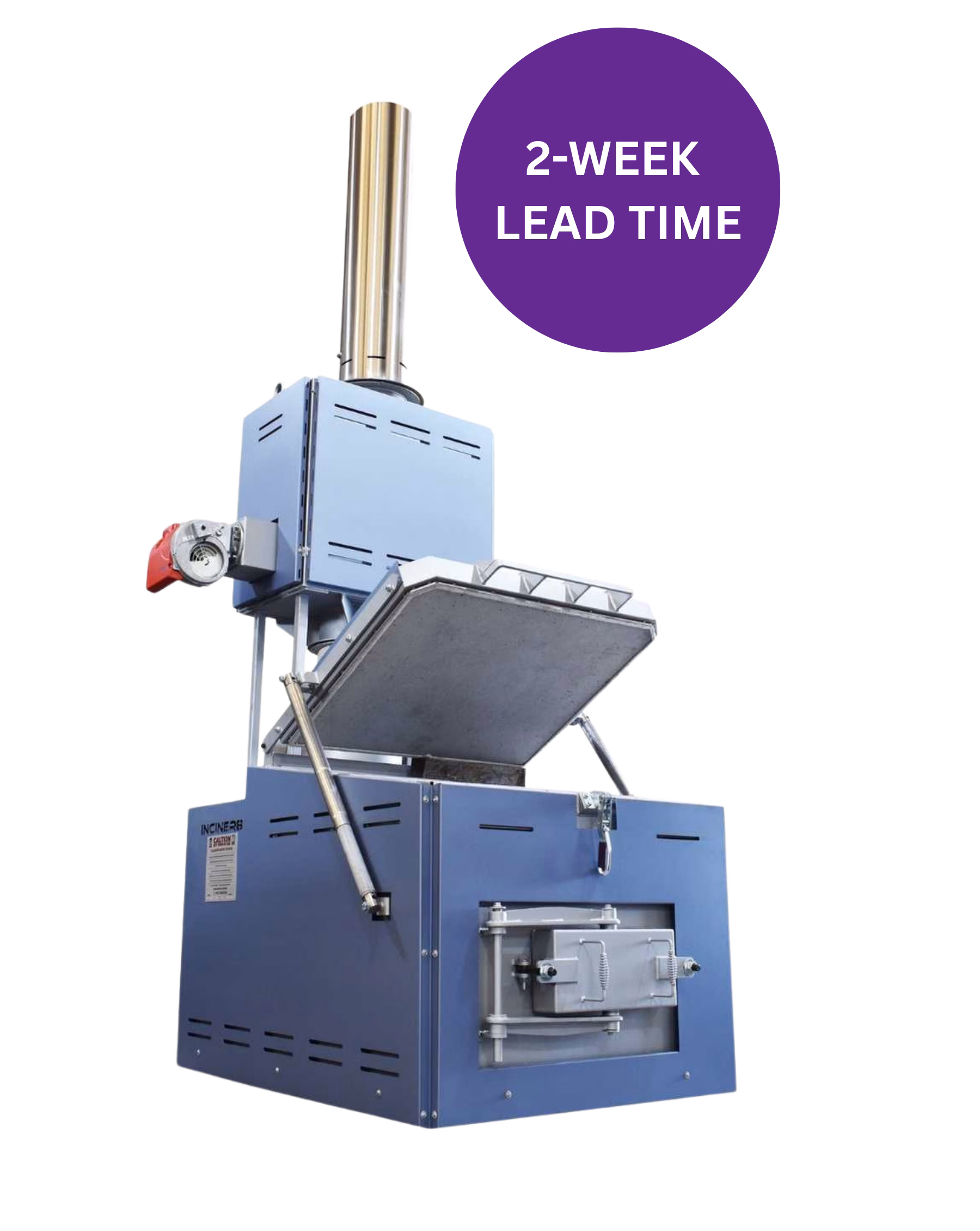

I8-M70 Medical Incinerator
Contact us for more information
i8-M70
Download
Data Sheet
I8-M70 model is a mid range incinerator that has been engineered with medical waste in mind. It benefits from a large loading door, giving you extra capacity for bulky items.
Using the same design principles from the popular i8-M50, the i8-M70 has been optimized to deliver a large primary chamber for all types of medical waste disposal.
Overview
The addition of an advanced CE2-VFD control panel, I.D. fan and increased insulation improves performance and provides all-round suitability for many different types of medical, clinical, pharmaceutical and hazardous waste streams. You get controlled air incineration to allow optimal combustion conditions for different waste types.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2-VFD Advanced control panel
- Tertiary air control
Applications
- Dental / Cosmetic Clinics
- Blood Banks / Collection
- < 250 Bed Medical Facilities
- Medical Facilities
- < 400 Bed Medical Facilities
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.75m3
Burn Rate*: up to 50kg per hour
Average Fuel Consumption: 11 – 15 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1610mm
External Width (mm): 1190mm
External Height (mm): 4680mm
Door Size (mm): 990mm x 910mm
Shipping Weight: 2450kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Optional Extras
Configuration Choices
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
