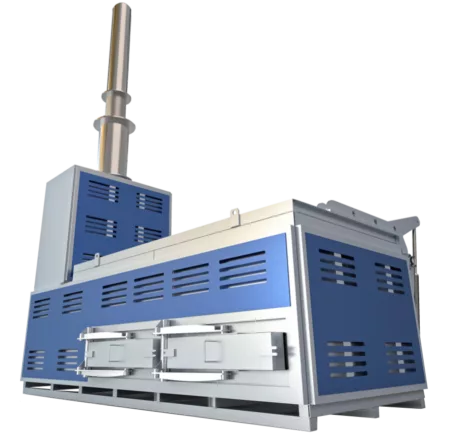

i8-M500 Medical Incinerator
The i8-M500 is one of our largest models was designed from the ground up to deliver impressive burn rates and large batch capacities while achieving some of the lowest emissions in its class.
The i8-M500 serves as our most versatile “do it all” incinerator within the medical lineup, offering exceptional size, performance, and flexibility in one impressive machine. It features liquid retention capabilities, making it ideal for processing diverse waste streams.
Downloads
- Impressive Burn Rates
- < 500 Bed Medical Facilities
- Large Top Loading Door
Features
Exceptional Complete combustion
Delivers exceptional throughput with burn rates up to 225kg per hour and a massive 5.00m³ combustion chamber, perfect for high-volume medical waste processing facilities.
Advanced Design with Premium Features
Developed by a team of highly skilled engineers, our large capacity machines include premium features and intuitive design elements.
Other Features
- Dual-Chamber Technology – Ensures complete combustion while meeting environmental regulations.
- Intuitive Control Panel – Allows independent adjustment of temperature and burn time for efficient operation.

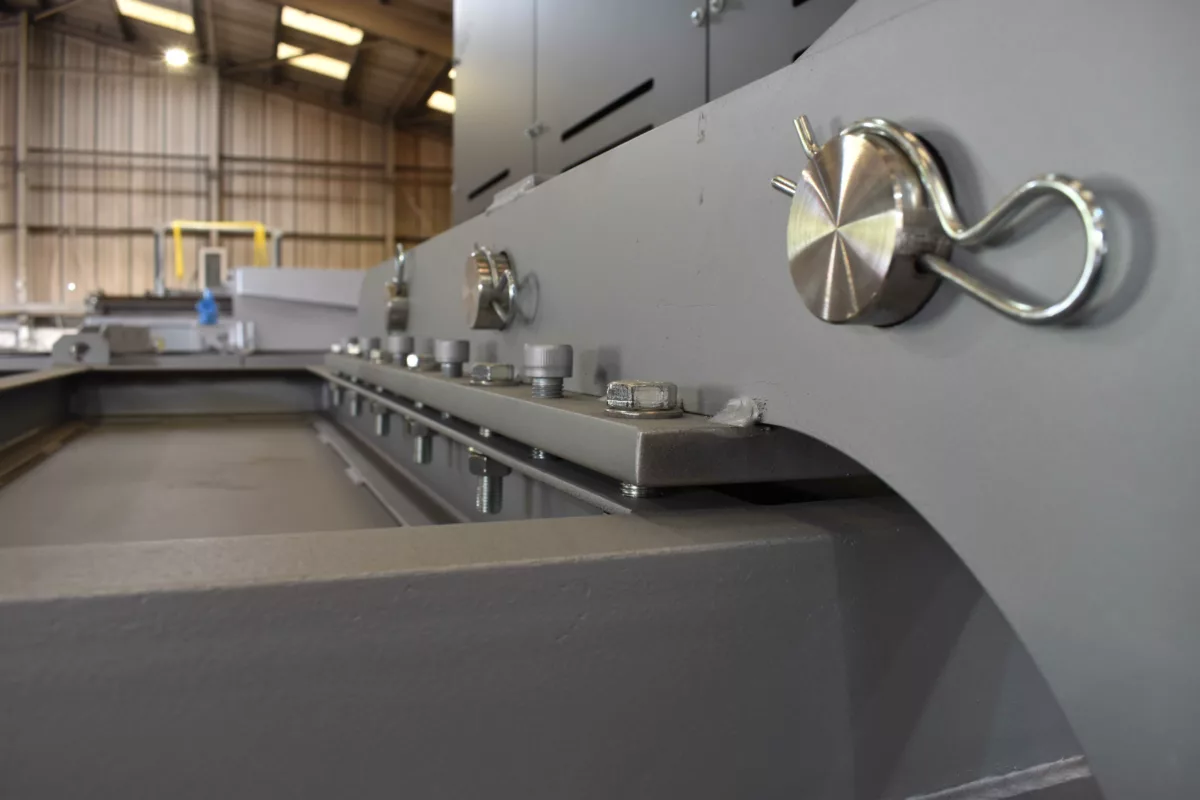

- Top-Loading Design – Large hydraulic doors make for easy loading

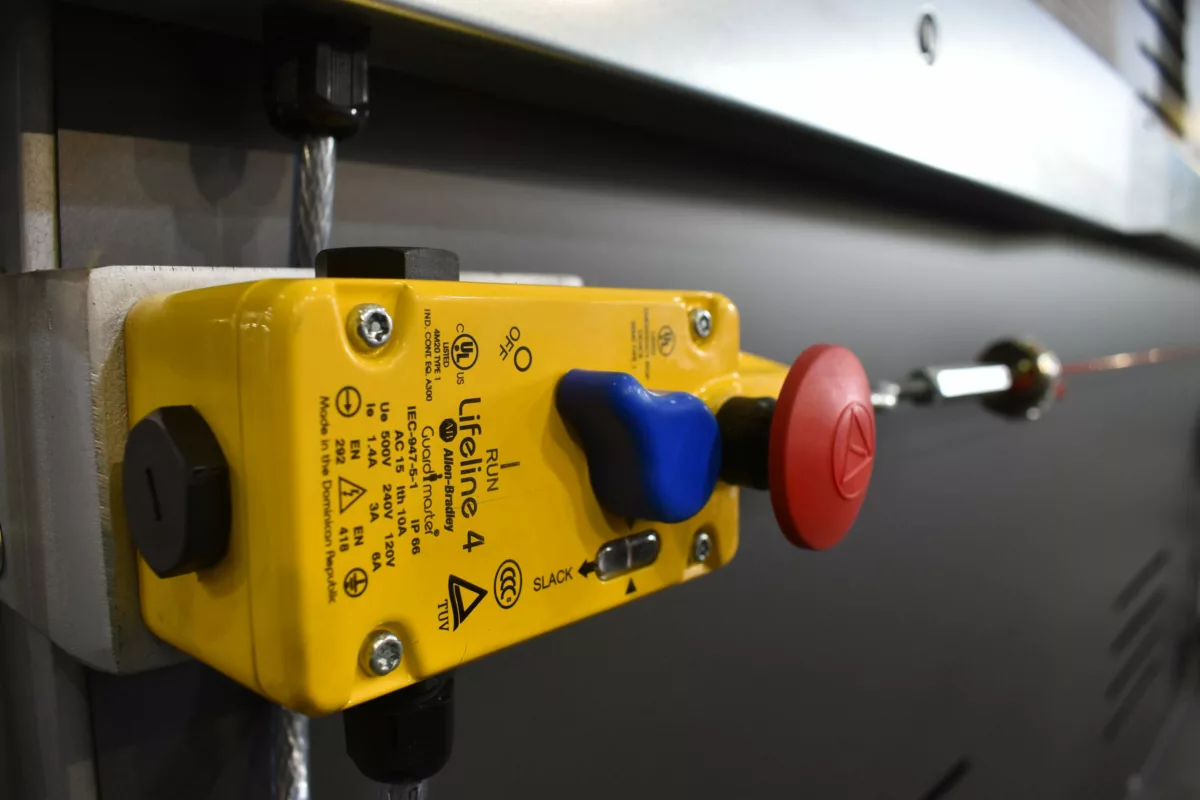

- Automatic Safety Shutoff – Protects operators by deactivating the primary chamber burner when the lid is open.
- Ash Removal Door – Allows safe and easy removal of ash after combustion.
- Modular Pollution Control Systems – Optional additions, such as scrubbers, reduce emissions further.
- Durable Stainless-Steel Flue – Ensures efficient exhaust gas removal and long service life.
- Oversized loading door – (3500 x 1500mm) for bulky items
Applications
This product can be used in a wide variety of locations and settings. Here are some of the most common places where it is used:
Facilities that temporarily store and process healthcare-generated waste before final disposal. They handle potentially infectious materials, sharps, pharmaceutical waste, and other regulated medical waste to ensure safe disposal.
Institutions dedicated to discovering, developing, and testing new medications and therapies. They conduct drug research, clinical trials, and work to advance pharmaceutical treatments for various medical conditions.
Research facilities focusing on biological systems, organisms, and processes to develop products and technologies. They work on genetic engineering, molecular biology, and creating innovative solutions for healthcare, agriculture, and industry.
Hospitals with moderate capacity providing comprehensive inpatient and outpatient services. They typically offer emergency care, surgical services, specialised departments, and may serve as regional healthcare hubs for communities.
Product Specification
Download data sheet
For more detailed information about this incinerator, including technical specifications, download our comprehensive product brochure.
Download Technical Specifications
Operational Specifications
| Combustion Chamber Volume (m3): | 5.00m3 |
| Burn Rate*: | up to 225kg per hour |
| Average Fuel Consumption: | 30 – 40 ltrs p/h |
| Operational Temperature: | > > 850°C |
| Gas Retention in Secondary Chamber: | Up to 2 secs |
| Temperature Monitoring: | Yes |
| Average ash residue (%): | 3% |
| Thermostatic Device: | Yes |
Physical Specifications
| External Length (mm) | 4700mm |
|---|---|
| External Width (mm) | 1910mm |
| External Height (mm) | 5750mm |
| Door Size (mm) | 3500 x 1500 |
| Shipping Weight | 13000kg |
For reference only, not to be used for installation purposes.
* All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Customisation options
Customisation Options
Skid-Mounted Incinerators
For larger models, our skid-mounted platforms accommodate incinerators and equipment, offering full mobility and options like hinged chimneys for quicker transport.
Learn MoreLoading Systems
We have a wide range of automatic and semi-automatic loading systems which help to simplify the loading process.
Learn MorePollution Control Sytems
Our range of pollution control systems are designed to safely process any harmful gases, heavy metal particles, dioxins and furans from your exhaust gases.
Learn MoreShelters
Weather protection for equipment and operator. Our shelters are designed for easy and quick installation on a standard reinforced concrete slab.
Learn MoreEnergy Back-up Systems
Additional energy back up systems are available with all of our incinerators, giving peace of mind where power can be inconsistent.
Learn MoreContainerised Incinerators
Our incinerators can be installed in 20ft or 40ft containers for easy relocation, with added security and integrated fuel tanks, generators, and control panels.
Learn MoreTrailer-Mounted Incinerators
Our durable trailers, with fixed headboards and sides, offer ample space for equipment like generators and fuel, and come with options for drop tailboards or loading ramps.
Learn More Need product advice? Speak to our specialist sales team.
Speak to an expert
Have any questions? Our experts are ready with answers. Contact us today and discover tailored solutions to your specific challenges. Our team brings years of industry experience to every conversation, ensuring you receive practical advice for your project.
Don’t navigate these decisions alone — click below to contact us.
- +44 1704 884020
- sales@inciner8.com
FAQs
With burn rates up to 225kg per hour, the i8-M500 can process approximately 1800-2000kg of medical waste in an 8-hour operational day, depending on waste type and calorific value.
Routine maintenance includes cleaning chambers, checking filters, and inspecting burners. Inciner8 can help with additional maintenance and training, providing annual servicing, spare parts kits and diagnostics if required.
The complete range of Inciner8 incinerators are shippable to any sea-port in the world. A variety of additional mobile options are available to enable rapid development and simple installation.
- Trailer-mounted incinerator systems – rapid deployment and transfer to multiple locations
- ISO containerised systems (20ft/40ft) – complete set up, factory assembled, no installation or civil works required
- Skid-mounted systems – Factory assembled, minimal installation required, ideal for larger incinerators.
Our award-winning engineering team is always on hand to offer advice and technical know-how to ensure projects get off the ground without delay. We can also assist with installation, maintenance and training.
