I8-M50 Medical Incinerator
Contact us for more information
i8-M50
Download
Data Sheet

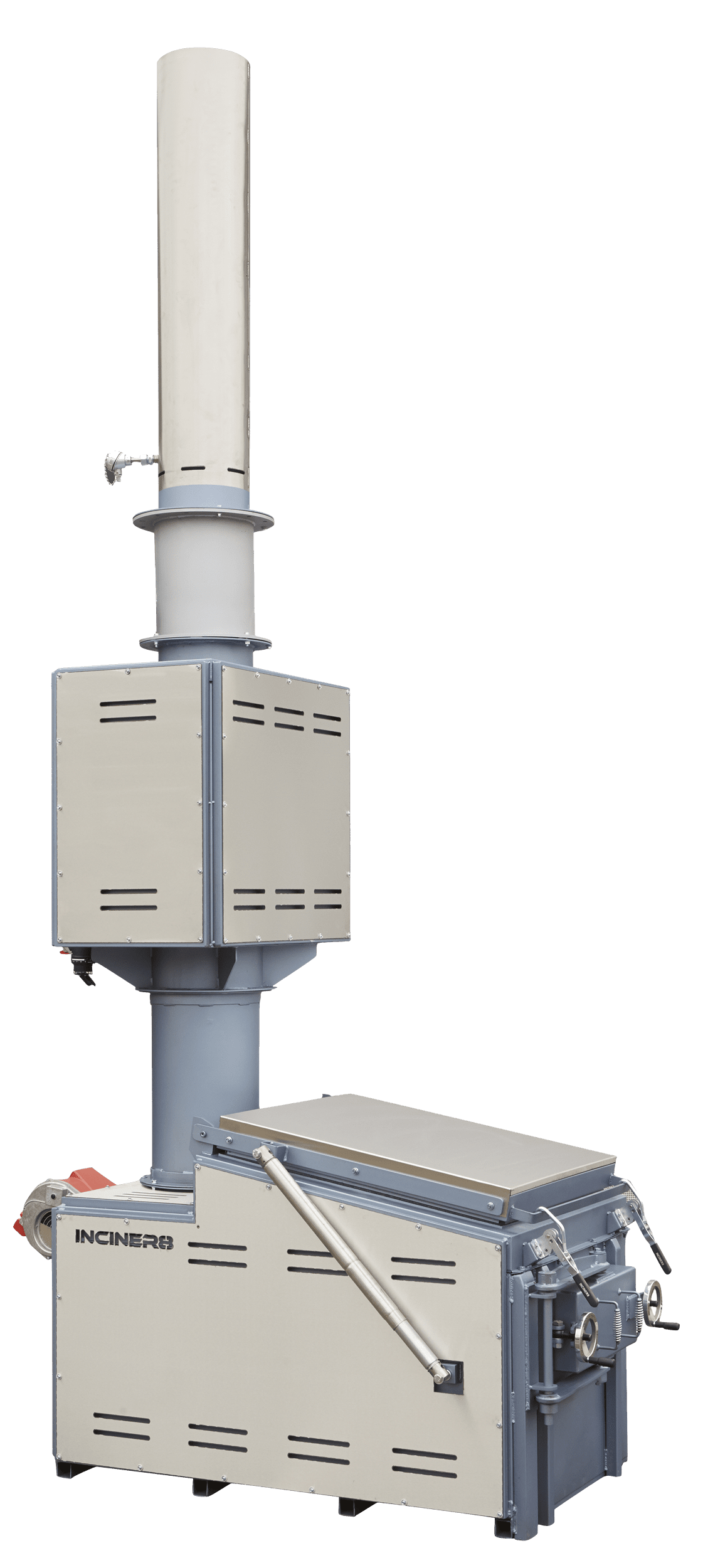

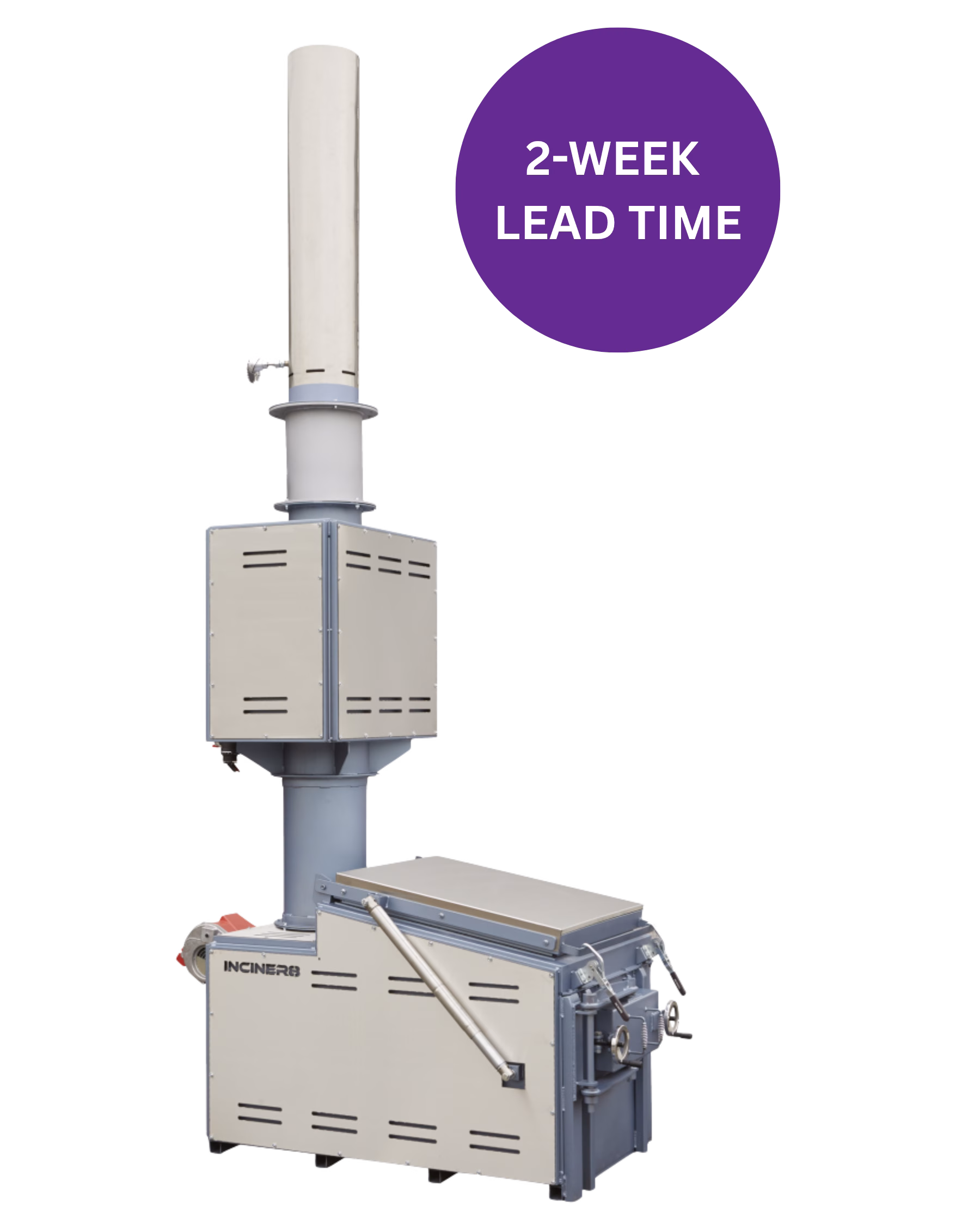

One of our most popular medical models is the i8-M50, it is a medium capacity model from our range of specialist “M” incinerators that are optimised for medical waste disposal.
The addition of a dedicated PLC control panel, tertiary air fan and increased insulation improves performance and provides all-round suitability for many different types of medical, clinical, pharmaceutical and hazardous waste streams.
Overview
This top loader is the perfect choice if you need liquid retention making this incinerator ideal for incineration of most types of waste. This unit benefits from a secondary chamber with afterburner for the re-burn of harmful emissions with a 2 second retention time. The I8-M50 model is a great investment that will last for years to come.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2-VFD Advanced control panel
- Tertiary air control
Applications
- Dental / Cosmetic Clinics
- Blood Banks / Collection
- < 250 Bed Medical Facilities
- Medical Facilities
- < 300 Bed Medical Facilities
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.54m3
Burn Rate*: up to 40kg per hour
Average Fuel Consumption: 11 – 13 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1520mm
External Width (mm): 920mm
External Height (mm): 4480mm
Door Size (mm): 720mm x 830mm
Shipping Weight: 2100kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Optional Extras

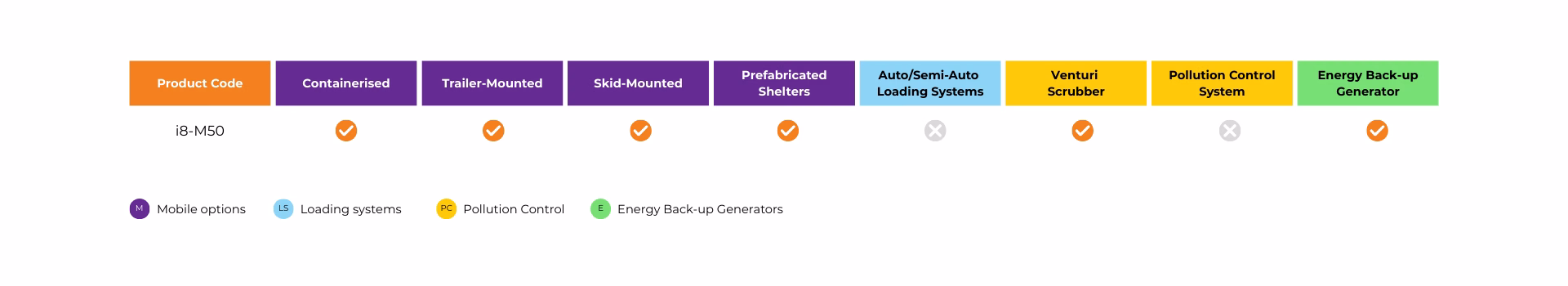

Configuration Choices
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
