I8-M40 Medical Incinerator
Contact us for more information
i8-M40
Download
Data Sheet

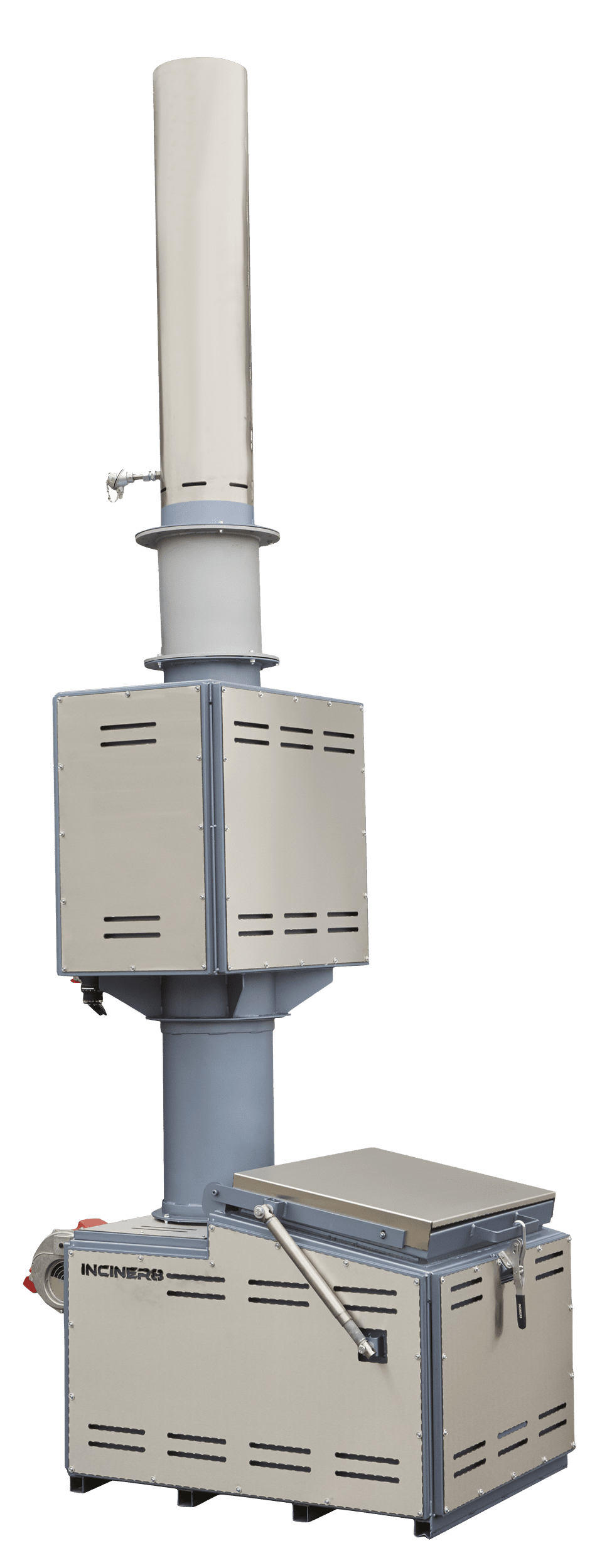

Our i8-M40 is a simple and effective medical incinerator. It was deisgned for small clinics, dental practices or small medical facilities where waste streams are quite low.

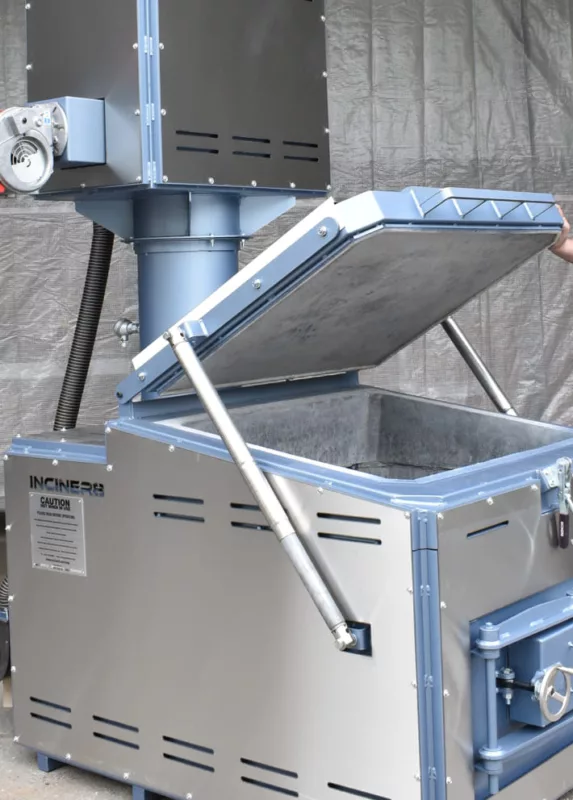

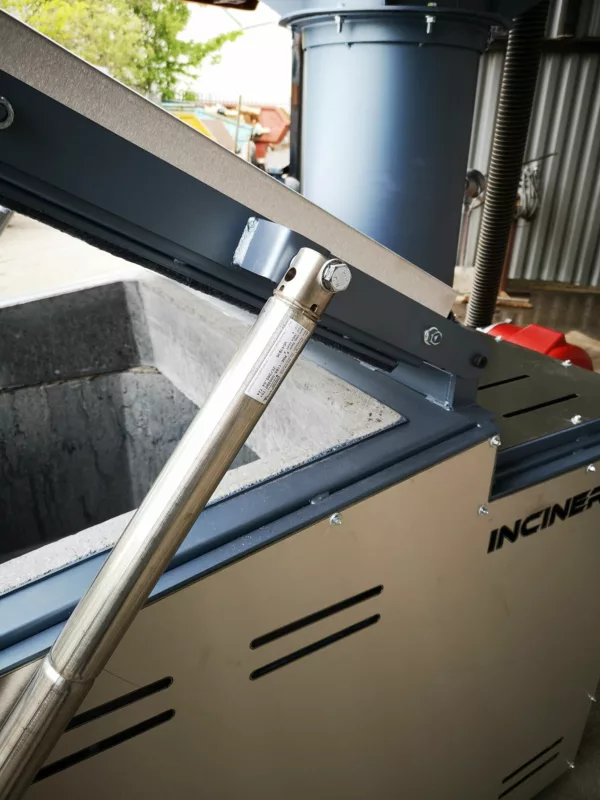

The top-loading design means liquids are well contained within this system during incineration. Featuring inbuilt afterburners, the i8-M40 ensures harmful emissions are eradicated with ease.
Overview

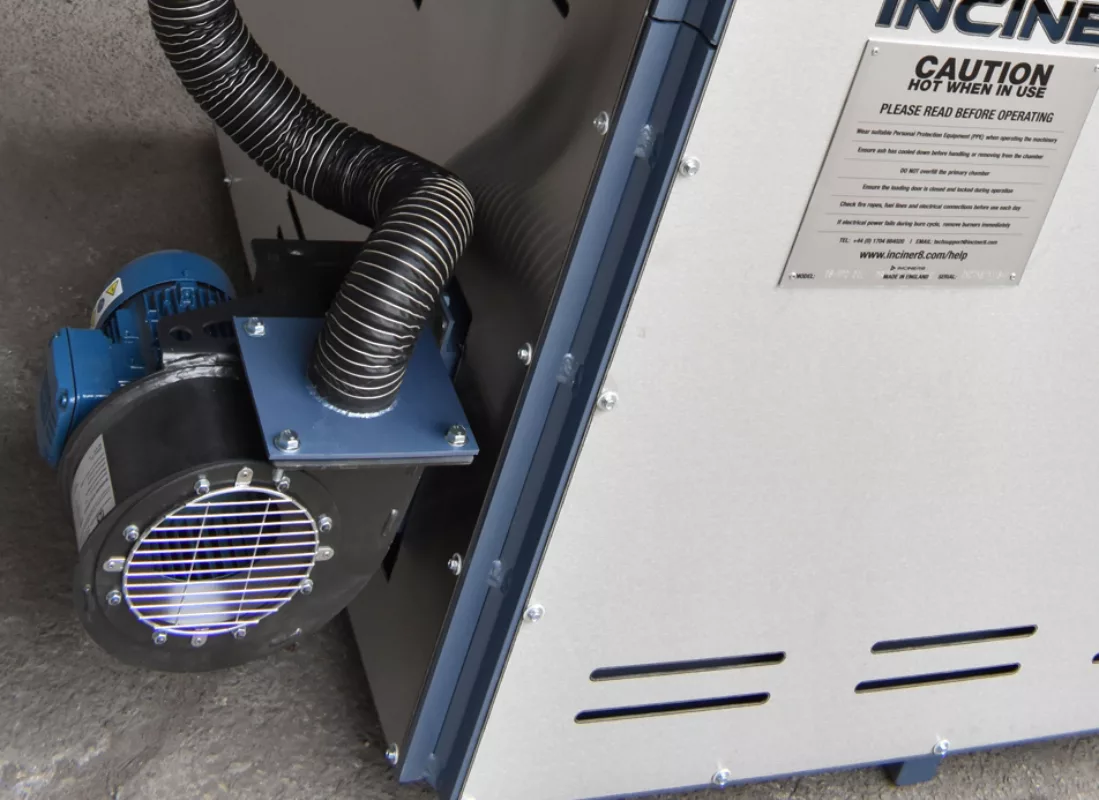

The i8-M40 is a medium capacity model from our range of specialist “M” incinerators. The addition of an advanced CE2-VFD control panel, I.D. fan and increased insulation improves performance and provides all-round suitability for many different types of medical, clinical, pharmaceutical and hazardous waste streams.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2-VFD Advanced control panel
- Tertiary air control
Applications
- Medical Laboratories
- Dental / Cosmetic Clinics
- Blood Banks / Collection
- < 250 Bed Medical Facilities
- Medical Facilities
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.36m3
Burn Rate*: up to 30kg per hour
Average Fuel Consumption: 9 – 11 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1240mm
External Width (mm): 920mm
External Height (mm): 4400mm
Door Size (mm): 0.56 x 0.56
Shipping Weight: 1520kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Optional Extras
Configuration Choices
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
