I8-M250 Medical Incinerator
Contact us for more information
i8-M250
Download
Data Sheet

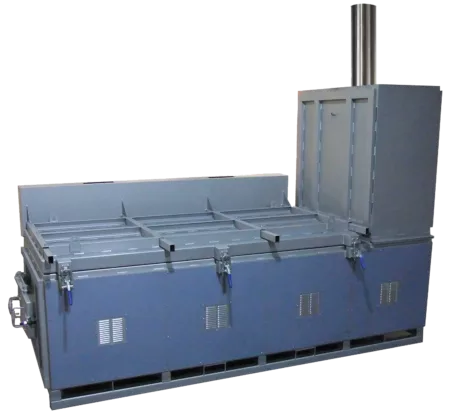

The i8-M250 is the largest system in our medium range. The model features a high capacity primary chamber and is capable of large continuous burns that can be used for a variety of medical applications.
The i8-M250 was designed to be large enough to offer impressive burn rates and batch sizes, while still being small enough to fit in a 20ft container. It features a top-loading design with a large chamber opening making it extremely easy to load bulky medical waste. This unit benefits from a large secondary chamber with afterburner for the re-burn of harmful emissions at over 850°C with a 2 second retention time.
Overview
This model can be customized with external cladding and automatic loading making it the ideal solution for industries needing to dispose of high volumes of medical, pharmaceutical or hazardous waste in an effective and environmentally conscious manner. Its large top loading aperture is designed for easy access.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Large loading door
- CE4-VFD Advanced control panel
- Tertiary air control
Applications
- Medical Laboratories
- General Medical Waste
- Infirmaries / Hospitals
- < 400 Bed Medical Facilities
- Medical Waste Collection
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 2.4m3
Burn Rate*: up to 150kg per hour
Average Fuel Consumption: 25 – 30 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 3590mm
External Width (mm): 1390mm
External Height (mm): 4640mm
Door Size (mm): 2530 x 1060mm
Shipping Weight: 8000kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
