Inciner8

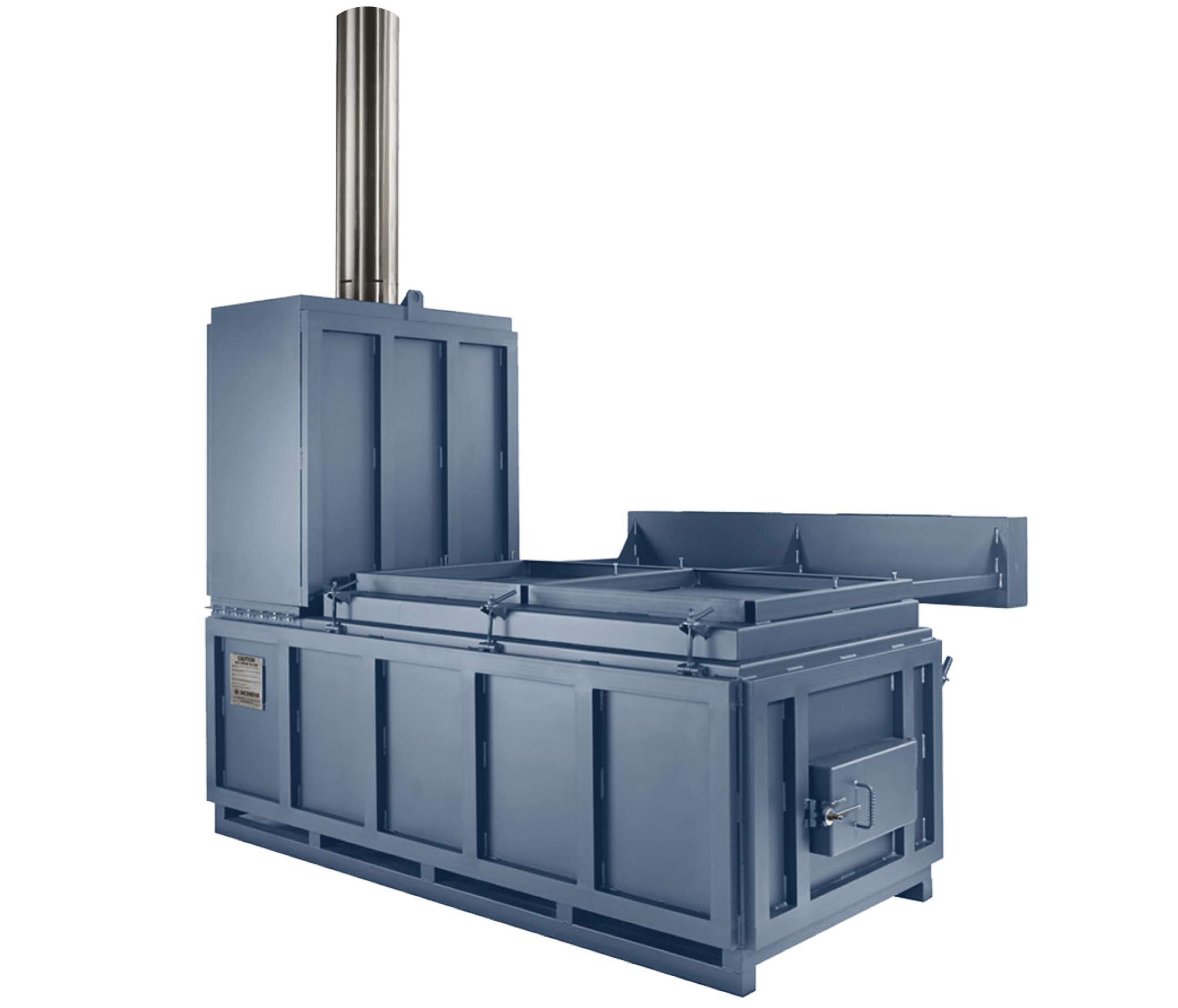

I8-M200 Medical Incinerator

Download data sheet

The i8-M200 can be used for a variety of applications, large enough to offer impressive burn rates and batch sizes, while still being small enough to fit in a 20ft container.

NO Pi8 M 200 1

The i8-M200 features a top-loading design with a large opening for bulky waste items. Like all our 'M' range models, it features a secondary chamber with an afterburner for the re-burn of harmful emissions with a 2 second retention time making it ideal for a wide range of medical waste streams.

Overview

This model can be customized with external cladding and automatic loading to make it an ideal solution for industries needing to dispose of high volumes of medical, pharmaceutical or hazardous waste in an effective and environmentally conscious manner. It has a number of accessories available including autoloaders and pollution control systems.

Features

  • Enhanced Coretex insulation
  • Multi-zone temperature control

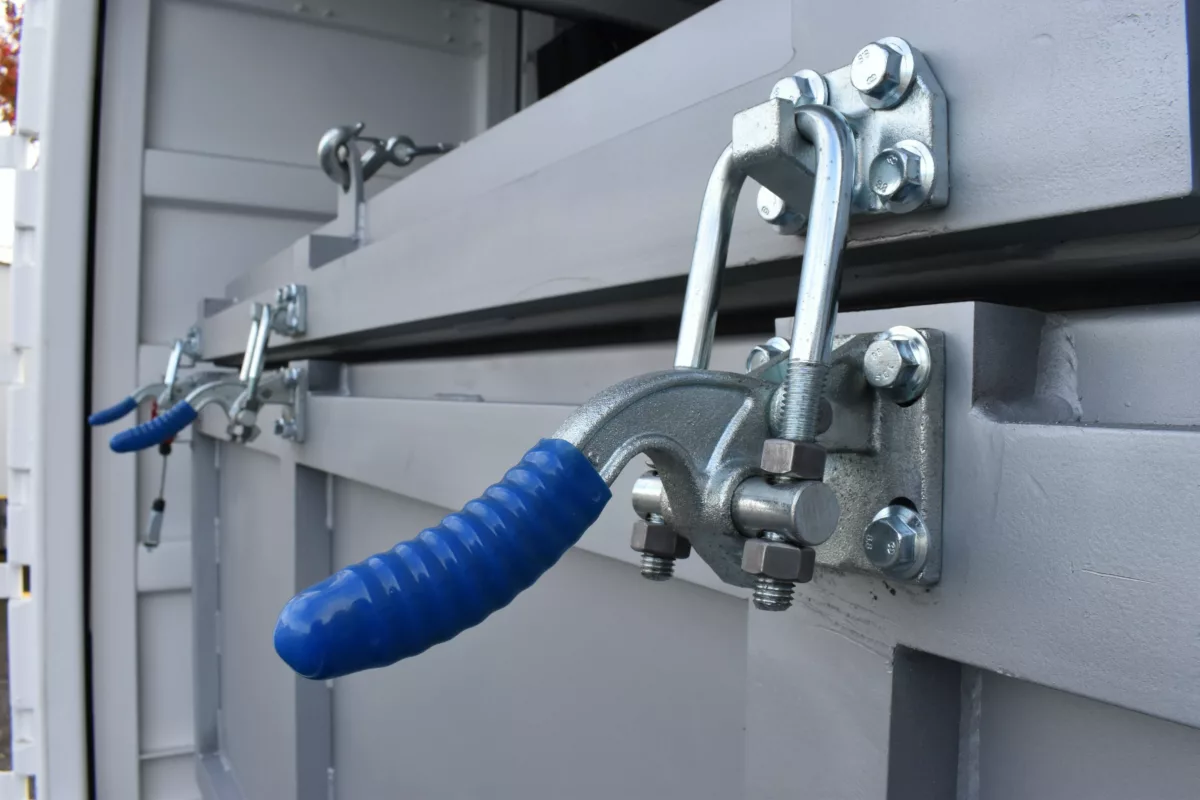

  • Large loading door
  • CE4-VFD Advanced control panel
  • Tertiary air control

Applications

  • Medical Laboratories
  • General Medical Waste
  • Infirmaries / Hospitals
  • < 400 Bed Medical Facilities
  • Medical Waste Collection
  • DSCF5477
  • DSC 0339
  • DSC 0347
  • DSC 0342
  • DSC 0344
Made in britain

Hand-built in the UK

All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.

We can also assist you in the preparation for your planning or permit application where required.

Technical specifications

Operational Specifications

Combustion Chamber Volume (m3)
1.92m3
Burn Rate*
up to 100kg per hour
Average Fuel Consumption
20 - 25 ltrs p/h
Operational Temperature
> 850°C
Gas Retention in Secondary Chamber
2 secs
Temperature Monitoring
Yes
Average ash residue (%)
3%
Thermostatic Device
Yes

Physical specifications

External Length (mm)
3070mm
External Width (mm)
1370mm
External Height (mm)
4390mm
Door Size (mm)
2040 x1060
Shipping Weight
5000kg

For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.

Configuration choices

Optional extras
