I8-M15 Medical Incinerator
Contact us for more information
i8-M15
Download
Data Sheet

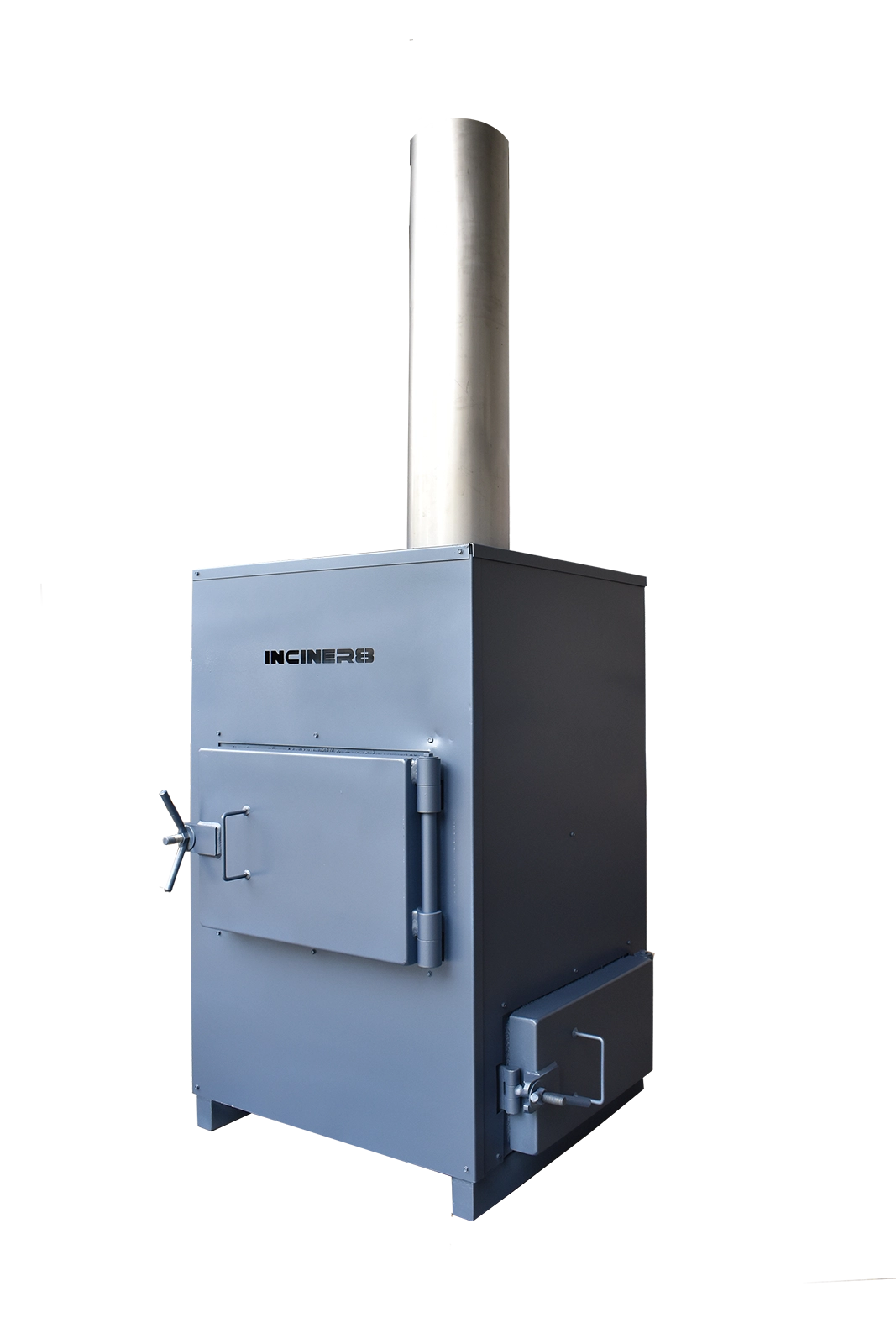

I8-M15 Medical waste incinerator is our smallest and most compact solution. You get controlled air incineration, providing optimal combustion conditions for different waste types.

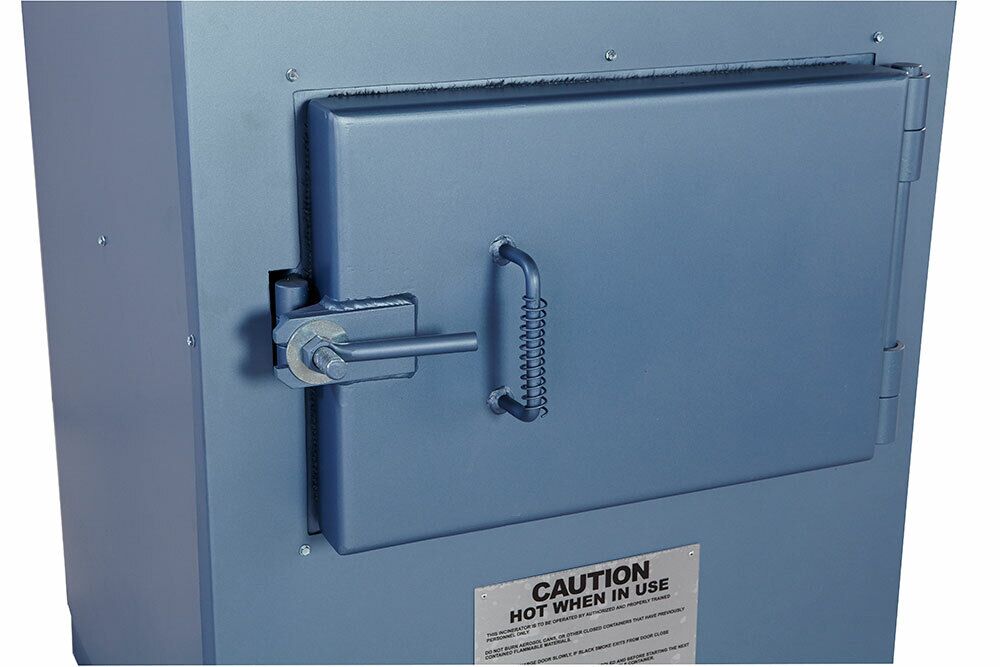

The i8-M15 is our smallest medical incinerator and has been designed to be as compact as possible whilst delivering performance that outweighs its overall footprint. It has been optimised for medical waste disposal benefitting from a front loading door, internal grates and clinical exterior design making it the ideal option for small hospitals and similar establishments.
Overview

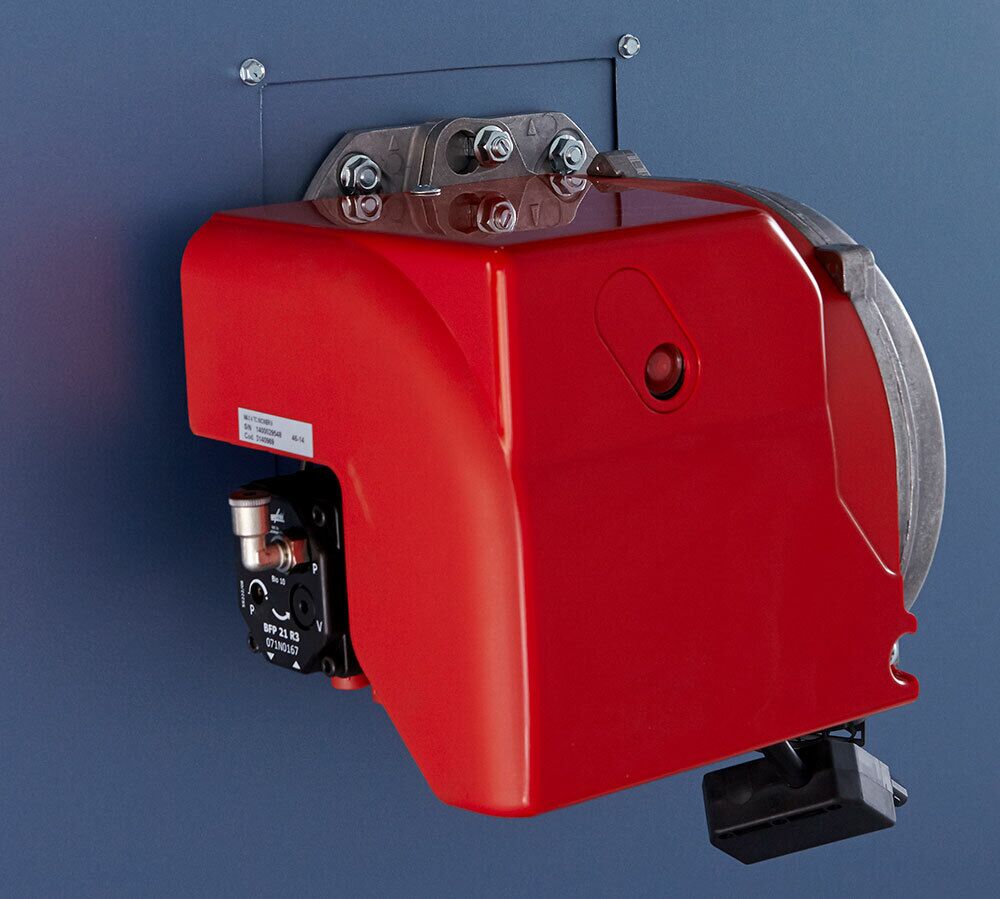

The i8-M15 is a low capacity specialist incinerator which is optimised for medical waste disposal benefiting from a front-loading door, internal grates and clinical exterior design making it the ideal option for small hospitals and similar establishments. This unit benefits from a secondary chamber with afterburner.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel

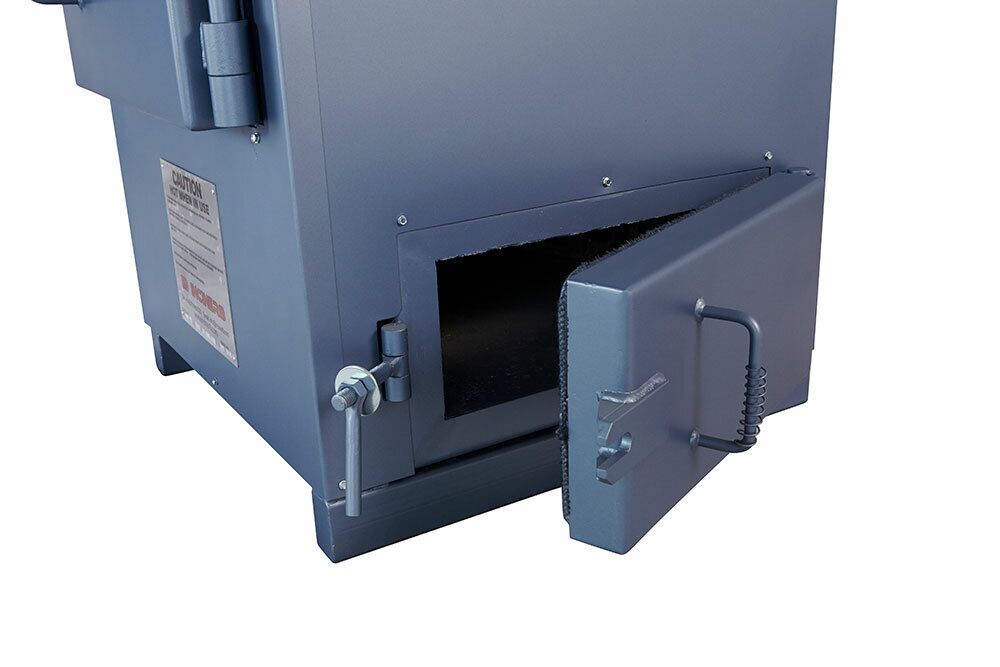

- Removable combustion grate
Applications
- Dental / Cosmetic Clinics
- Blood Banks / Collection
- Nursing Homes
- Centers for Disease Control
- < 150 Bed Medical Facilties
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.13m3
Burn Rate*: up to 20kg per hour
Average Fuel Consumption: 4 – 5 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 750mm
External Width (mm): 750mm
External Height (mm): 2720mm
Door Size (mm): 0.50 x 0.39
Shipping Weight: 652kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Optional Extras
Configuration Choices
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
