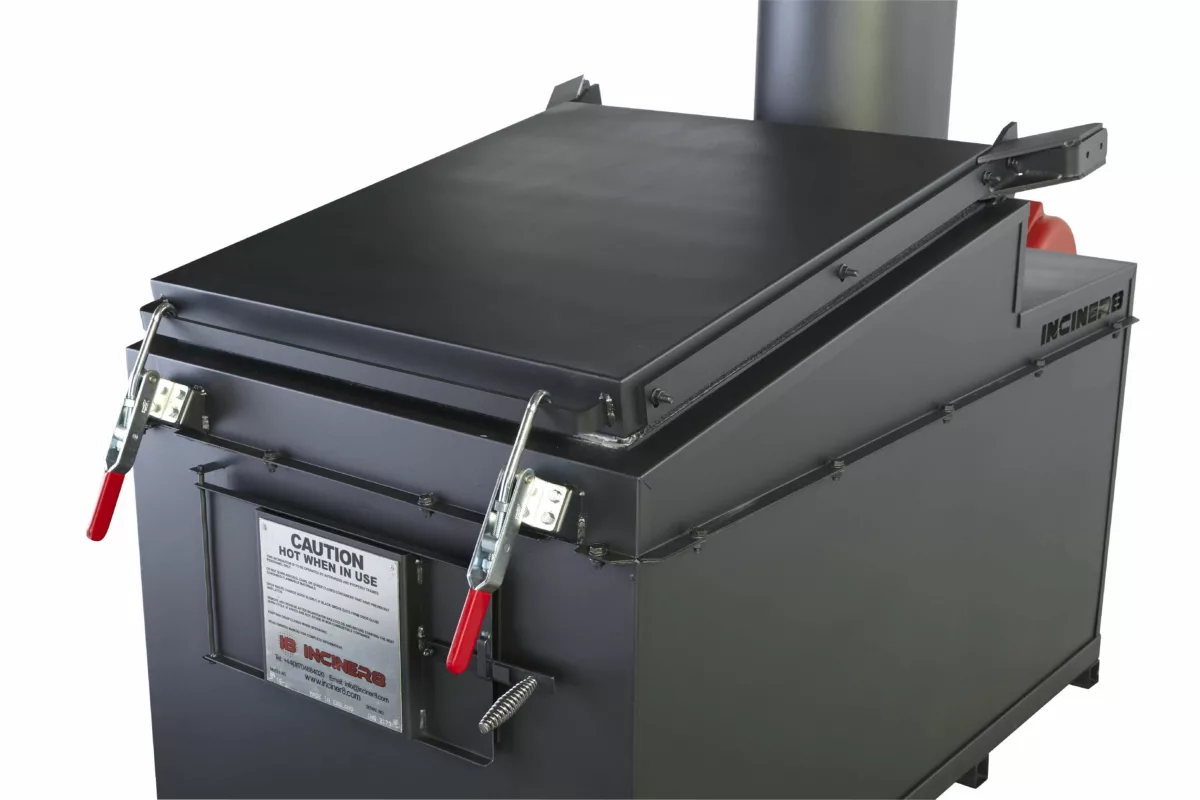

I8-55G General Incinerator

I8-55G model, a great investment, is a mid range incinerator.

The i8-55G General Incinerator is one of the most popular models in our medium capacity range due to its simple, effective use as a multi-purpose incinerator with suitability for disposing of general and medical waste. The addition of advanced secondary chamber technology with a gas retention time of 2.0 seconds allows to i8-55A to comply with stringent environmental standards for various types of waste.


I8-55G Incinerator


Typical General Waste Applications


  • Military Operations
  • Remote Housing
  • Boarding Schools
  • Industrial Waste < 500kg day
  • < 150 People Comunities

All our incinerators are hand-built in the UK by time-served welders and fabricators.

Our award winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay. We can also assist you in the preparation for your planning or permit application where required.


Technical Specs

Operational Specs Physical Specs
Combustion Chamber Volume (m3) 0.54m3 External Length (mm) 1520mm
Burn Rate*
up to 65kg per hour
External Width (mm) 920mm
Average Fuel Consumption 10 - 13 ltrs p/h External Height (mm) 4480mm
Operational Temperature > 850°C Door Size (mm) 720 x 830mm
Gas Retention in Secondary Chamber 2 secs Shipping Weight 2100kg
Temperature Monitoring Yes
Average ash residue (%) 3% *Subject to calorific value of waste stream
Thermostatic Device Yes For reference only, not to be used for installation purposes.
You can also compare our models on our incinerator quick reference page


Click here to view Incinerator Parts.

Accessories & Shipping Options


Configuration Options

Inciner8 Mobile Option Mobile/Trailer Mobile/Trailer
Inciner8 Sheltered Option ShelterPrefabricated Shelter
Inciner8 Containerised Option Containerised Containerised

Optional Extras:

Heat Exchanger Heat Exchanger Heat Exchanger
Venturi Scrubber Venturi Scrubber Venturi Scrubber
Pollution Control Systems Pollution Control Systems Pollution Control Systems

Spare Parts:

Fire rope, Refractory kit, Mastic, Burner, Thermocouple 1 year spare parts package
Fuel Tank Fuel tank and piping kit
Electricity Generator Electricity generator
