I8-75G General Incinerator
Contact us for more information

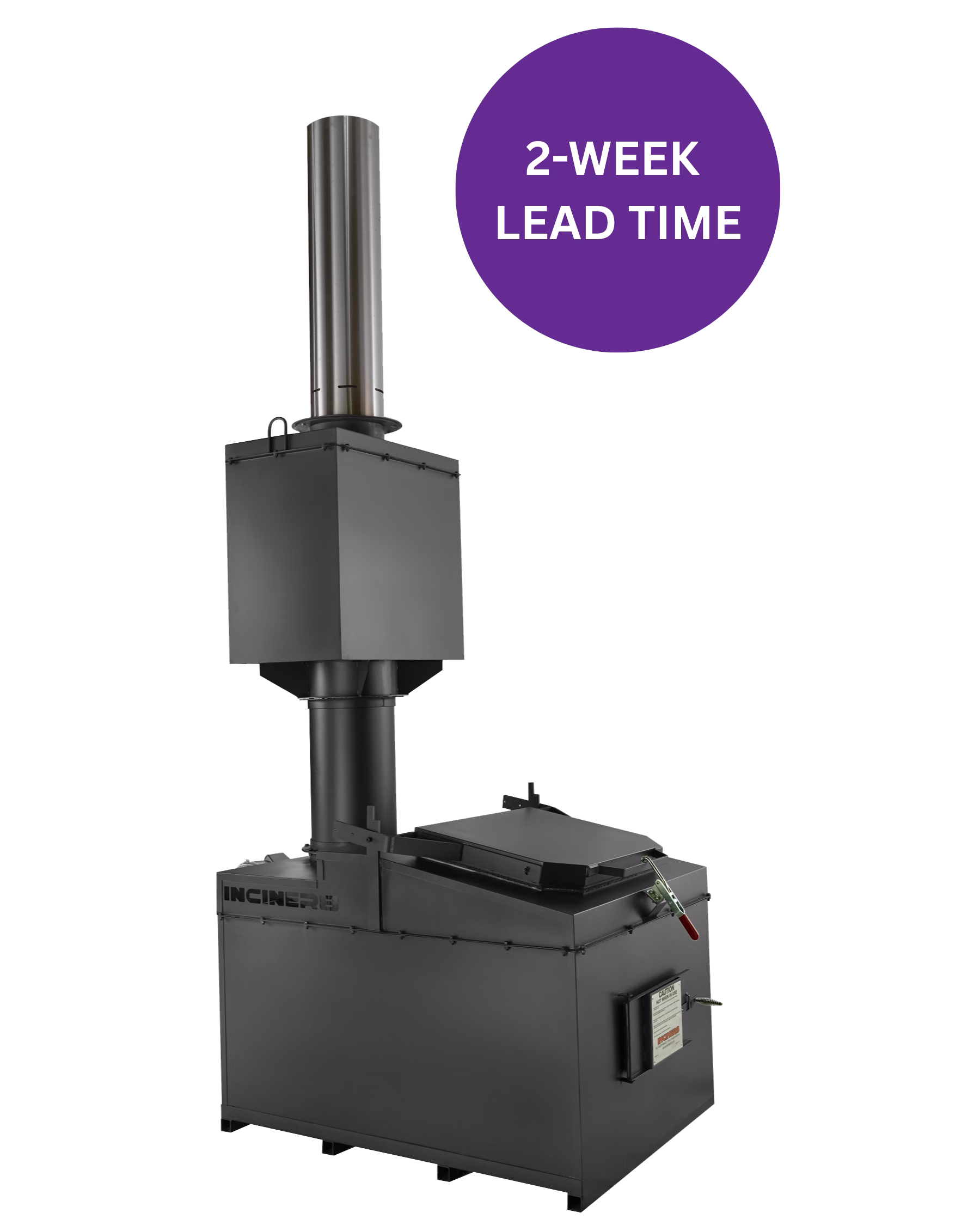

i8-75G
Download
Data Sheet
The i8-75G General Incinerator is one of the most popular models in our medium capacity range due to its simple, effective use as a multi-purpose incinerator with suitability for disposing of general solid waste and medical waste.
Using the same technology and design as the i8-55G, the i8-75G increases the capacity of the primary chamber capacity allowing for greater burn rates and the capability to load large waste streams.
Overview
It features all the same great benefits whilst dealing with waste more efficiently than ever before.The addition of advanced secondary chamber technology with a gas retention time of 2.0 seconds allows the i8-75G to meet with stringent environmental standards for various types of waste.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Small operating footprint
Applications
- Camps
- OiI & Gas Facilities
- Universities & Colleges
- < 200 People Communities
- Industrial Waste < 600kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.75m3
Burn Rate*: up to 50kg per hour
Average Fuel Consumption: 11 – 15 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1610mm
External Width (mm): 1190mm
External Height (mm): 4680mm
Door Size (mm): 990 x 920
Shipping Weight: 2450kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
