I8-55G General Incinerator
Contact us for more information
i8-55G
Download
Data Sheet

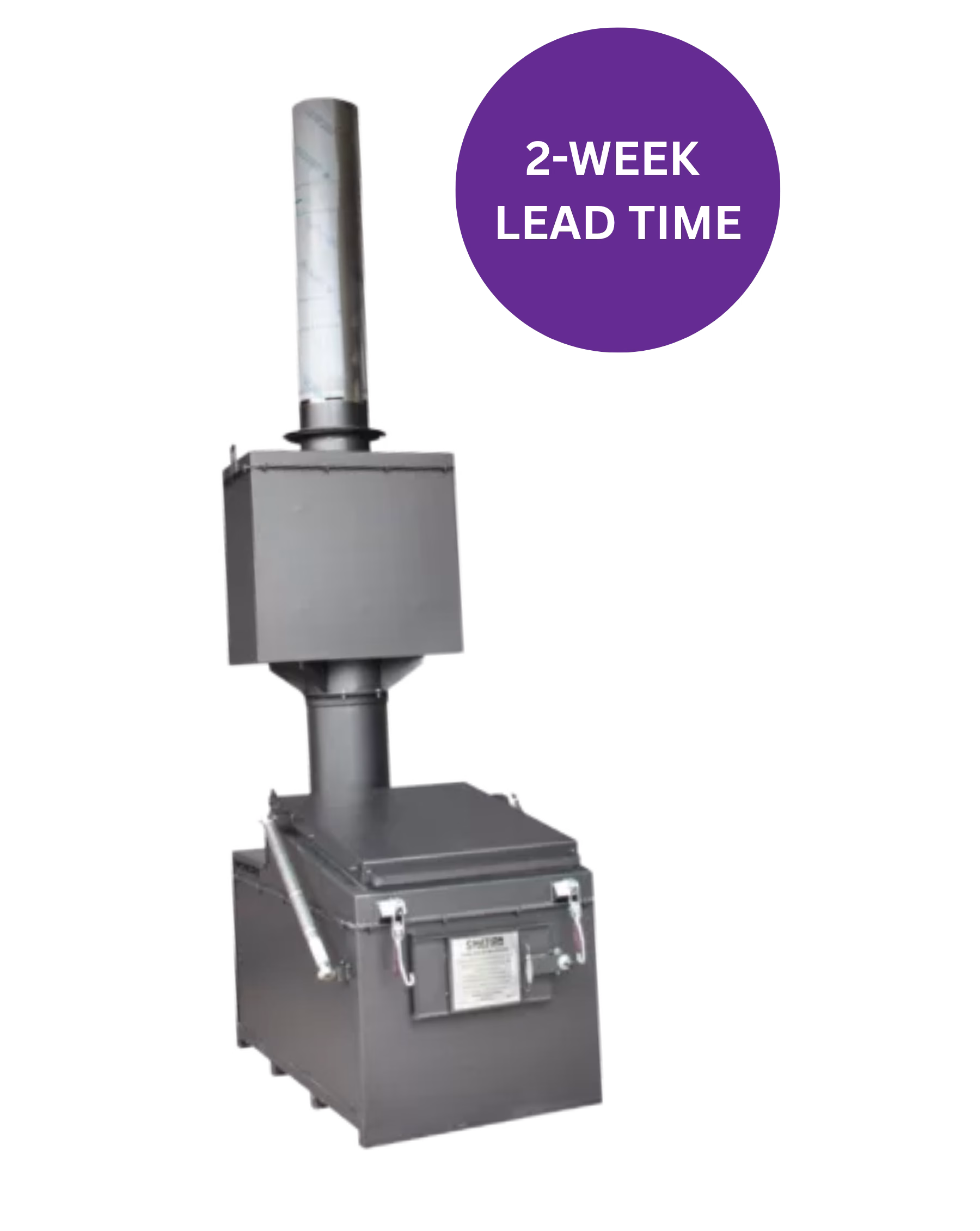

One of our most popular models is our i8-55G. It is completely flexible and customisable making it one of our most versatile incinerators.

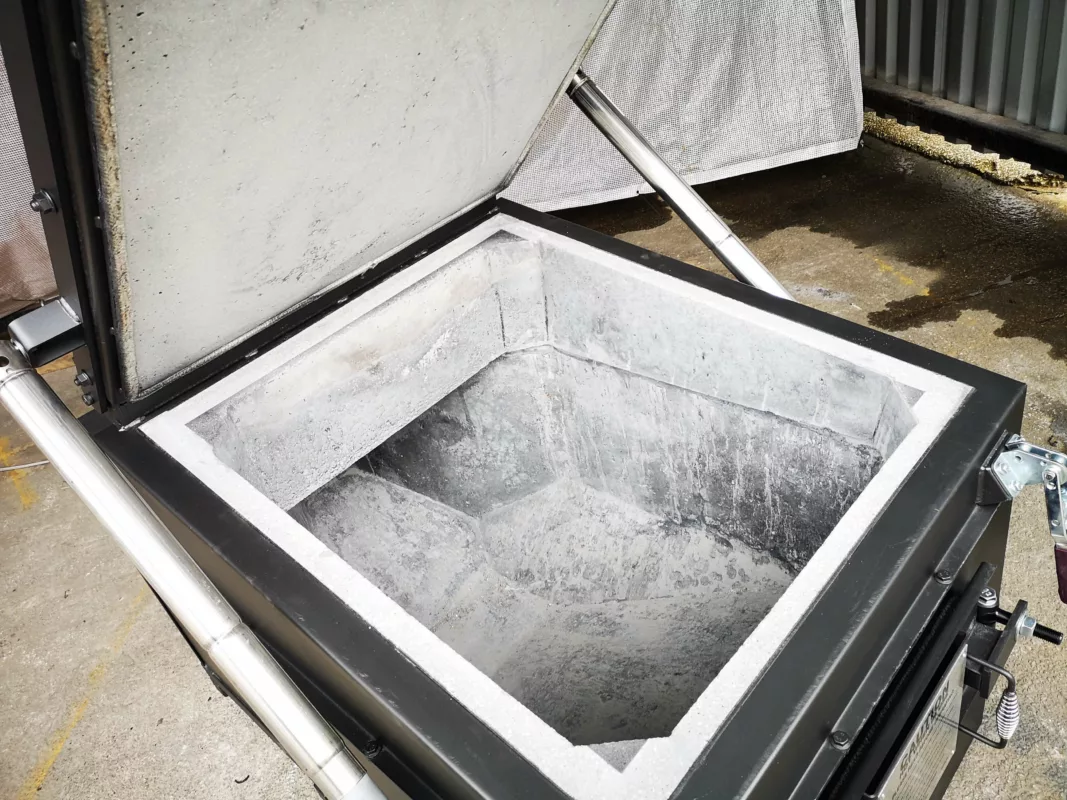

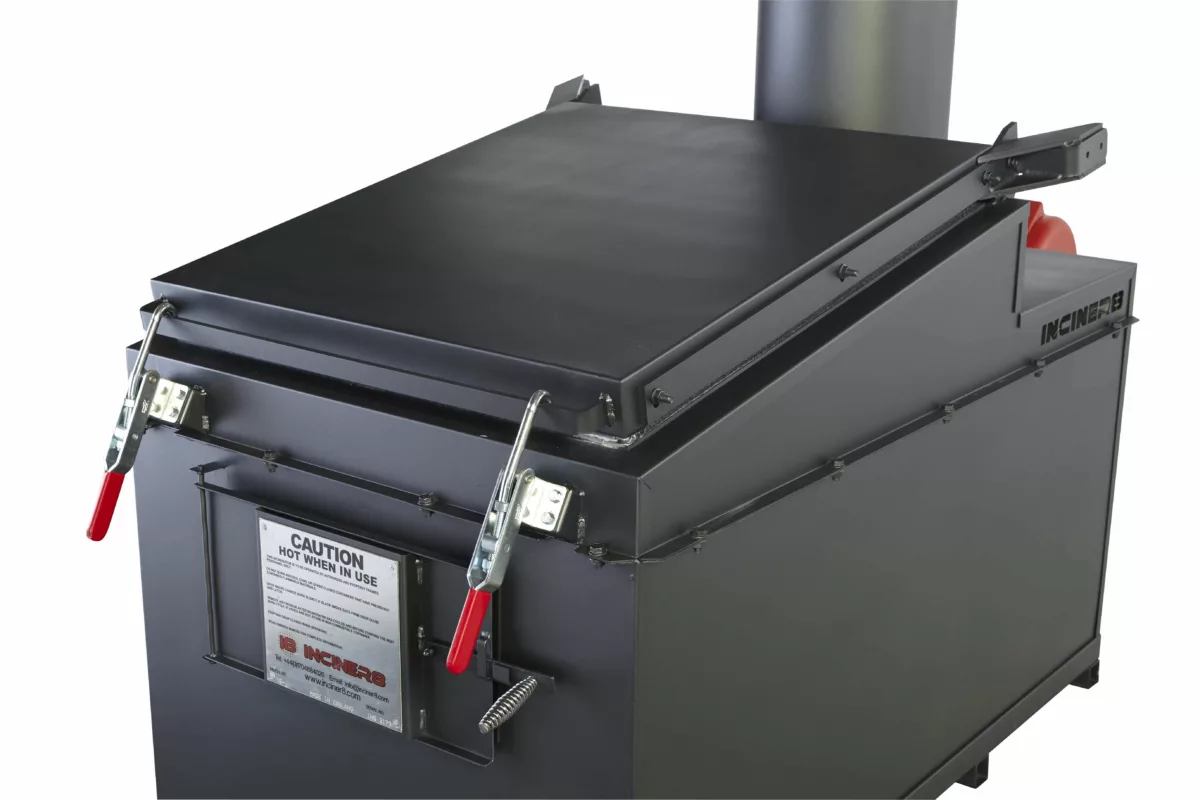

The top-loading design means liquids are well retained within the system during combustion and its smaller size belies high efficiency and impressive burn rates.
The i8-55G General Incinerator is one of the most popular models in our medium capacity range due to its simple, effective use as a multi-purpose incinerator with suitability for disposing of general and medical waste.
Overview
The addition of advanced secondary chamber technology with a gas retention time of 2.0 seconds allows to i8-55G to comply with stringent environmental standards for various types of waste.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Small operating footprint
Applications
- Camps
- Military Operations
- OiI & Gas Facilities
- < 150 People Communities
- Industrial Waste < 500kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.54m3
Burn Rate*: up to 40kg per hour
Average Fuel Consumption: 11 – 13 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1520mm
External Width (mm): 920mm
External Height (mm): 4480mm
Door Size (mm): 720 x 830
Shipping Weight: 2100kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
