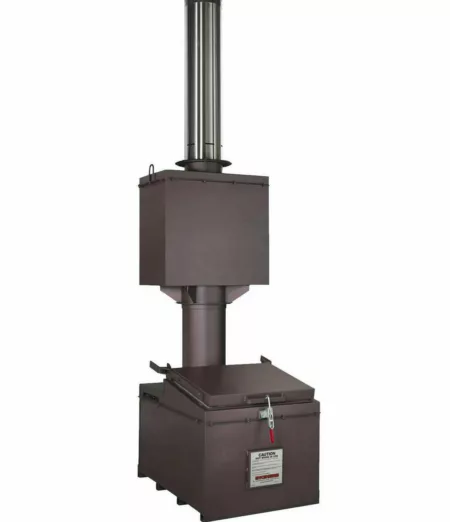

I8-40G General Incinerator
Contact us for more information
Our i8-40G builds upon the success of our i8-20G and is a simple and effective incinerator from our small range. It excels due to its suitability for various non-hazardous waste types such as wood, paper, cardboard and other uncontaminated materials.
The i8-40G General Incinerator fits right in the middle of our standard range in terms of capacity and is a simple, effective multi-purpose incinerator with suitability for disposing of general and medical waste.
Overview
This unit benefits from an advanced secondary chamber with afterburner for the re-burn of harmful emissions with a 2 second retention time.
Giving you a reliable total waste solution.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Small operating footprint
Applications
- Camps
- Military Operations
- OiI & Gas Facilities
- < 120 People Communities
- Industrial Waste < 500kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.36m3
Burn Rate*: up to 30kg per hour
Average Fuel Consumption: 9 – 11 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1240mm
External Width (mm): 920mm
External Height (mm): 4400mm
Door Size (mm): 560 x 560
Shipping Weight: 1520kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Optional Extras
Configuration Choices
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
