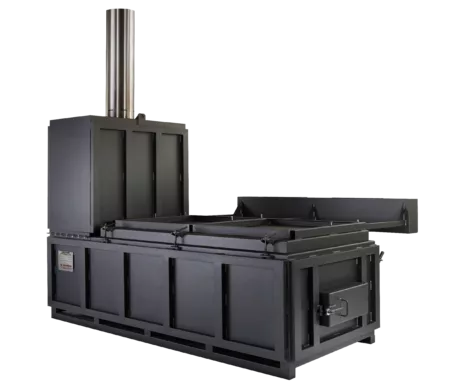

I8-250G General Incinerator

Contact us for more information

I8-250G model is the first of our larger format models.

It has the internal capacity to handle larger single items that can be easily loaded via its wide primary chamber door.

The model features a high capacity primary chamber and is capable of large continuous burn cycles that can be used for a variety of applications.

Overview

It is suitable for various waste streams such as wood, paper, cardboard and plastics. The large capacity, advanced secondary chamber and options for automatic waste loading provide an effective and sustainable waste disposal method for many different types of industries generating a high daily volume of waste.

Features

  • Enhanced Coretex insulation
  • Multi-zone temperature control
  • Large loading door
  • CE2 Advanced control panel
  • Excellent liquid retention

Applications

  • Military Operations
  • Remote Housing
  • Bigger Camps
  • < 1500 People Communities
  • Industrial Waste < 2000kg day

Technical Specifictions

Operational Specifications

Combustion Chamber Volume (m3): 2.40m3
Burn Rate*: up to 220kg per hour
Average Fuel Consumption: 25 – 30 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes

Physical Specifications

External Length (mm): 3590mm
External Width (mm): 1390mm
External Height (mm): 4640mm
Door Size (mm): 2530 x 1660mm
Shipping Weight: 8000kg

For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.

Configuration Choices

Optional Extras

Made in Britain

Hand-built in the UK

All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.

We can also assist you in the preparation for your planning or permit application where required.
