I8-200G General Incinerator
Contact us for more information
i8-200G
Download
Data Sheet

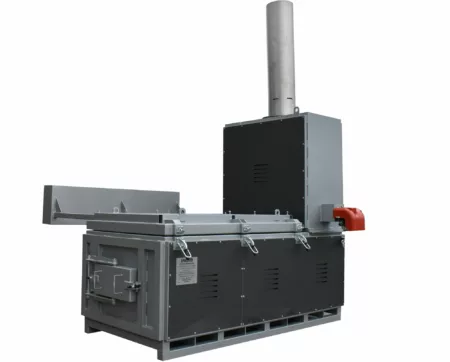

The i8-200G is the middle incinerator in our medium lineup.
It can be used for a variety of applications, large enough to offer impressive burn rates and batch sizes, whilst still being small enough to fit in a 20ft container.
The i8-200G features a top-loading design with a large opening for bulky waste items. Like all our ‘G’ range models it features a secondary chamber with an afterburner for the re-burn of harmful emissions with a 2 second retention time.
Overview
This general waste incinerator is suitable for various waste streams such as solid waste, wood, paper, cardboard and plastics. The large capacity, advanced secondary chamber and options for automatic waste loading provides an effective and sustainable waste disposal method for many different types of industries generating a high daily volume of waste.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control

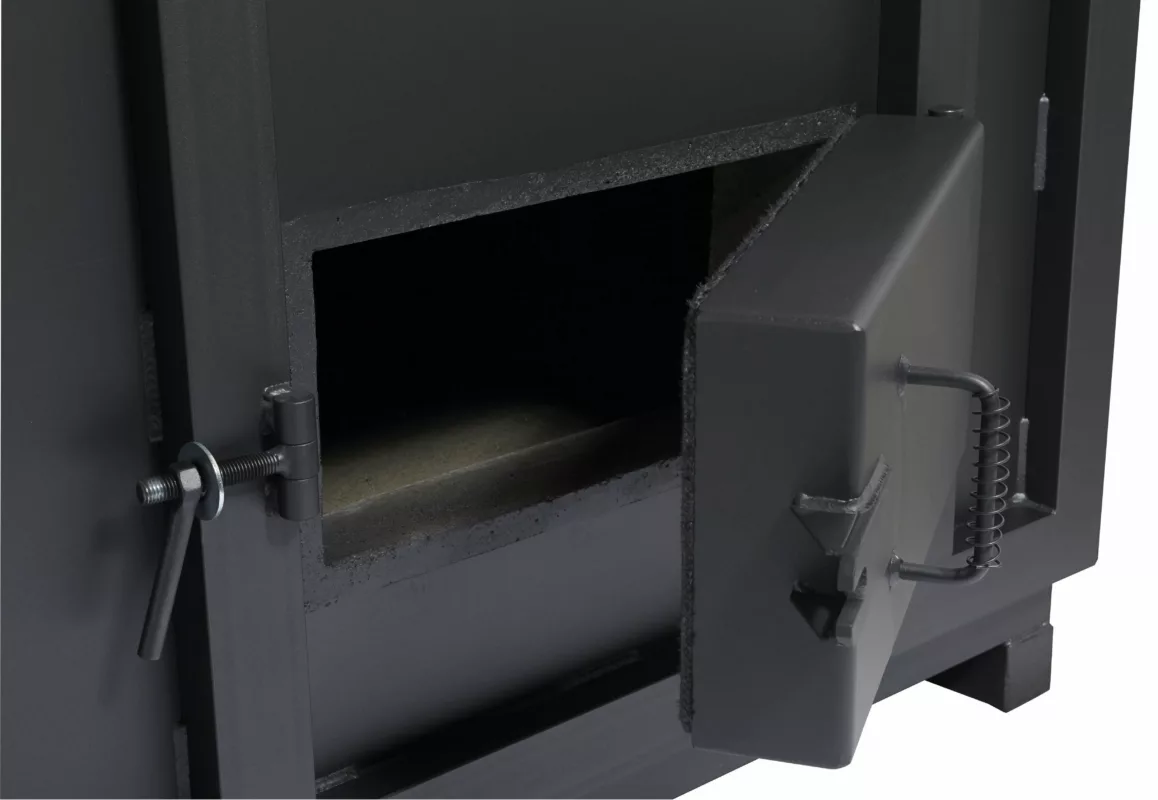

- Large loading door
- CE2 Advanced control panel
- Excellent liquid retention
Applications
- Military Operations
- Remote Housing
- Bigger Camps
- < 1000 People Communities
- Industrial Waste < 1500kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 1.92m3
Burn Rate*: up to 180kg per hour
Average Fuel Consumption: 20 – 25 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 3070mm
External Width (mm): 1370mm
External Height (mm): 4390mm
Door Size (mm): 2040 x 1060mm
Shipping Weight: 5000kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
