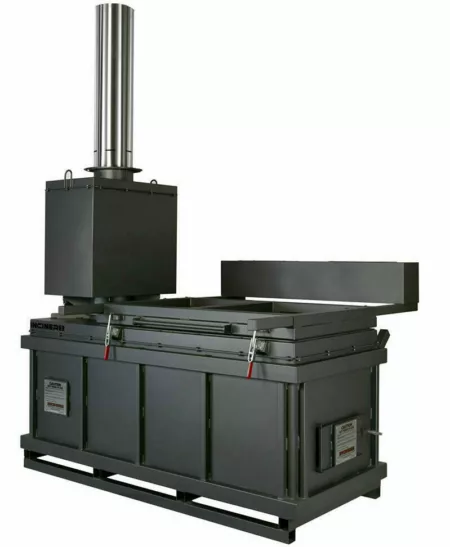

I8-140G General Incinerator
Contact us for more information
i8-140G
Download
Data Sheet
The i8-140G is the first in our range of high capacity general waste incinerators.
Perfect for a variety of waste streams such as wood, paper, cardboard and plastics.
The i8-140G can be used for a variety of applications. It provides an effective and sustainable waste disposal solution for many different types of industries generating a high daily volume of waste.
Overview
This models large capacity, advanced secondary chamber and options for automatic waste loading provides an effective and sustainable waste disposal option for many different types of industries that generate a high volume of waste.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Large loading door
Applications
- Camps
- Military Operations
- Universities & Colleges
- < 500 People Communities
- Industrial Waste < 1000kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 1.35m3
Burn Rate*: up to 100kg per hour
Average Fuel Consumption: 14 – 19 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 2540mm
External Width (mm): 1100mm
External Height (mm): 4180mm
Door Size (mm): 1450 x 750mm
Shipping Weight: 3100kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
