I8-1000G General Incinerator

Contact us for more information

The i8-1000G has the highest capacity of our range of general waste incinerators with suitability for various waste streams such as solid waste, MSW, RDF, Furniture, wood, paper, cardboard, and plastics.

The flagship model within our general lineup is the i8-1000G. It took over three years to develop and is are the forefront of combustion technology, offering impressive burn rates and large batch sizes while still achieving some of the lowest emissions in its class.

Overview

The i8-1000G can be customised with external cladding and automatic loading. It also has the benefit of being fitted with our smartpanel technology allowing operators to remotely monitor performance and see reports from anywhere in the world.

Features

  • Enhanced Coretex insulation
  • Multi-zone temperature control

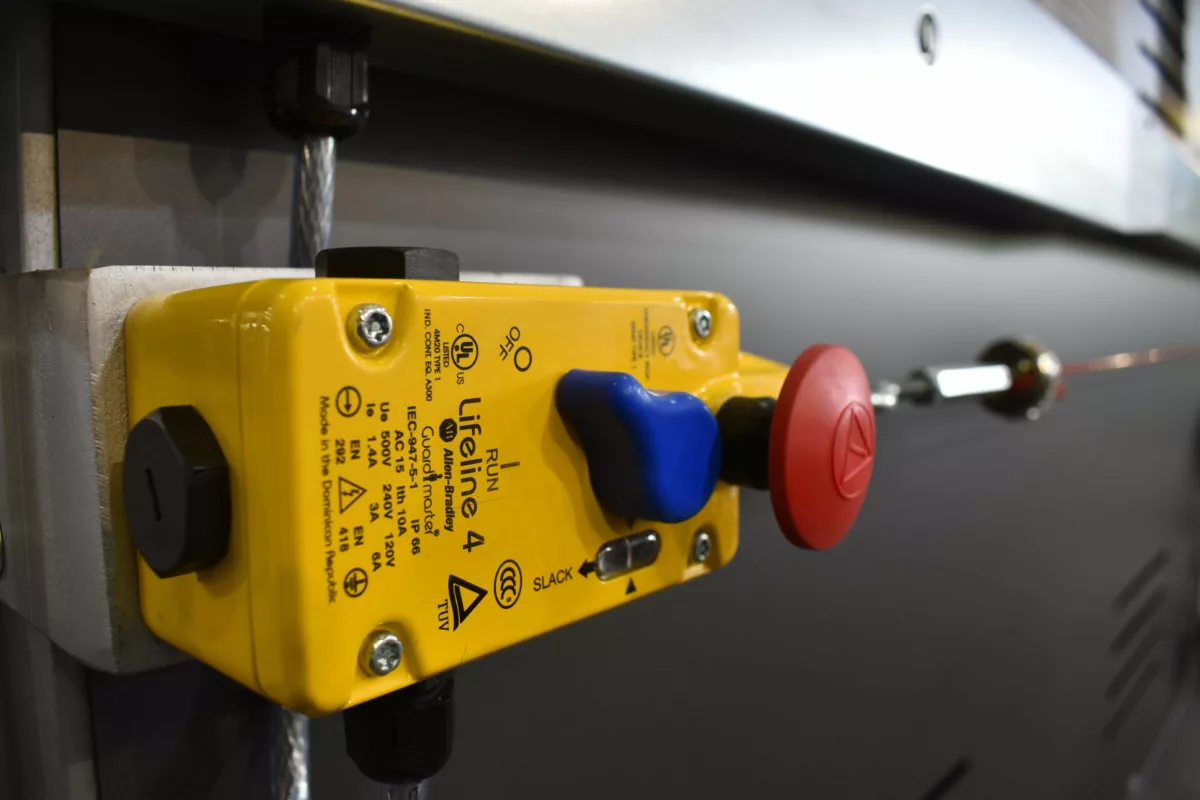

  • Additional safety features
  • CE2 Advanced control panel

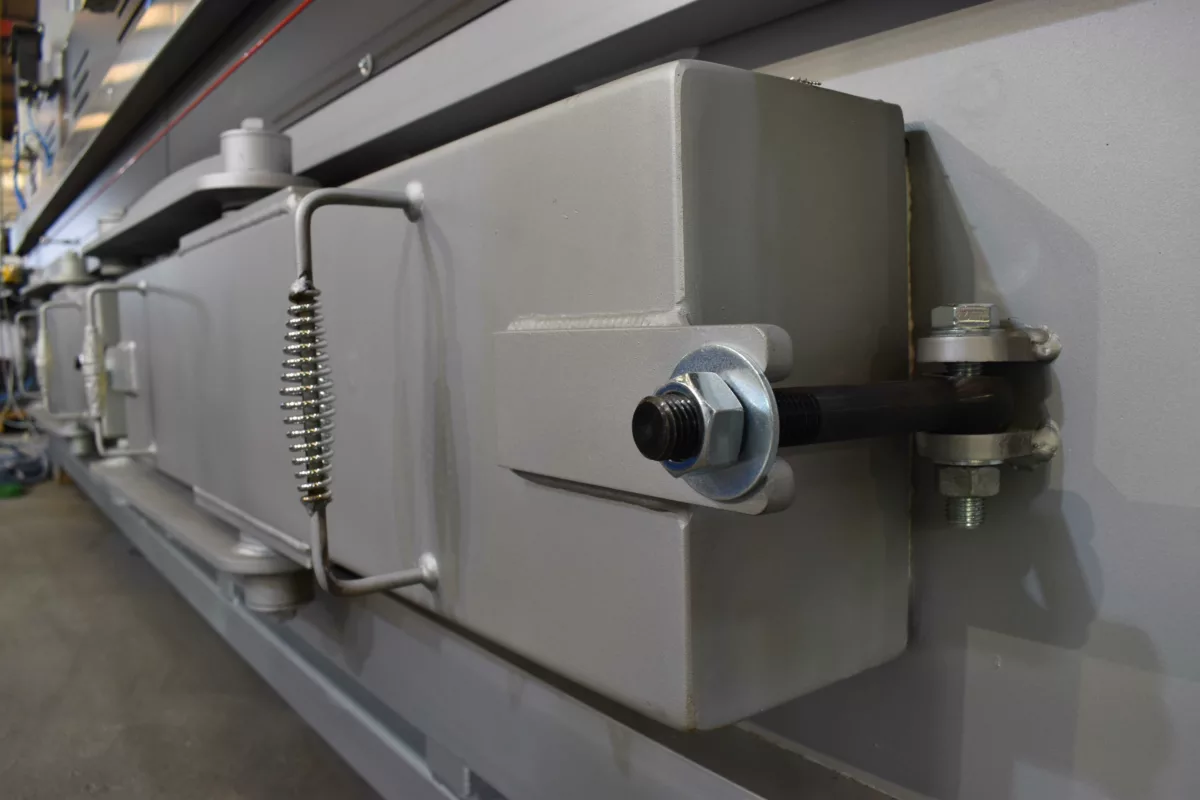

  • Hydraulic doors

Applications

  • Landfill Alternative
  • Recycling Centres
  • Bigger Camps
  • < 5000 People Communities
  • Industrial Waste < 8000kg day

Technical Specifictions

Operational Specifications

Combustion Chamber Volume (m3): 8.7m3
Burn Rate*: up to 600kg per hour
Average Fuel Consumption: 40 – 50 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes

Physical Specifications

External Length (mm): 6540mm
External Width (mm): 1840mm
External Height (mm): 6260mm
Door Size (mm): 4000 x 1500mm
Shipping Weight: 21500kg

For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.

Configuration Choices

Optional Extras

Made in Britain

Hand-built in the UK

All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.

We can also assist you in the preparation for your planning or permit application where required.
