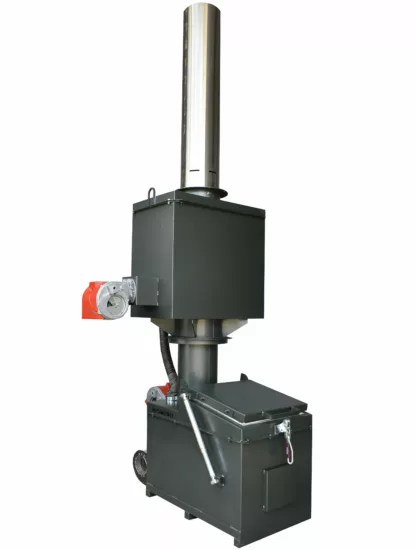

I8-20A model is a small scale incinerator. This model is a controlled air incinerator.

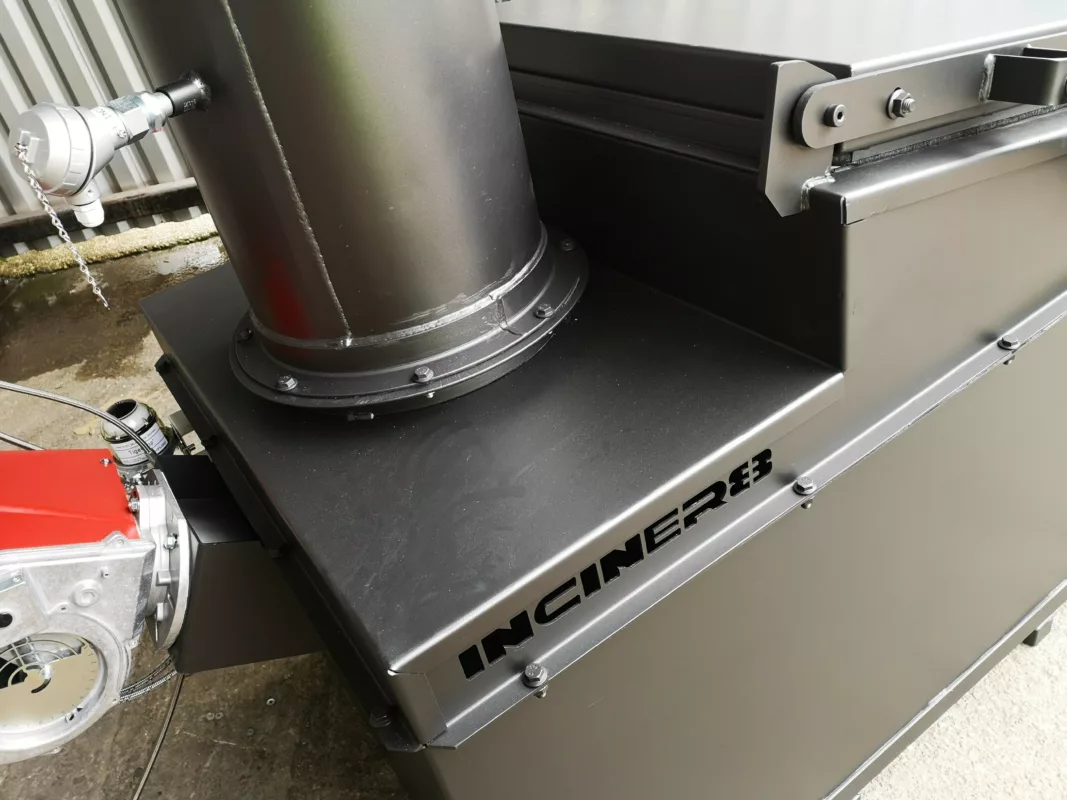

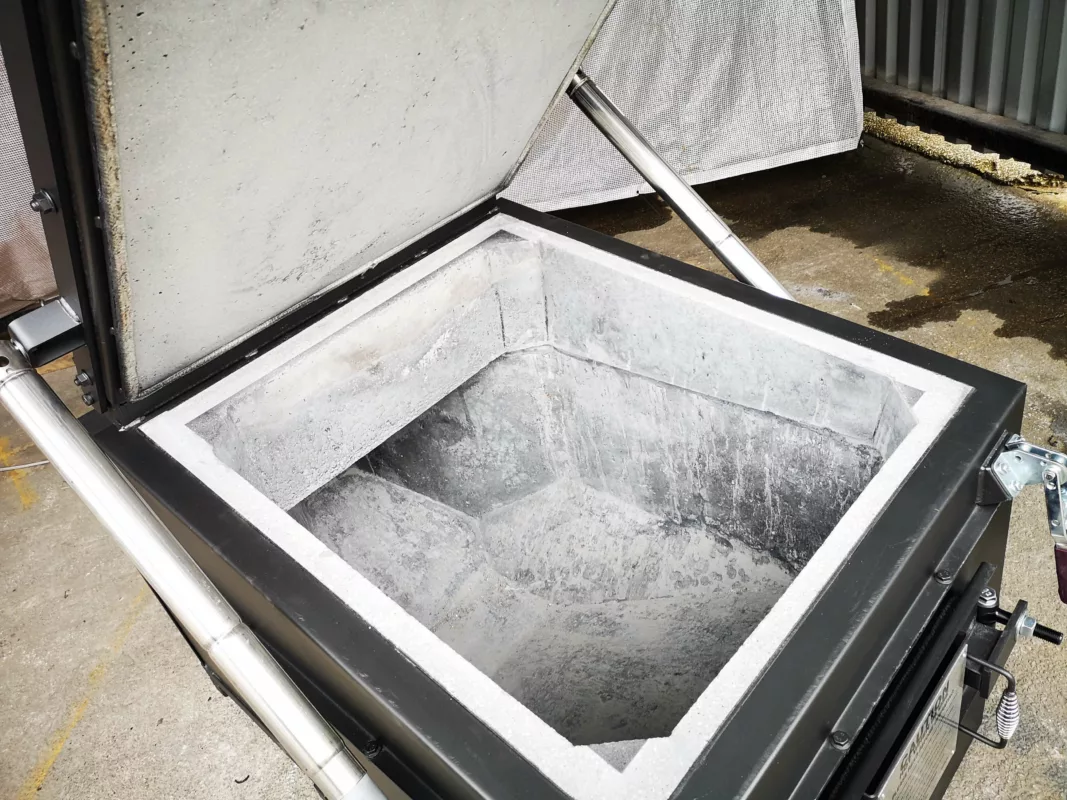

It is designed for providing optimal combustion conditions for different waste types. The top loading design provides liquid retention making this incinerator ideal for incineration of many different waste types. This unit benefits from a secondary chamber with afterburner for the re-burn of harmful emissions with a 2 second retention time.
All our incinerators are hand-built in the UK by time-served welders and fabricators.
Our award winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay. We can also assist you in the preparation for your planning or permit application where required.
| Operational Specs | Physical Specs | ||
|---|---|---|---|
| Combustion Chamber Volume (m3) | 0.18m3 | External Length (mm) | 1070mm |
| Burn Rate* |
up to 30kg per hour
|
External Width (mm) | 660mm |
| Average Fuel Consumption | 7 - 9 ltrs p/h | External Height (mm) | 4310mm |
| Operational Temperature | > 850°C | Door Size (mm) | 490 x 490mm |
| Gas Retention in Secondary Chamber | 2 secs | Shipping Weight | 1230kg |
| Temperature Monitoring | Yes | ||
| Average ash residue (%) | 3% | For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates. | |
| Thermostatic Device | Yes | ||
Heat Exchanger
Venturi Scrubber
Pollution Control Systems
1 year spare parts package
Fuel tank and piping kit
Electricity generator
