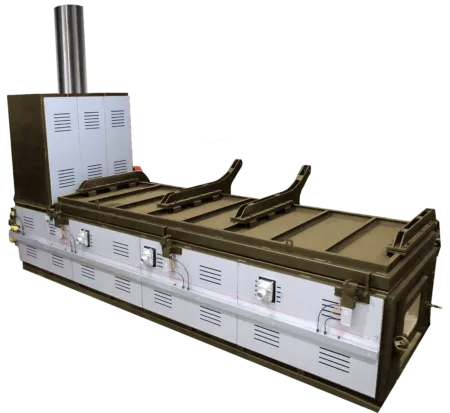

I8-700 model is amongst our largest incinerators. You get controlled air incineration as standard, providing optimal combustion conditions for different waste types, vital for seasonal and operational variations in your organisation. Top loading design provides liquid retention making this incinerator ideal for incineration of many different waste streams. Gives you the size, performance and flexibility. Unique value, high quality and total solutions.
Average emissions / EU standards On basic incinerators (with secondary chamber)
(1/2 hr av)
|Total dust||30 mg/m3||12 mg/m3|
|Sulphur dioxide||200 mg/m3||116,3 mg/m3|
|Nitrogen dioxide*||400 mg/m3||361,9 mg/m3|
|Carbon monoxide||100 mg/m3||98,7 mg/m3|
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay. We can also assist you in the prerparation for your planning or permit application where required.
|Operational Specs||Physical Specs|
|Combustion Chamber Volume (m3)||6.75m3||External Length (mm)||6230mm|
up to 800kg per hour
|External Width (mm)||1910mm|
|Average Fuel Consumption||65 kg per hour||External Height (mm)||5760mm|
|Operational Temperature||850 - 1320°C||Shipping Weight||16000kg|
|Gas Retention in Secondary Chamber||2 secs|
|Average ash residue (%)||3%|
