I8-250 Animal Incinerator

Summary

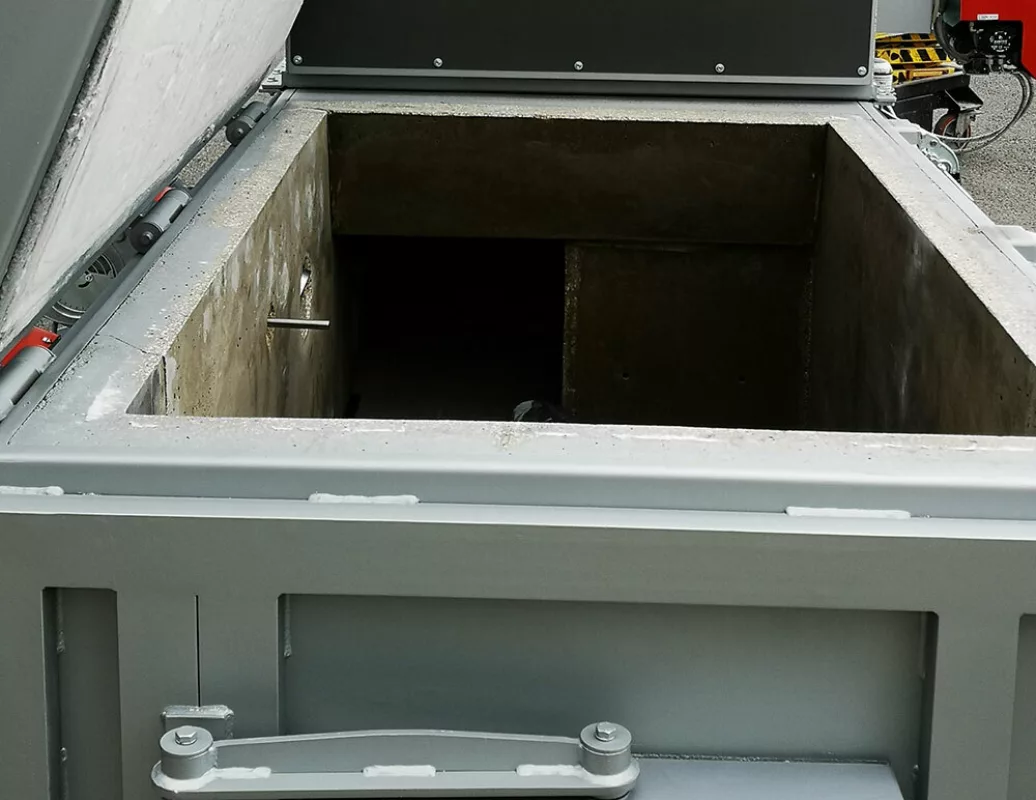

You get controlled air incineration, offering optimal combustion conditions and careful management for most waste streams. Its large opening gives you the best apeture with top loading design for easy access and continous loading. This unit benefits from a large secondary chamber with afterburner for the re-burn of harmful emissions at over 1100oC with a 2 second retention time. Offers you real economies around animal waste and fallen stock.



Emission Data

Average emissions / EU standards On basic incinerators (with secondary chamber)

Parameter Limits
(1/2 hr av)
Measured
Total dust 30 mg/m3 12 mg/m3
Sulphur dioxide 200 mg/m3 116,3 mg/m3
Nitrogen dioxide* 400 mg/m3 361,9 mg/m3
Carbon monoxide 100 mg/m3 98,7 mg/m3

For more information on how our I8-250 Incinerators can help you with Animal waste

Call us now on +44 (0)1704 884020 or use the Contact Us page.

Typical Animal Waste Applications

  • Butcheries

  • Veterinary Laboratories
  • Animal Research Centers
  • Slaughterhouse < 3000kg day
  • Animal Waste Collection

All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay. We can also assist you in the prerparation for your planning or permit application where required.

Technical Specs

Operational Specs Physical Specs
Combustion Chamber Volume (m3) 2.4m3 External Length (mm) 3600mm
Burn Rate*
up to 300kg per hour
External Width (mm) 1300mm
Average Fuel Consumption 38 kg per hour External Height (mm) 4410mm
Operational Temperature 850 - 1320°C Shipping Weight 6000kg
Gas Retention in Secondary Chamber 2 secs
Temperature Monitoring Yes
Average ash residue (%) 3%
Thermostatic Device Yes
*Subject to calorific value of waste stream. For reference only, not to be used for installation purposes.

I8-250 Datasheet

Options

On Skid Option Platform Mounted

Platform Mounted

Inciner8 Containerised Option Containerised

Containerised

Extras:

Inciner8 Heat Recovery Heat Exchanger

Heat Exchanger

Venturi Scrubber Venturi Scrubber

Venturi Scrubber

Pollution Control Systems Pollution Control Systems

Pollution Control Systems

Parts:

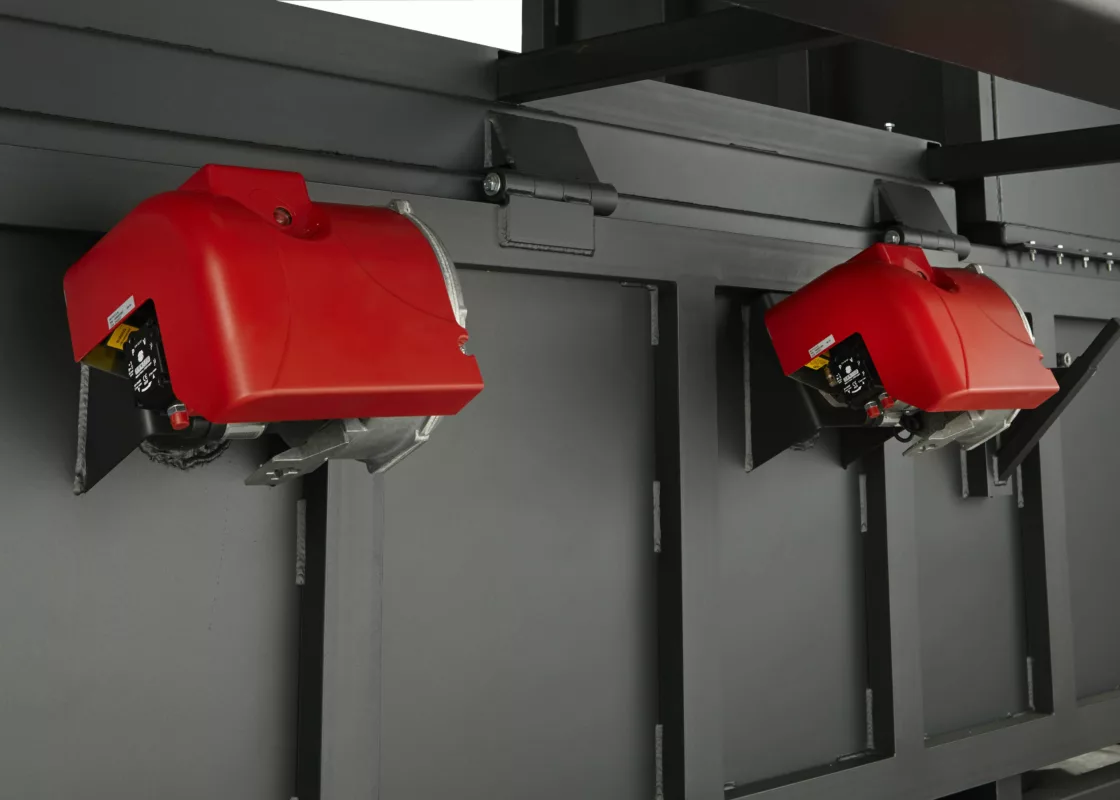

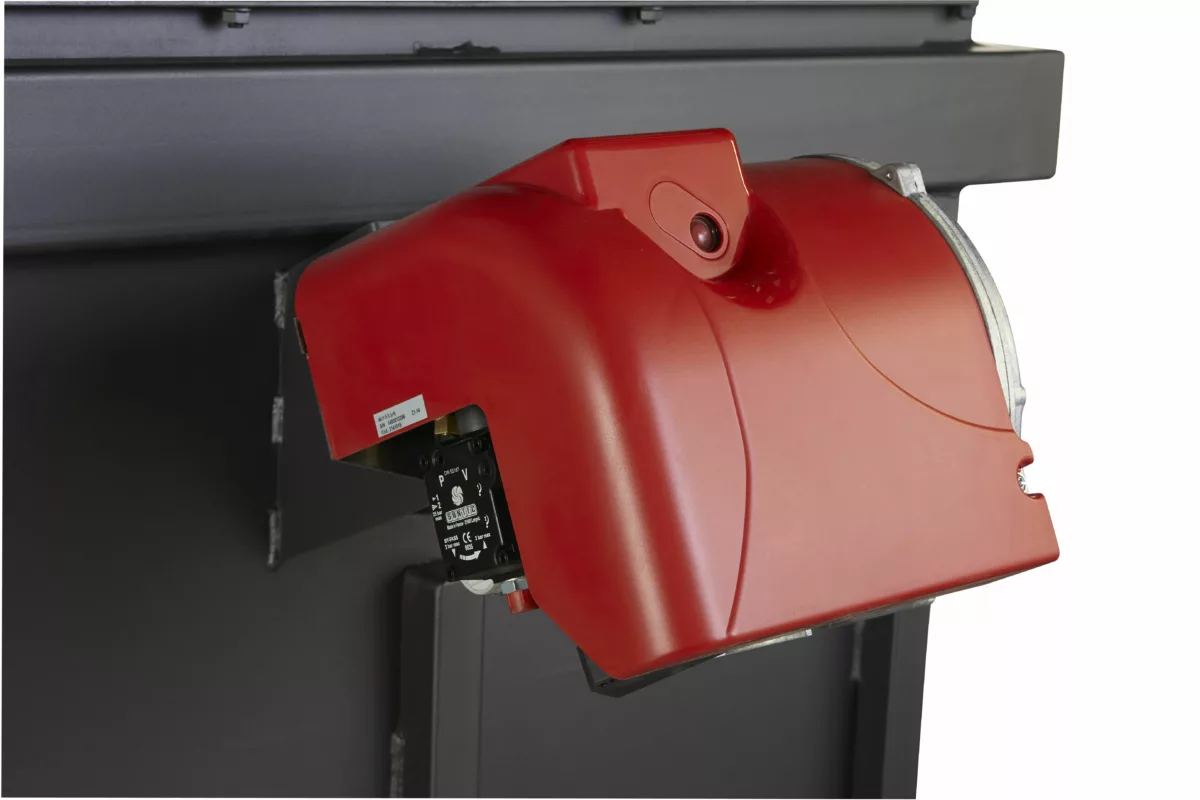

Fire rope, Refractory kit, Mastic, Burner, Thermocouple 1 year spare parts package
Fuel Tank Fuel tank and piping kit
Electricity Generator Electricity generator
