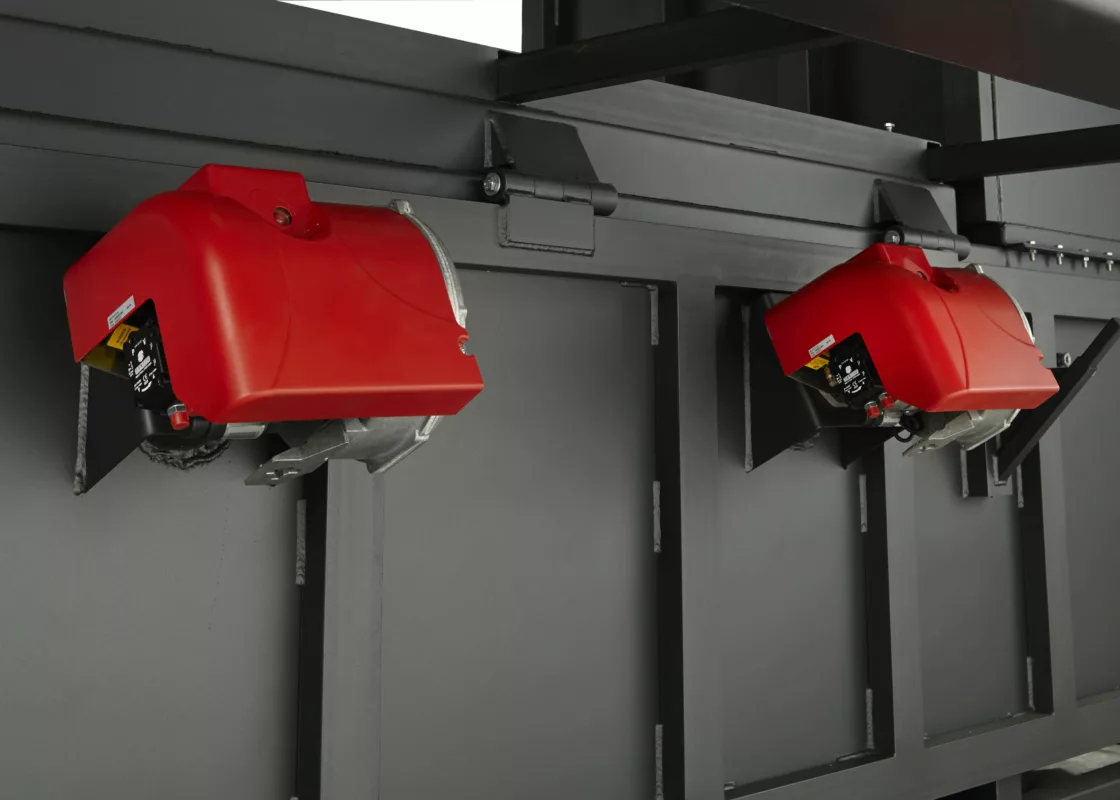

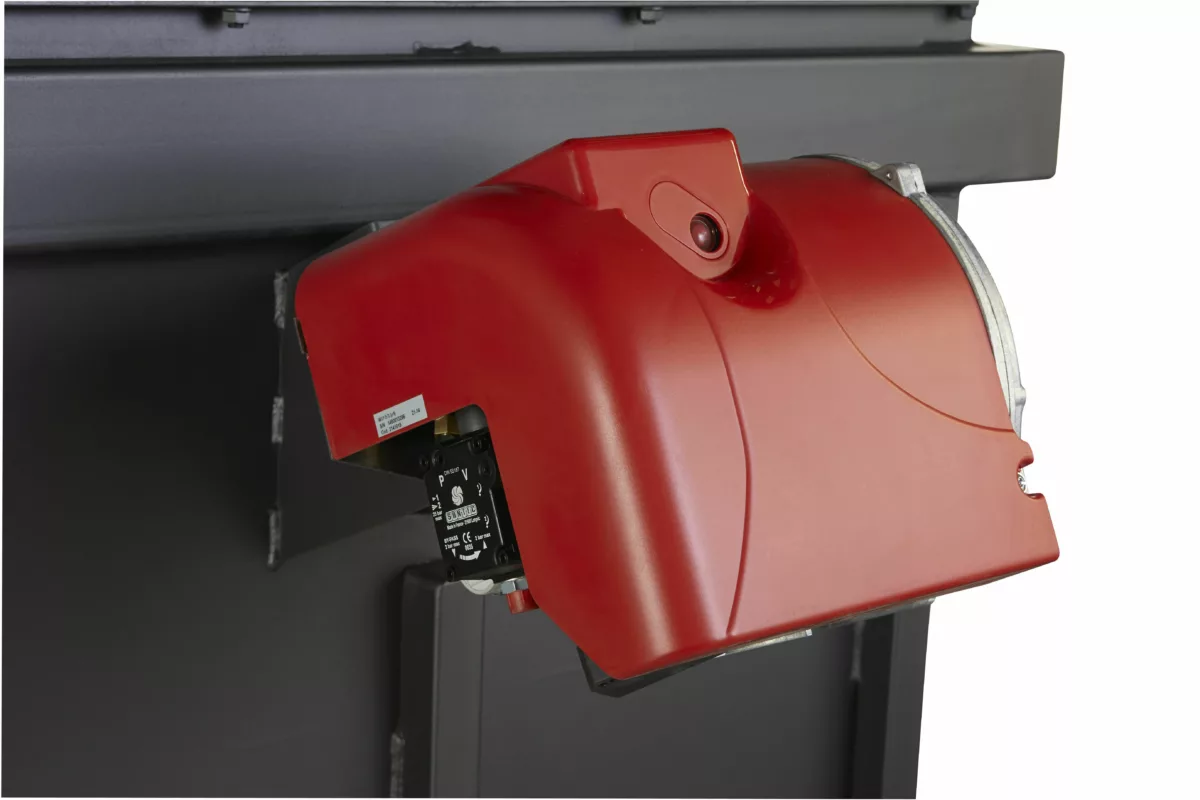

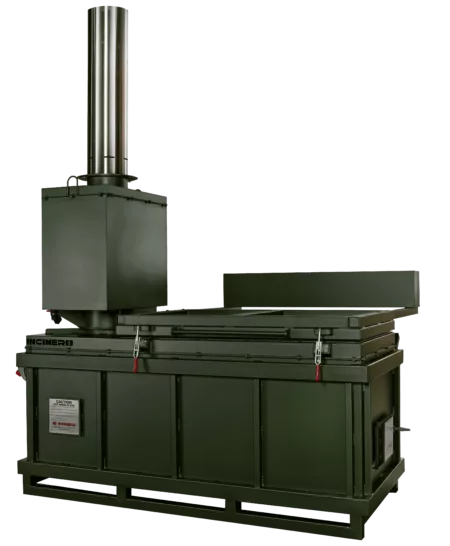

I8-200 model is an entry-level large scale incinerator that will consistently perform for you. It gives you controlled air incinerator, providing optimal combustion conditions for different waste types. As well as range of waste type solutions you also benefit from top loading design giving you liquid retention -it deals with many of the common solids and liquids. This unit benefits from a secondary chamber with afterburner for the re-burn of harmful emissions with a 2 second retention time.
Average emissions / EU standards On basic incinerators (with secondary chamber)
(1/2 hr av)
|Total dust||30 mg/m3||12 mg/m3|
|Sulphur dioxide||200 mg/m3||116,3 mg/m3|
|Nitrogen dioxide*||400 mg/m3||361,9 mg/m3|
|Carbon monoxide||100 mg/m3||98,7 mg/m3|
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay. We can also assist you in the prerparation for your planning or permit application where required.
|Operational Specs||Physical Specs|
|Combustion Chamber Volume (m3)||1.92m3||External Length (mm)||3000mm|
up to 200kg per hour
|External Width (mm)||1300mm|
|Average Fuel Consumption||29 kg per hour||External Height (mm)||4400mm|
|Operational Temperature||850 - 1320°C||Shipping Weight||5500kg|
|Gas Retention in Secondary Chamber||2 secs|
|Average ash residue (%)||3%|
