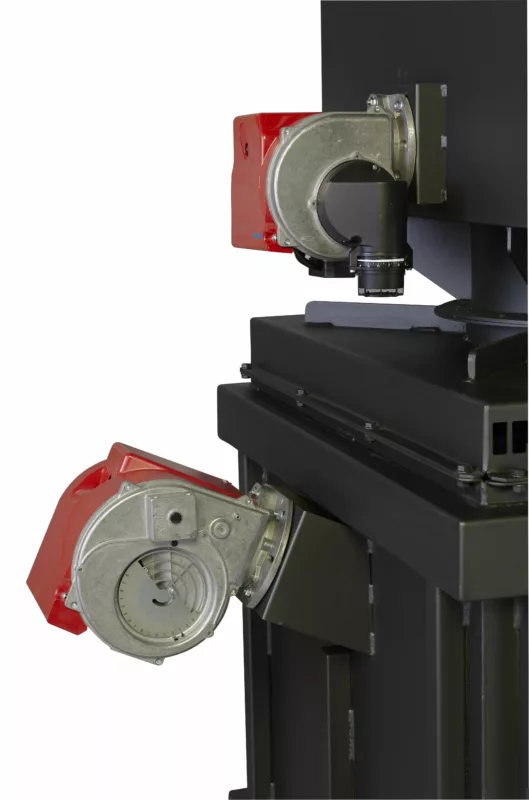

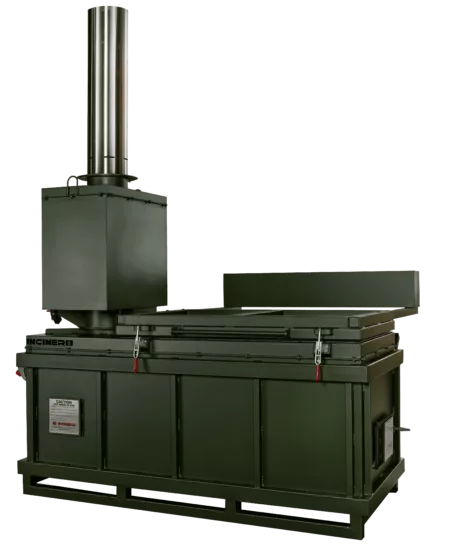

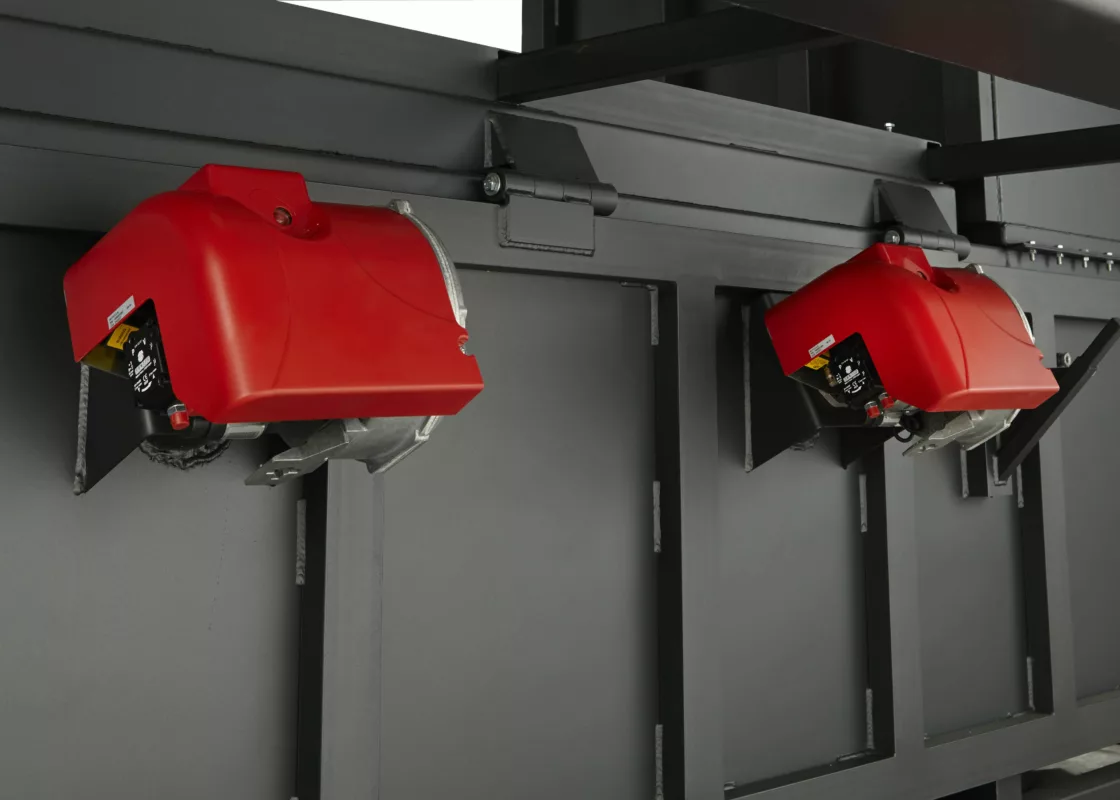

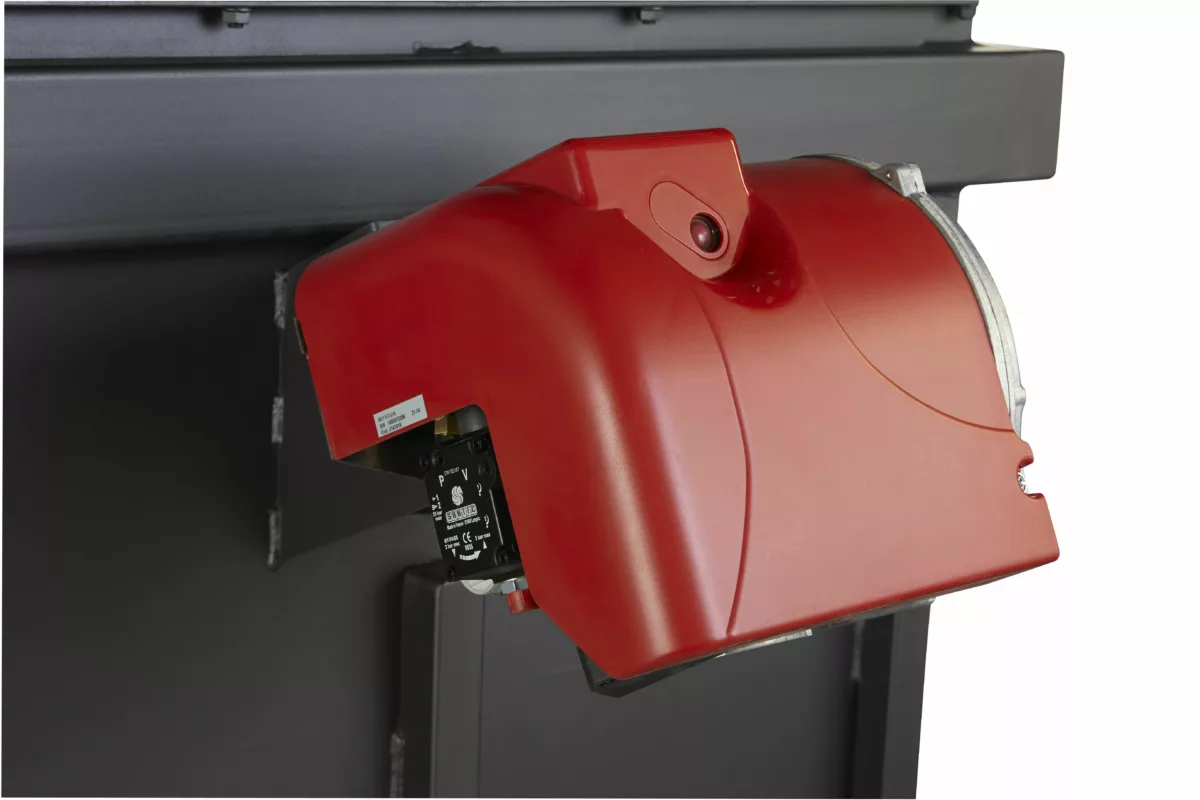

I8-140 model is a high performance, large scale incinerator. This model is a controlled air incinerator, providing optimal combustion conditions for different waste types. The top loading design gives you liquid retention making this incinerator ideal for reliable incineration of many of your different waste types. This unit benefits from a secondary chamber with afterburner for the re-burn of harmful emissions with a 2 second retention time. It delivers clean and tidy, effective waste solutions and is a good return on your investment.
Average emissions / EU standards On basic incinerators (with secondary chamber)
(1/2 hr av)
|Total dust||30 mg/m3||12 mg/m3|
|Sulphur dioxide||200 mg/m3||116,3 mg/m3|
|Nitrogen dioxide*||400 mg/m3||361,9 mg/m3|
|Carbon monoxide||100 mg/m3||98,7 mg/m3|
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay. We can also assist you in the prerparation for your planning or permit application where required.
|Operational Specs||Physical Specs|
|Combustion Chamber Volume (m3)||1.35m3||External Length (mm)||2550mm|
up to 120kg per hour
|External Width (mm)||1100mm|
|Average Fuel Consumption||14 kg per hour||External Height (mm)||4190mm|
|Operational Temperature||850 - 1320°C||Shipping Weight||3500kg|
|Gas Retention in Secondary Chamber||2 secs|
|Average ash residue (%)||3%|
