I8-40A Agricultural Incinerator
Contact us for more information
i8-40A
Download
Data Sheet

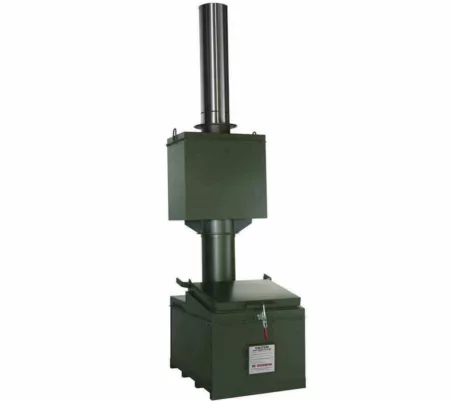

The i8-40A is a medium capacity animal incinerator from our range of ‘DEFRA Approved’ models and is suitable for disposing of birds, poultry and domestic animals with dual function as a pet cremation system.
Our i8-40A builds upon the success of our i8-20A and is a simple and effective agricultural incinerator from our smaller range. It excels in being a machine that is capable of dealing with a wide range of waste at an affordable price point. It features advanced chamber technology with an afterburner for the re-burn of harmful emissions with a 2 second retention time giving you a complete compact waste solution.
Overview

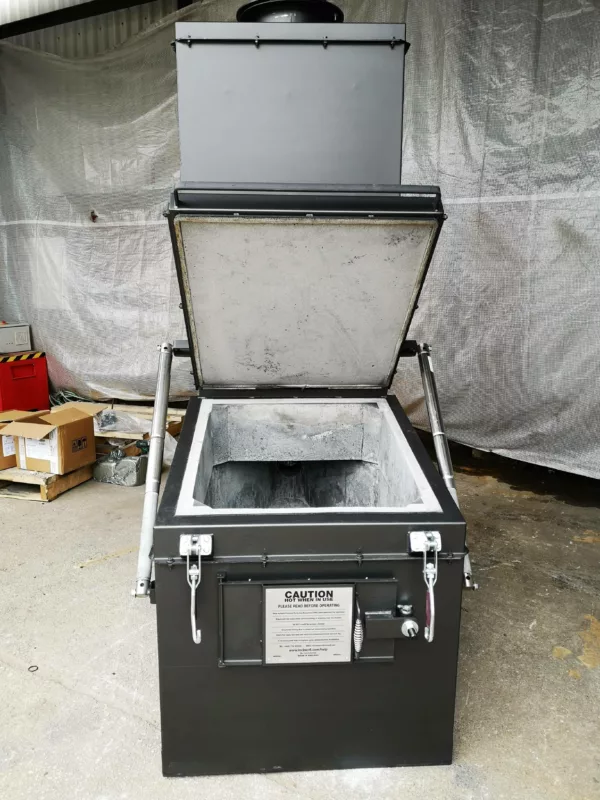

This option benefits from a simple top loading door and advanced secondary chamber to provide an environmentally friendly option for a variety of agricultural industries. The chamber is fitted with an afterburner for the re-burn of harmful emissions with a 2 second retention time – Giving you a reliable total waste solution.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Modular refractory lining
Applications
- Poultry Farms
- Butcheries
- Veterinary Laboratories
- Animal Research Centers
- Slaughterhouse < 400kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.36m3
Burn Rate*: up to 40kg per hour
Average Fuel Consumption: 9 – 11 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1240mm
External Width (mm): 920mm
External Height (mm): 4400mm
Door Size (mm): 560 x 560
Shipping Weight: 1520kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Optional Extras
Configuration Choices
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
