I8-20A Agricultural Incinerator
Contact us for more information
i8-20A
Download
Data Sheet

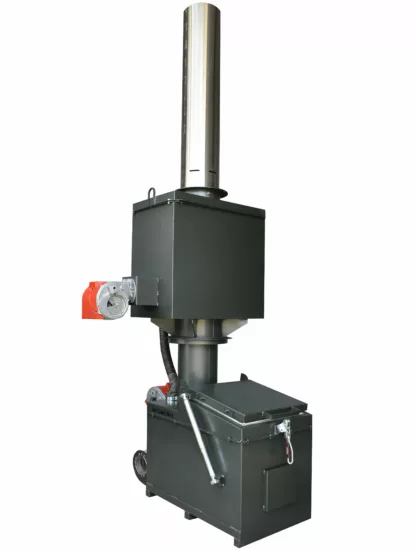

The i8-20A is the smallest DEFRA Type approved agricultural incinerator in our range. The top-loading design means liquids are well contained within this system during combustion.
The i8-20A is perfect for small farms, veterinary practices or other small businesses within the agricultural world. It is also one of the most affordable ways to introduce yourself to the world of Inciner8.
Overview
It is designed for providing optimal combustion conditions for different agricultural waste types.
This unit also benefits from a secondary chamber with afterburner for the re-burn of harmful emissions with a 2 second retention time.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Modular refractory lining
Applications
- Poultry Farms
- Butcheries
- Veterinary Laboratories
- Animal Research Centers
- General Farm Waste
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.18m3
Burn Rate*: up to 30kg per hour
Average Fuel Consumption: 7 – 9 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1070mm
External Width (mm): 670mm
External Height (mm): 4310mm
Door Size (mm): 490 x 490
Shipping Weight: 1230kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Optional Extras
Configuration Choices
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
