I8-200A Agricultural Incinerator
Contact us for more information
i8-200A
Download
Data Sheet

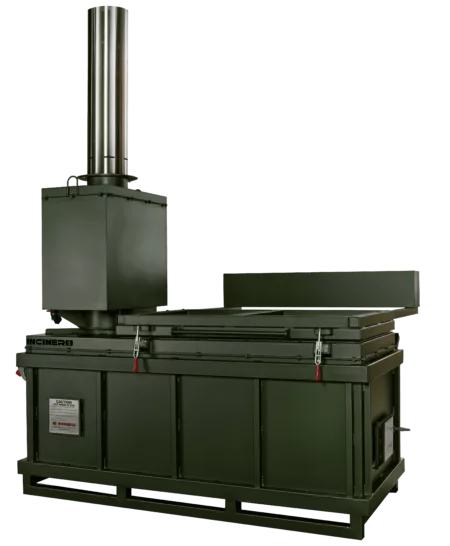

The i8-200A is a high capacity animal incinerator which is suitable for disposing of large domestic animals, sheep, lambs and small cattle benefiting from a wide opening door and high hourly burn rates.
The i8-200A is large enough to offer impressive burn rates and batch sizes, whilst still being small enough to fit in a 20ft container. It is a common waste disposal solution for farms, shooting practices, slaughterhouses, abattoirs or veterinary practices.
Overview

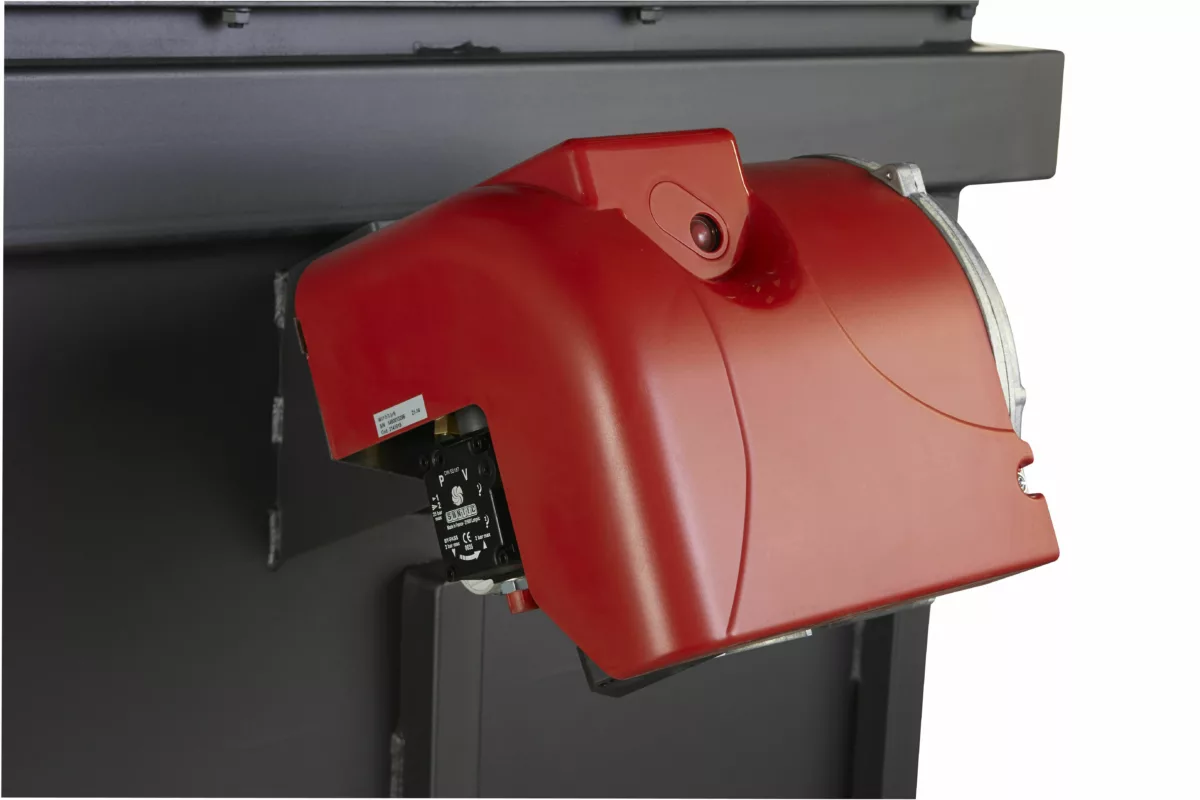

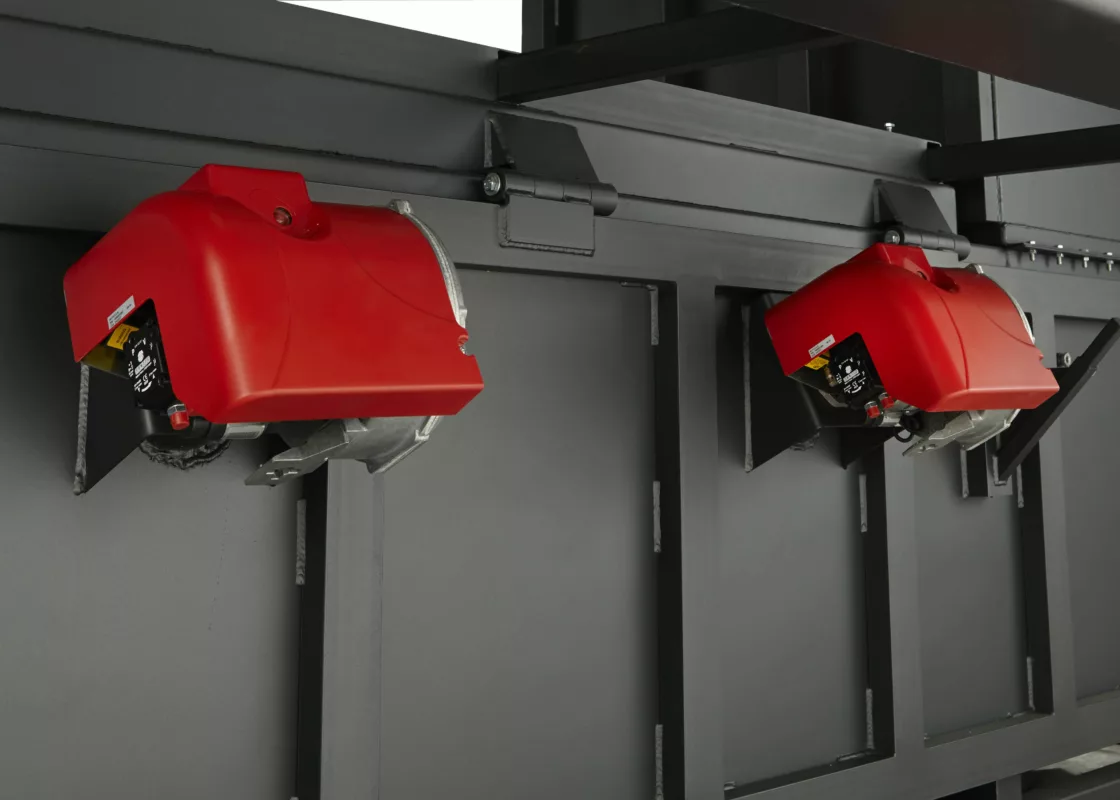

The i8-200A features a top-loading design with a large opening for bulky agricultural waste items. Like all our ‘A’ range models it features a secondary chamber with an afterburner for the re-burn of harmful emissions with a 2 second retention time.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control

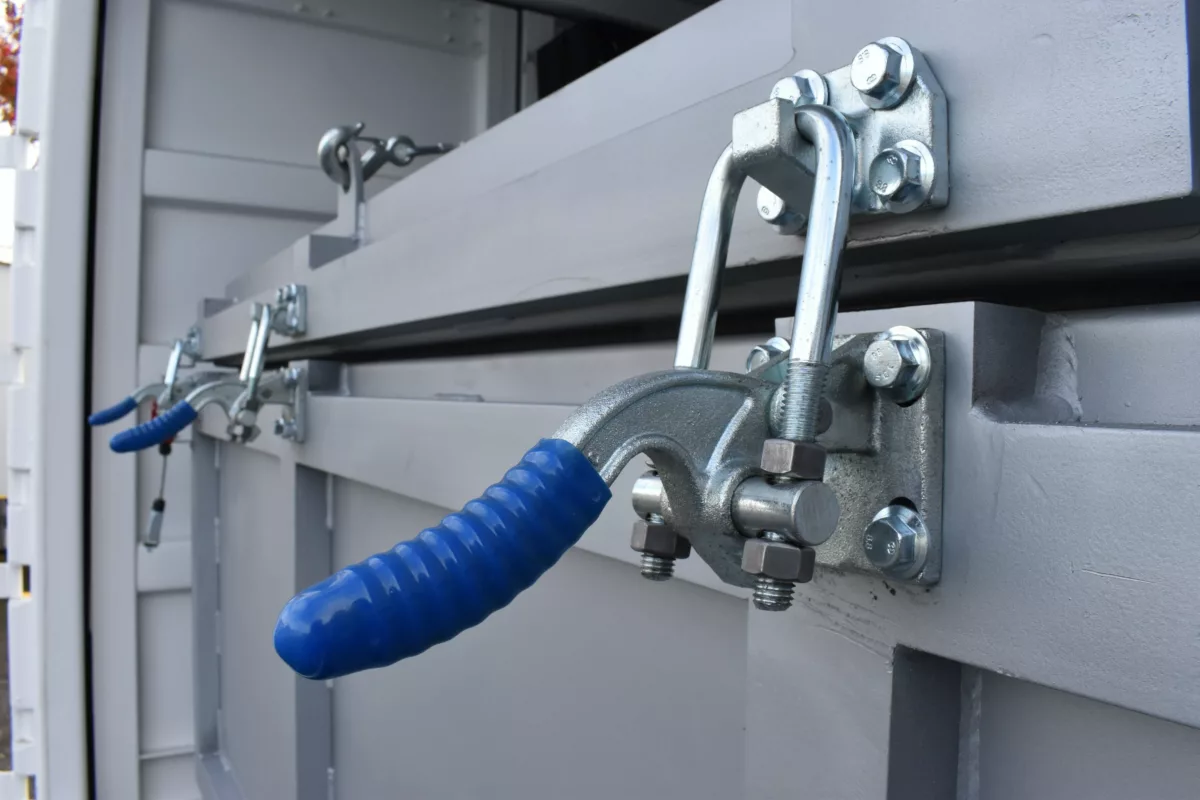

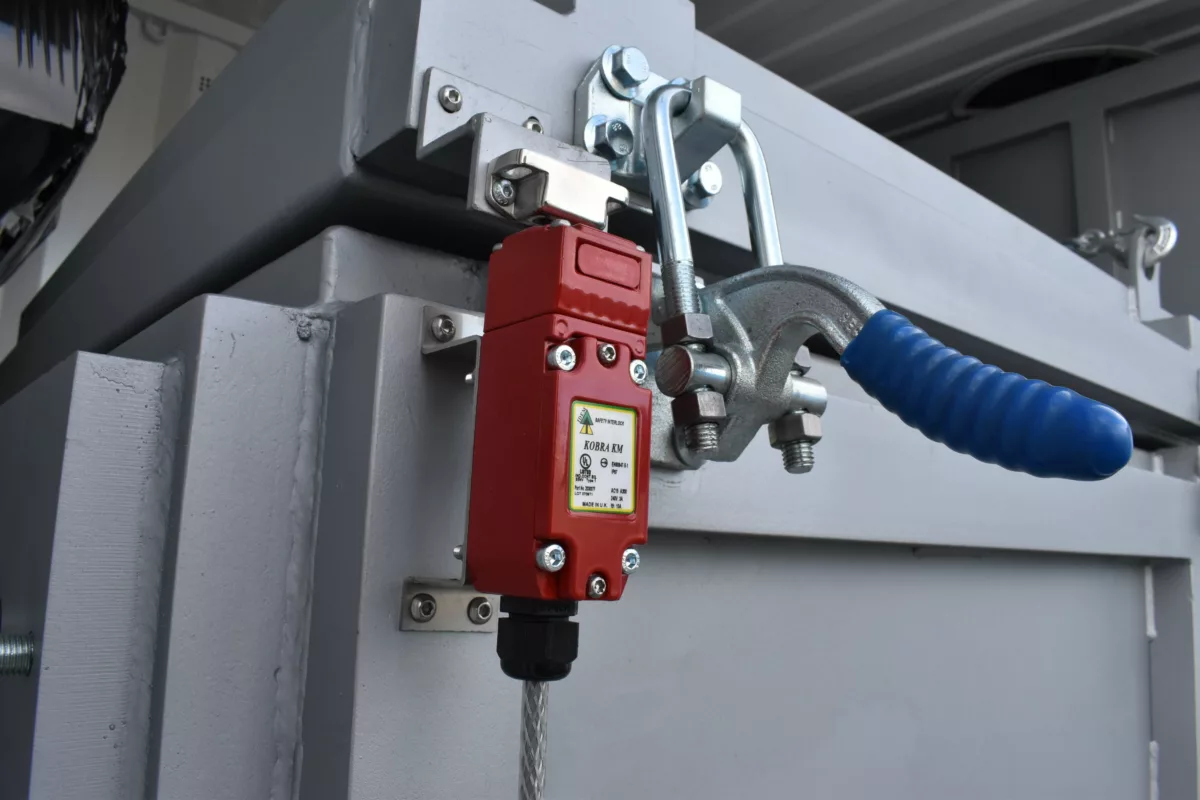

- Large loading door
- CE3-VFD Advanced control panel
- Excellent liquid retention
Applications
- Poultry Farms
- Animal Waste Collection
- Veterinary Laboratories
- Animal Research Centers
- Slaughterhouse < 1000 kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 1.92m3
Burn Rate*: up to 150kg per hour
Average Fuel Consumption: 20 – 25 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 3070mm
External Width (mm): 1370mm
External Height (mm): 4390mm
Door Size (mm): 2040 x 1060mm
Shipping Weight: 5000kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
