I8-140A Agricultural Incinerator
Contact us for more information
i8-140A
Download
Data Sheet

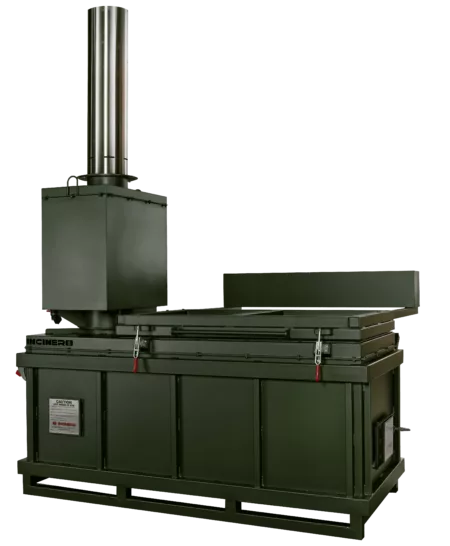

The i8-140A is a large opening, low capacity animal incinerator which is suitable for disposing of large domestic animals, sheep, lambs and many others thanks to its wide opening door and high hourly burn rates.
This model is an ideal waste disposal solution for farms, shooting practices, slaughterhouses, abattoirs or veterinary practices and othr agricultural applications. The large capacity, advanced secondary chamber technology and options for semi-automatic waste loading provide an effective and sustainable waste disposal method for all animal waste.
Overview

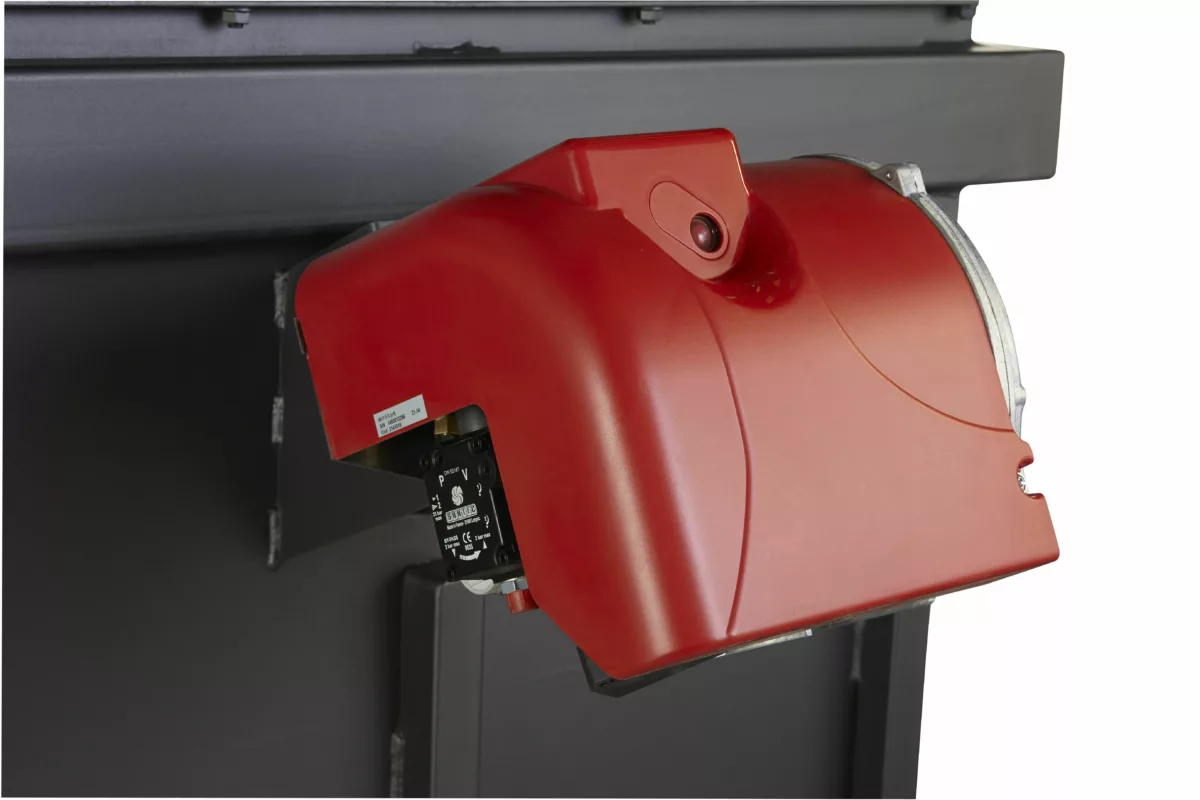

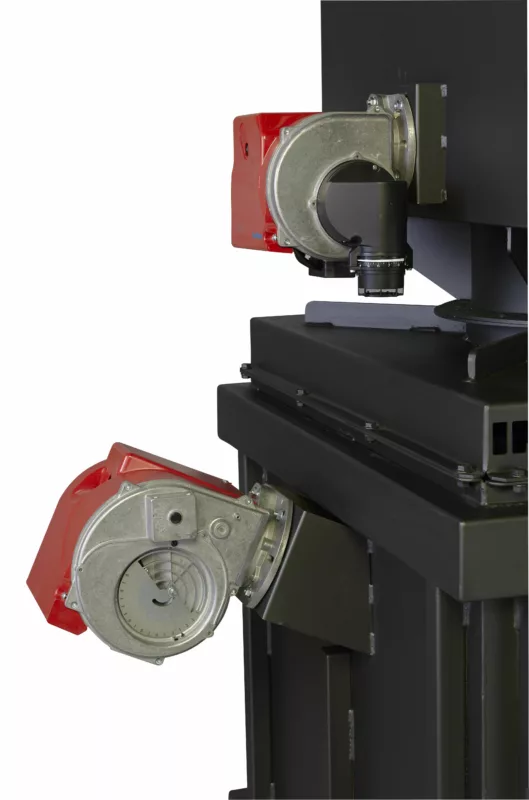

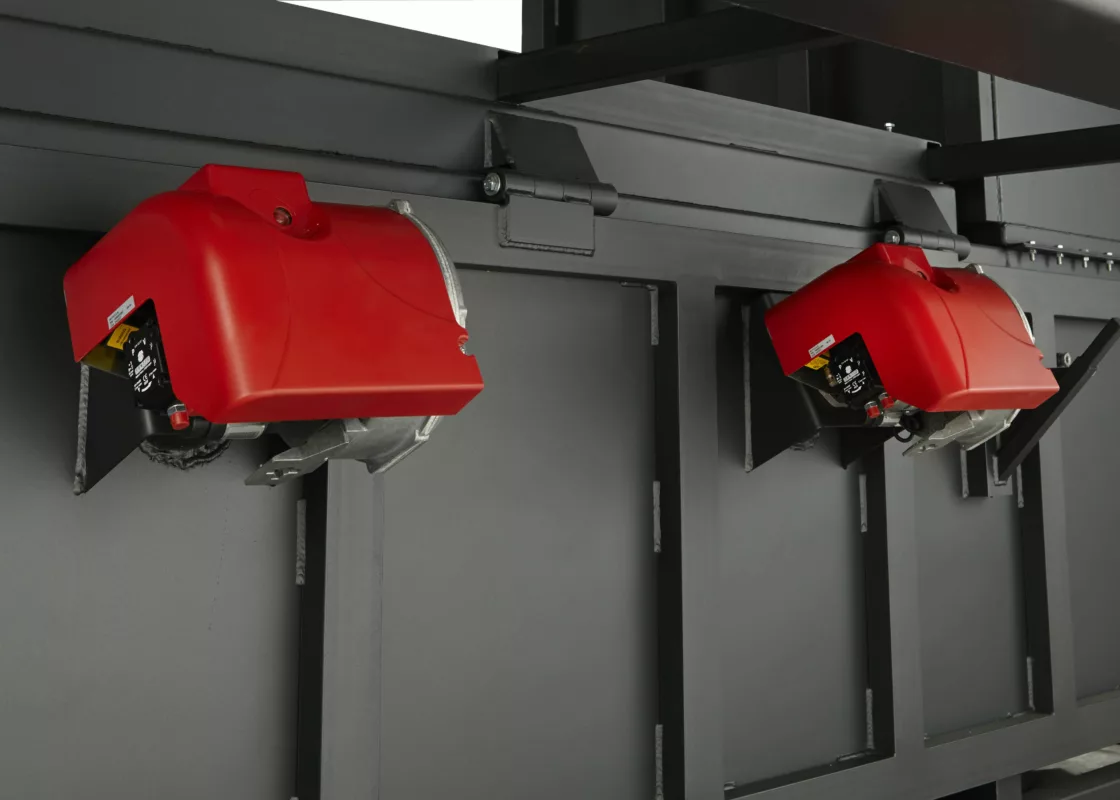

This unit benefits from a secondary chamber with afterburner for the re-burn of harmful emissions with a 2 second retention time and the largest opening on all our small capacity machines.
It is our most popular agricultural waste solution in Africa.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Modular refractory lining
Applications
- Poultry Farms
- Animal Waste Collection
- Veterinary Laboratories
- Animal Research Centers
- Slaughterhouse < 1000 kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 1.35m3
Burn Rate*: up to 100kg per hour
Average Fuel Consumption: 14 – 19 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 2540mm
External Width (mm): 1100mm
External Height (mm): 4180mm

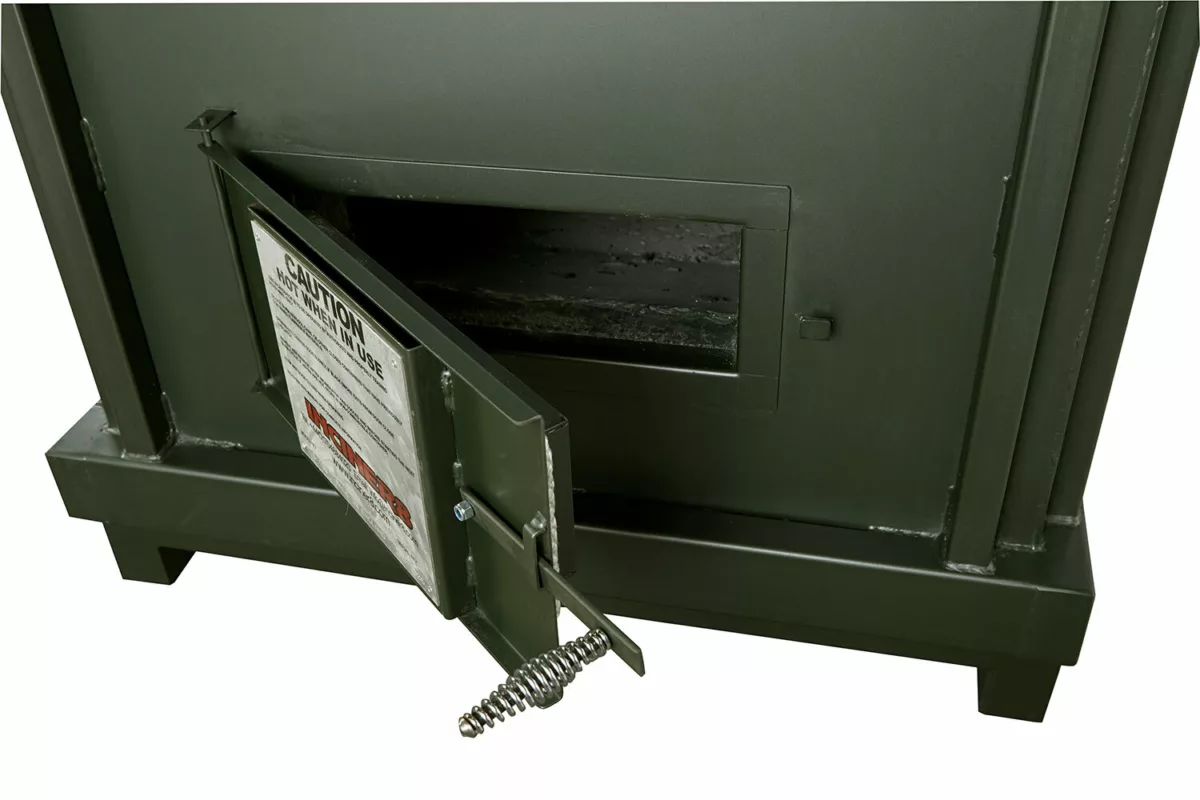

Door Size (mm): 1450 x 750mm
Shipping Weight: 3100kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
