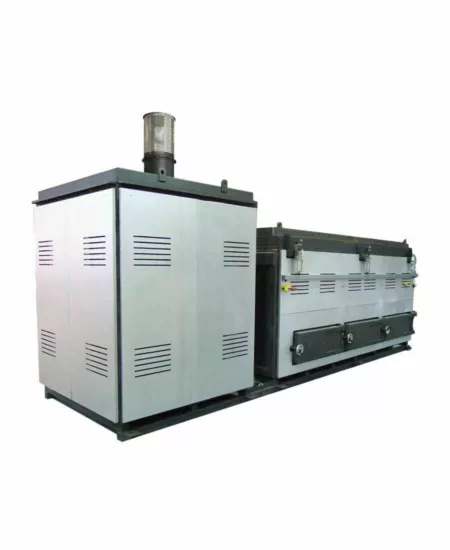

I8-1000A Agricultural Incinerator

Contact us for more information

The i8-1000A is the biggest machine within our agricultural range and is at the forefront of combustion technology – offering impressive burn rates and large batch sizes while still achieving some of the lowest emissions in its class.

The i8-1000A can be customised with external cladding and automatic loading to provide an effective and sustainable waste disposal solution for many different types of agricultural waste. The i8-1000A also has the benefit of being fitted with our smartpanel technology allowing operators to remotely monitor performance and diagnose and issues should they occur.

Overview

The i8-1000A has the highest capacity in our range of animal incinerators and is suitable for disposing of horses, cattle and other large animals benefiting from a wide opening door and high hourly burn rates. This model is an ideal disposal solution for farms, shooting practices, slaughterhouses, abattoirs, veterinary practices or similar facilities with high quantities of animals. Featuring our SMARTPANEL technology, this system can ‘learn’ about your waste stream, then via remote diagnosis we can fine tune its performance to suit your needs. Available with a wide range of pre-combustion modules to improve throughput and comprehensive options for the handling of exhaust gases. Professionally installed and maintained if you sign up for our INCINER8 Network services.

Features

  • Enhanced Coretex insulation
  • Multi-zone temperature control

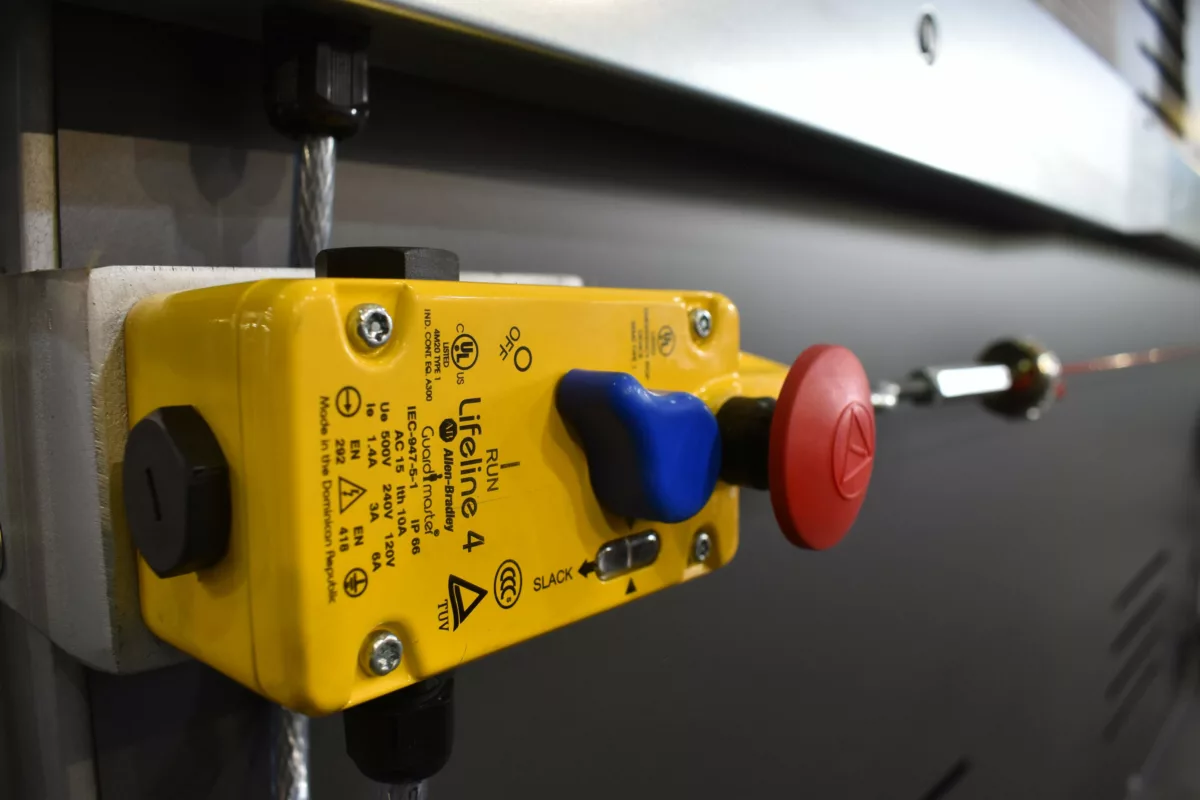

  • Additional safety features
  • CE7-VFD Advanced control panel
  • Hydraulic doors

Applications

  • Pig/Sow Farms
  • Cattle / Dairy Farms
  • ABP Rendering
  • General Farm Waste
  • Deer, Elk & Moose

Technical Specifictions

Operational Specifications

Combustion Chamber Volume (m3): 8.7m3
Burn Rate*: up to 800kg per hour
Average Fuel Consumption: 40 – 50 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes

Physical Specifications

External Length (mm): 6540mm
External Width (mm): 1840mm
External Height (mm): 6260mm
Door Size (mm): 4000 x 1500mm
Shipping Weight: 21500kg

For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.

Configuration Choices

Optional Extras

Made in Britain

Hand-built in the UK

All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.

We can also assist you in the preparation for your planning or permit application where required.
