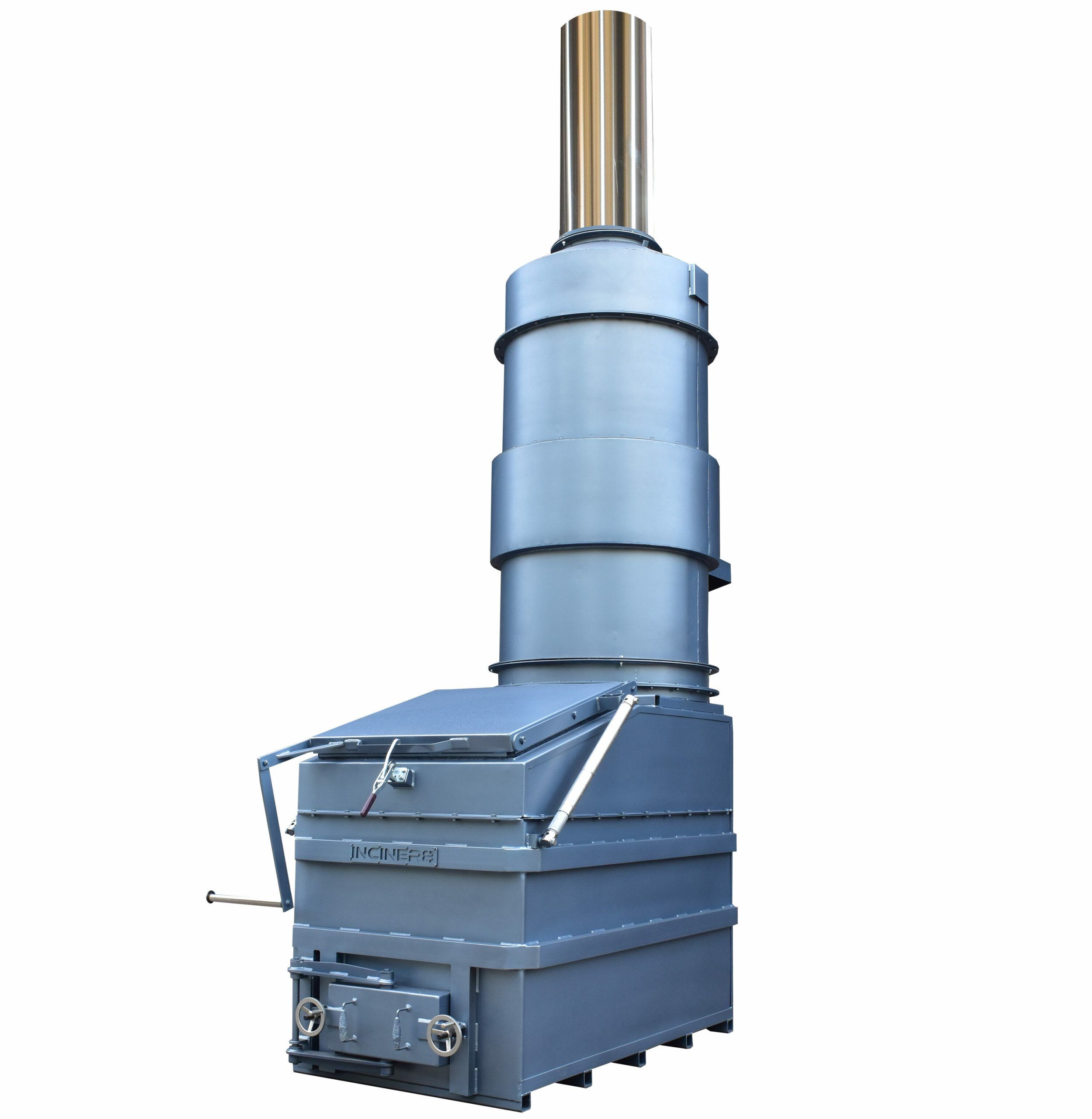

I8-M120 Medical Incinerator
Contact us for more information
i8-M120
Download
Data Sheet
The i8-M120 differs from other incinerator models in the medical range with its use of cylindrical secondary chamber and oversized loading door.

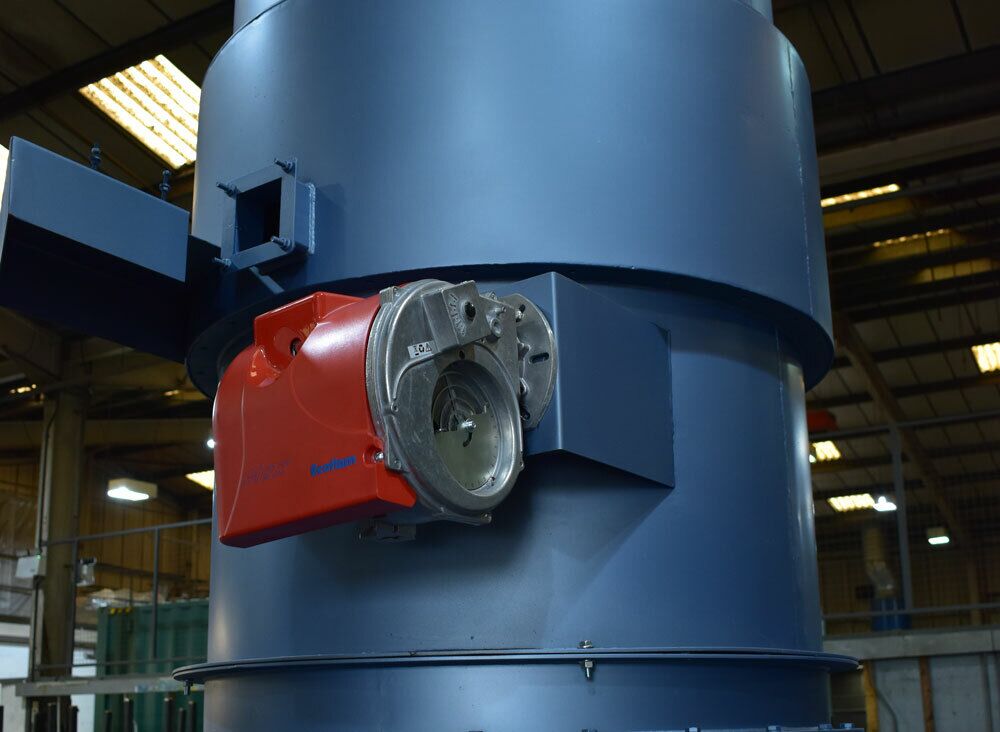

The i8-M120 is a medium-capacity model from our range of specialist “M” incinerators that are optimized for medical waste disposal. This unit benefits from a secondary chamber with an afterburner for the re-burn of harmful emissions with a 2 second retention time.
Overview
The addition of a an advanced CE2-VFD control panel, dedicated I.D. fan and increased insulation improve performance and provide all-round suitability for many different types of medical, clinical, pharmaceutical and hazardous waste streams.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Small footprint for capacity
- CE2-VFD Advanced control panel
- Tertiary air control
Applications
- Medical Laboratories
- Dental / Cosmetic Clinics
- Blood Banks / Collection
- Centers for Disease Control
- <500 Bed Medical Facilities
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 1.25m3
Burn Rate*: up to 100kg per hour
Average Fuel Consumption: 13 – 18 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1850mm
External Width (mm): 1110mm
External Height (mm): 8100mm
Door Size (mm): 640 x 540mm
Shipping Weight: 6000kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
