I8-M100 Medical Incinerator
Contact us for more information
i8-M100
Download
Data Sheet

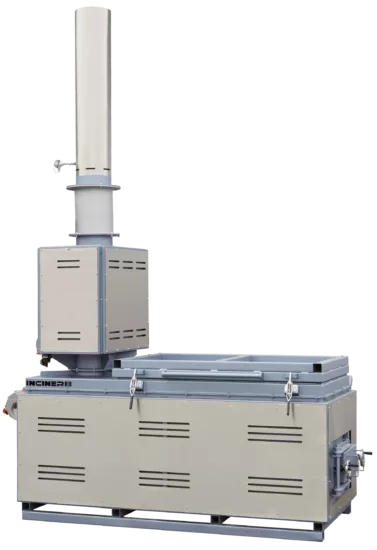

The i8-M100 is one of our mid-sized models that can be used for a variety of medical applications. Large enough to offer impressive burn rates and batch sizes, while still small enough to fit all our mobile options.
The i8-M100 features a top-loading design with a large opening for bulky waste. The i8-M100 benefits from a secondary chamber with an afterburner for the re-burn of harmful emissions with a 2 second retention time.
Overview

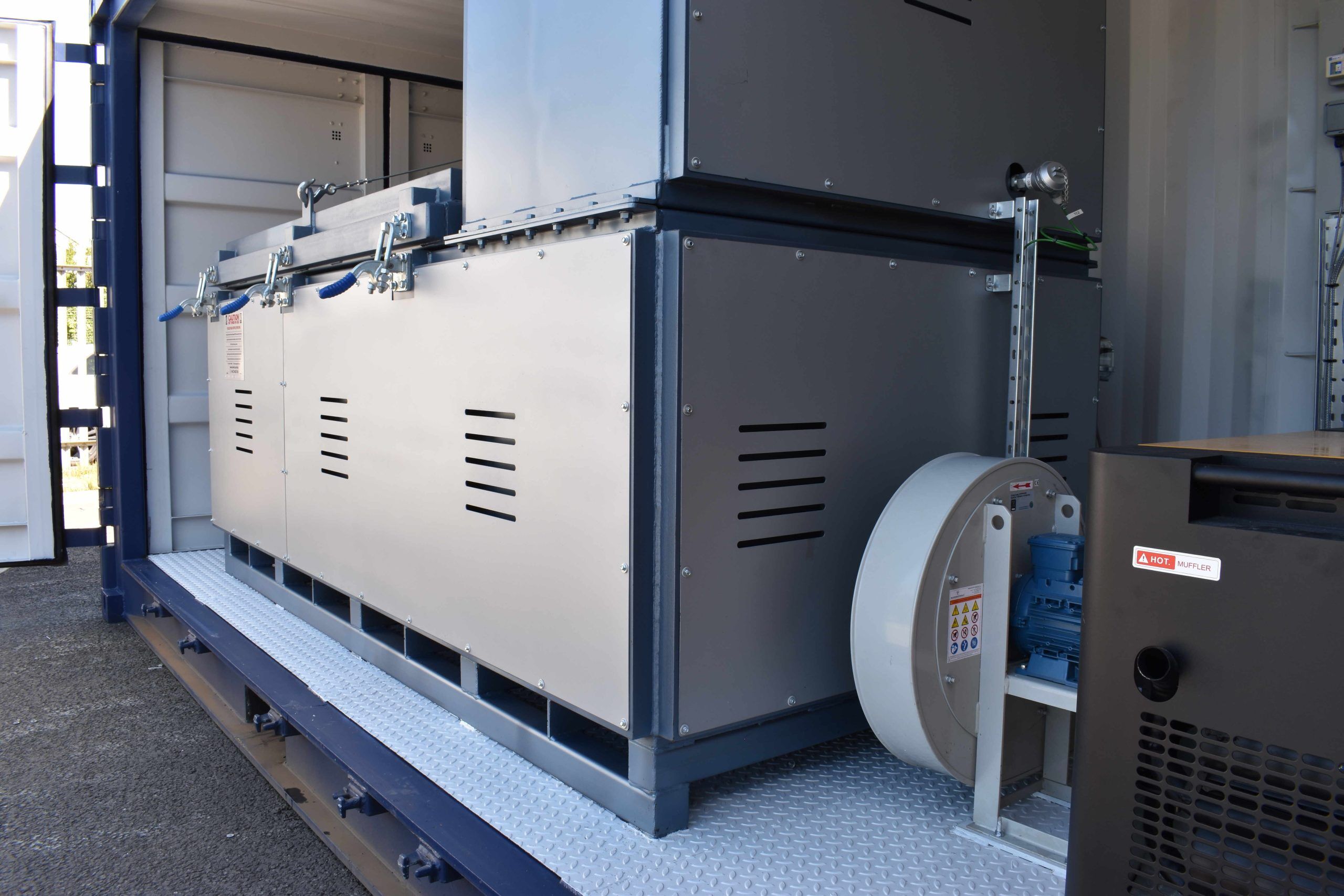

The i8-M100 is a large capacity model from our range of specialist “M” incinerators. The addition of a CE2-VFD control panel, I.D. fan and increased insulation improves performance and provides all-round suitability for many different types of medical, clinical, pharmaceutical and hazardous waste streams.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control

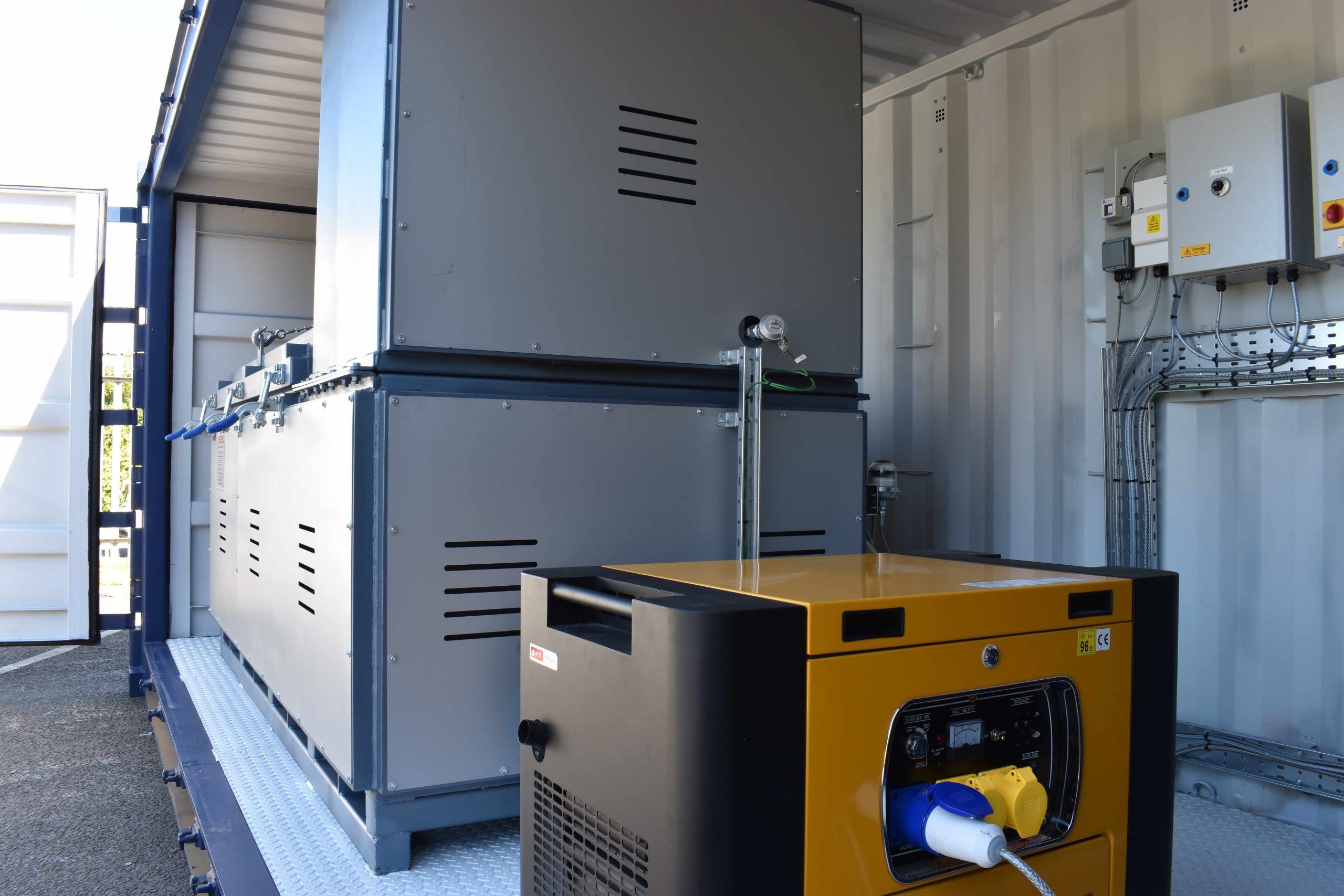

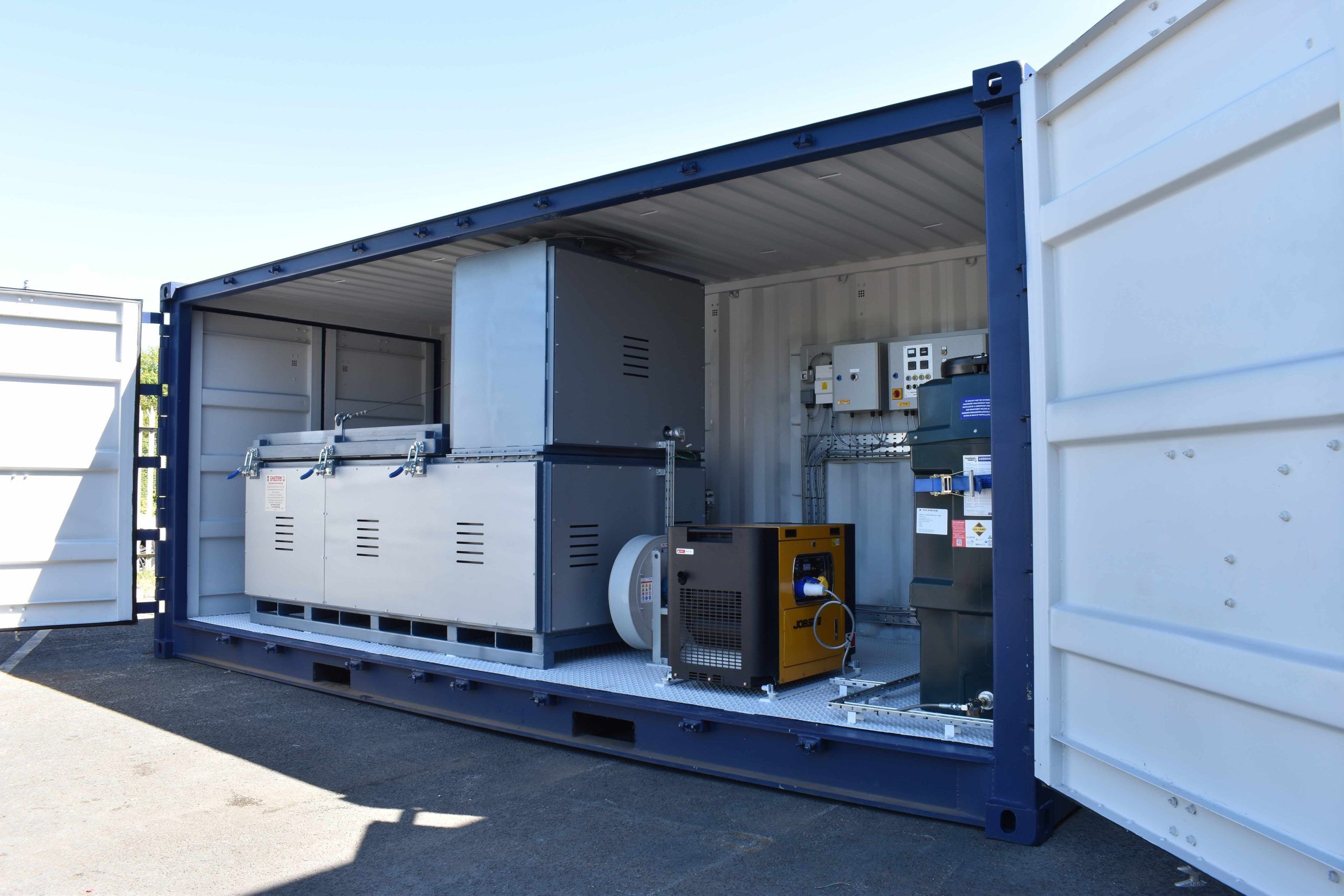

- Mobile options available

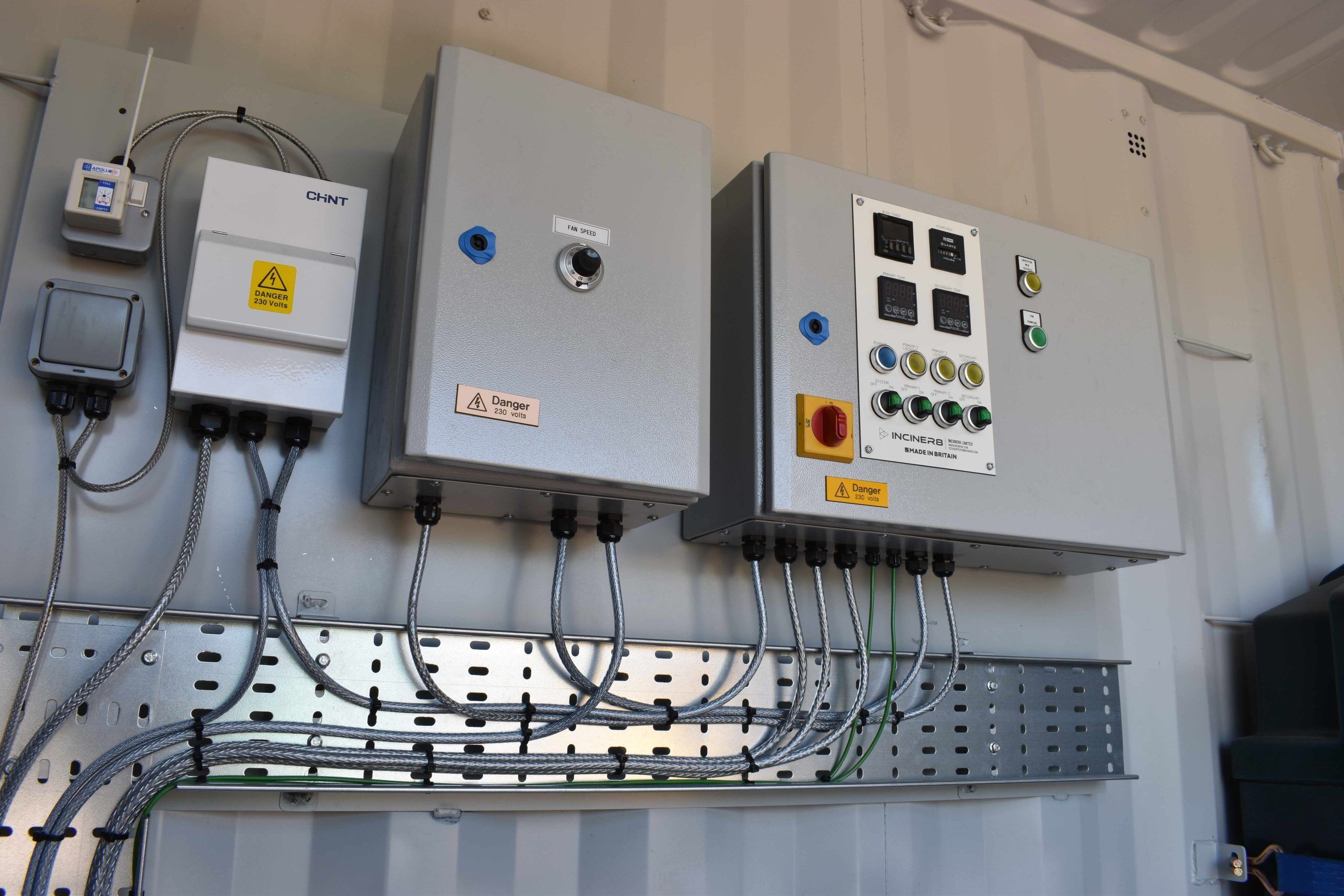

- CE2-VFD Advanced control panel
- Tertiary air control
Applications
- Medical Laboratories
- Dental / Cosmetic Clinics
- Blood Banks / Collection
- < 400 Bed Medical Facilities
- Medical Waste Collection
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 1.35m3
Burn Rate*: up to 80kg per hour
Average Fuel Consumption: 14 – 19 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 2540mm
External Width (mm): 1100mm
External Height (mm): 4180mm
Door Size (mm): 1450 x 750mm
Shipping Weight: 3100kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
