TLS loading system
Contact us for more information
A robust, reliable and easy way to load bulky or large waste into an incinerator. Quick & simple to operate with almost zero running costs.

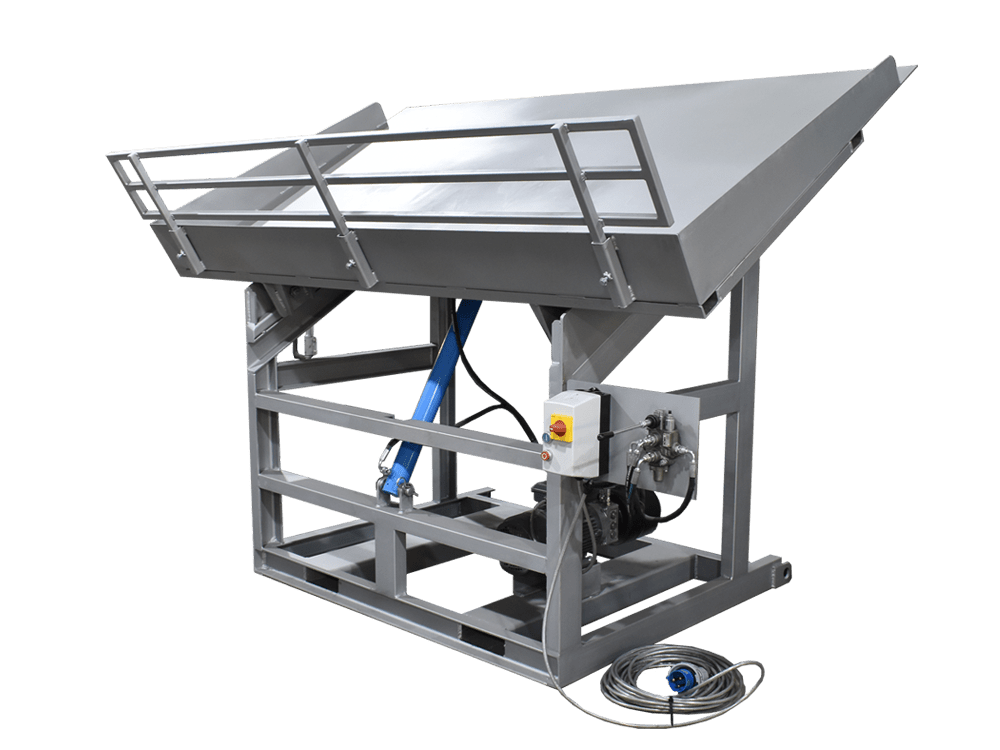

Built using a strong L-section frame, the system comes with a 700mm x 400mm loading shelf where you place the waste. The shelf is then tipped using the pneumatic rams and the waste falls neatly into the incinerator. This prevents damaging the refractory concrete system.
Features
- Protects incinerator from loading damage
- Minimal power consumption
- 30 seconds cycle (loading) time
- Single lever (UP/DOWN) operation
- Large loading shelf
- Offers more protection to the operator.
Technical Specifictions
- Cycle Time: 30 seconds
- Dimensions (l, w, h): 2.4m x 1.35m x 1.7m
- Loading shelf: 2394mm x 1366mm
- Waste loading height: 1.3m
- Shelf material: Stainless steel
- Framework material: Mild steel
- Ram specification: 1.0m stainless steel dual-ram
- Air compressor: 230V / 50Hz 2 horsepower
- Motor Rating: 1000 KG
Typical Usage Scenarios
The I8-TLS should be used where you have a need to lift large or heavy items on a regular basis. This module is currently used by a wide range of businesses around the world from small holdings in the UK to large multi-national conglomerates in Africa and the Middle East.
If you are looking for a solution using waste bins, see our bin tipper module specifically built for this purpose. (Supports all ISO standard sizes)
- Medical & healthcare
- Municipal & residental
- Agriculture & farming
- Abattoirs & renderers
- Tourism & hospitality
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
