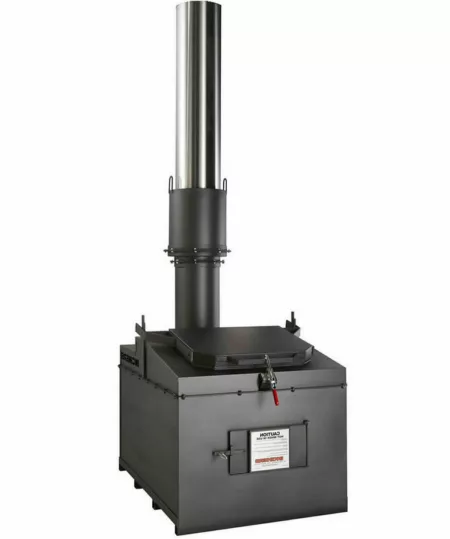

I8-75S General Incinerator
Contact us for more information
The biggest ‘S’ model is the i8-75S, it features a spacious chamber capacity and uses controlled air technology to provide the best combustion environment for a variety of different waste types.
Our versatile range of āSā model incinerators are designed to be
multi-purpose. This particular model benefits from a top loading design and very simple operation process. Ideal as a stand-alone machine.
multi-purpose. This particular model benefits from a top loading design and very simple operation process. Ideal as a stand-alone machine.
Overview
This unit features a secondary chamber with a 0.5 second retention time.
This allows the re-burn of harmful emissions.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Modular refractory lining
Applications
- Camps
- Military Operations
- Universities & Colleges
- < 200 People Communities
- Industrial Waste < 600kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.75m3
Burn Rate*: up to 50kg per hour
Average Fuel Consumption: 10 – 14 ltrs p/h
Operational Temperature: > > 850Ā°C
Gas Retention in Secondary Chamber: 0.5 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1610mm
External Width (mm): 1190mm
External Height (mm): 4680mm
Door Size (mm): 990 x 910
Shipping Weight: 2450kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Optional Extras
Configuration Choices
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
