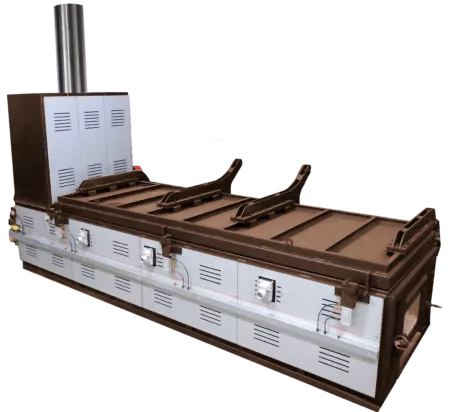

I8-700G General Incinerator
Contact us for more information
The I8-700G model is the established ‘powerhouse’ amongst our large-scale incinerators.
The second biggest model in our general range it was designed to outperform any other incinerator within its class.
This model can be customized with external cladding and automatic loading to provide an effective and sustainable waste disposal solution for many different types of industries with large volumes of waste such as RDF, SRF and MSW.
Overview
We offer a plethora of options in terms of pre-processing and post-combustion – all geared to increasing the performance and efficiency of this unit. The top-loading design provides liquid retention making this incinerator ideal for the incineration of many different waste streams. Unless specified this model uses our NX PLC range of control panels.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Additional safety features
- CE2 Advanced control panel
- Hydraulic doors
Applications
- Landfill Alternative
- Recycling Centres
- Bigger Camps
- < 5000 People Communities
- Industrial Waste < 8000kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 6.75m3
Burn Rate*: up to 400kg per hour
Average Fuel Consumption: 40 – 50 ltrs p/h
Operational Temperature: > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 6040mm
External Width (mm): 1910mm
External Height (mm): 5750mm
Door Size (mm): 4580 x 1500mm
Shipping Weight: 15000kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Configuration Choices
Optional Extras
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
