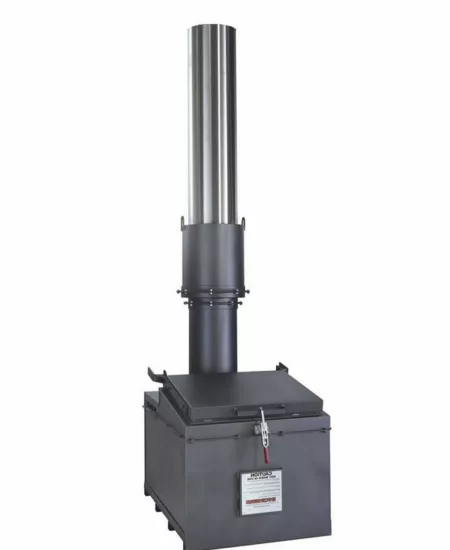

I8-40S General Incinerator

Contact us for more information

Our i8-40s is a simple and effective incinerator from our small range with suitability for various non-hazardous waste types such as wood, paper, cardboard and other uncontaminated materials.

Our versatile range of ‘S’ model incinerators are designed to be multi-purpose. This particular model benefits from a top loading design and very simple operation process. Ideal as a stand-alone machine.

Overview

The addition of a secondary chamber allows this model to operate without smoke, odours or harmful emissions. Inbuilt after burners ensure harmful emissions are eradicated. Easy to use and maintain and built to the highest quality standards by the Inciner8 team.

Features

  • Enhanced Coretex insulation
  • Multi-zone temperature control
  • Mobile options available
  • CE2 Advanced control panel
  • Modular refractory lining

Applications

  • Camps
  • Military Operations
  • Remote Housing
  • < 120 People Communities
  • Industrial Waste < 500kg day

Technical Specifictions

Operational Specifications

Combustion Chamber Volume (m3): 0.36m3
Burn Rate*: up to 35kg per hour
Average Fuel Consumption: 8 – 10 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 0.5 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes

Physical Specifications

External Length (mm): 1240mm
External Width (mm): 920mm
External Height (mm): 3930mm
Door Size (mm): 560 x 560
Shipping Weight: 1250kg

For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.

Optional Extras

Configuration Choices

Made in Britain

Hand-built in the UK

All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.

We can also assist you in the preparation for your planning or permit application where required.
