I8-20S General Incinerator
Contact us for more information

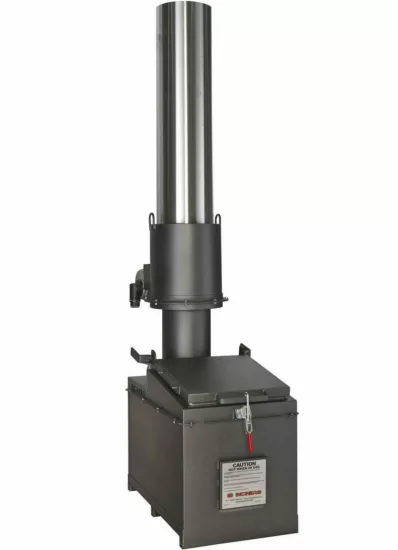

The i8-20S General Incinerator is a simple and effective small incinerator with suitability for various non-hazardous waste types such as wood, paper, cardboard and other uncontaminated materials.
Our versatile range of āSā model incinerators are designed to be multi-purpose. This particular model benefits from a top loading design and very simple operation process. Ideal as a stand-alone machine.
Overview
The addition of a secondary chamber allows this model to operate without smoke, odours or harmful emissions.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Modular refractory lining
Applications
- Camps
- Military Operations
- Boarding Schools
- < 70 People Communities
- Industrial Waste < 300kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.18m3
Burn Rate*: up to 20kg per hour
Average Fuel Consumption: 4 – 6 ltrs p/h
Operational Temperature: > > 850Ā°C
Gas Retention in Secondary Chamber: 0.5 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1070mm
External Width (mm): 670mm
External Height (mm): 3670mm
Door Size (mm): 490 x 490
Shipping Weight: 800kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additional accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Optional Extras
Configuration Choices
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
