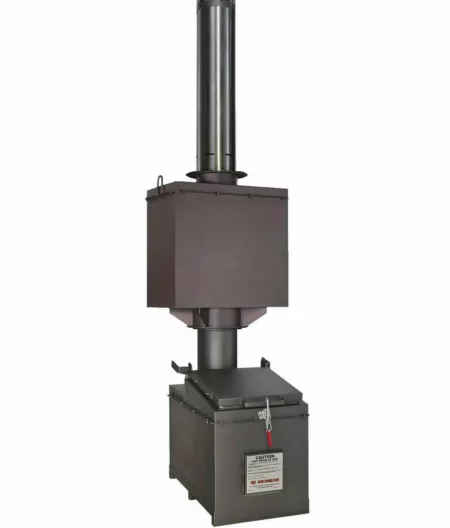

I8-20G General Incinerator
Contact us for more information
i8-20G
Download
Data Sheet
The i8-20G is perfect for small camps, individual businesses or
communities where waste streams are low. It is one of the most affordable ways to introduce yourself to the world of Inciner8.

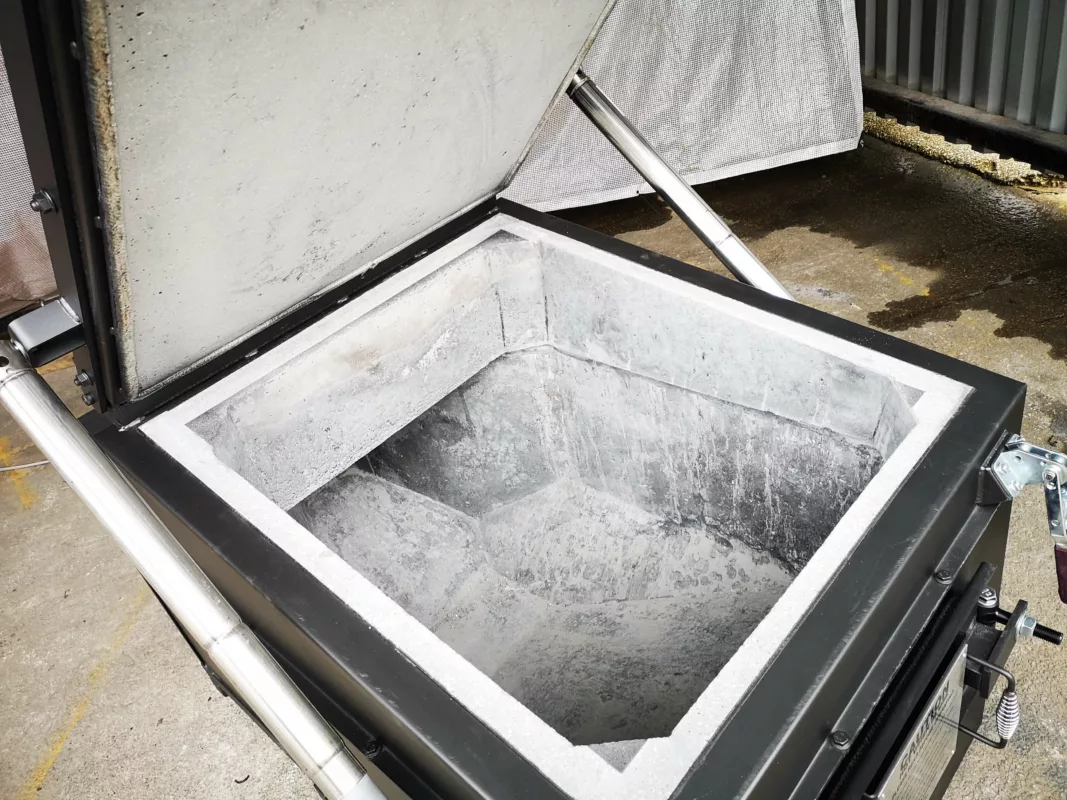

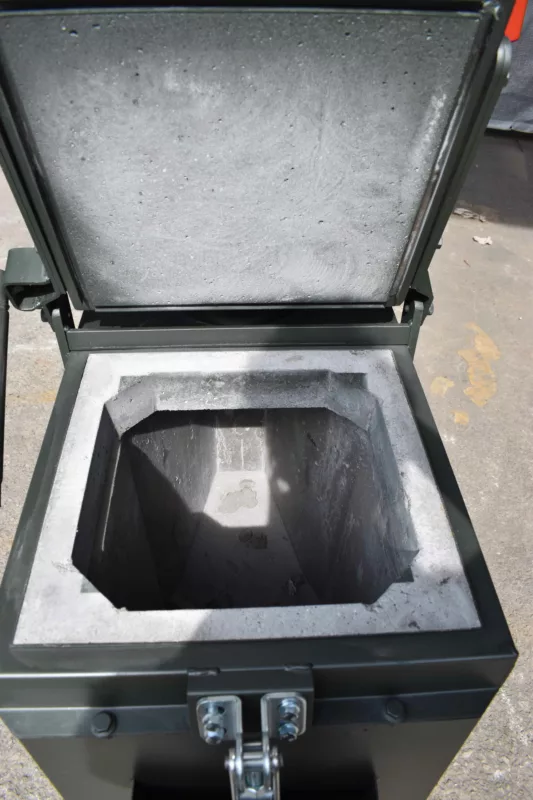

The i8-20G is one of the smallest general incinerators in our range. The top-loading design means liquids are well contained within this system during combustion.
Overview
The i8-20G General Incinerator is a simple, effective multi-purpose incinerator with suitability for disposing of general and medical waste due to its advanced secondary chamber technology with a gas retention time of 2.0 seconds to comply with stringent environmental standards.
Features
- Enhanced Coretex insulation
- Multi-zone temperature control
- Mobile options available
- CE2 Advanced control panel
- Small operating footprint
Applications
- Camps
- Military Operations
- OiI & Gas Facilities
- < 70 People Communities
- Industrial Waste < 300kg day
Technical Specifictions
Operational Specifications
Combustion Chamber Volume (m3): 0.18m3
Burn Rate*: up to 20kg per hour
Average Fuel Consumption: 7 – 9 ltrs p/h
Operational Temperature: > > 850°C
Gas Retention in Secondary Chamber: 2 secs
Temperature Monitoring: Yes
Average ash residue (%): 3%
Thermostatic Device: Yes
Physical Specifications
External Length (mm): 1070mm
External Width (mm): 670mm
External Height (mm): 4310mm
Door Size (mm): 490 x 490
Shipping Weight: 1230kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
Optional Extras
Configuration Choices
Hand-built in the UK
All our incinerators are hand-built in the UK by time-served welders and fabricators. Our award-winning design team are always on hand to offer their advice and technical know-how to ensure we get your project off the ground without delay.
We can also assist you in the preparation for your planning or permit application where required.
